51 45 181 Removing and installing/replacing bottom right trim for instrument panel

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Feed out bottom right instrument panel trim (2) in direction of arrow.

Disconnect plug connection of footwell light (3).

Remove bottom right instrument panel trim (2).

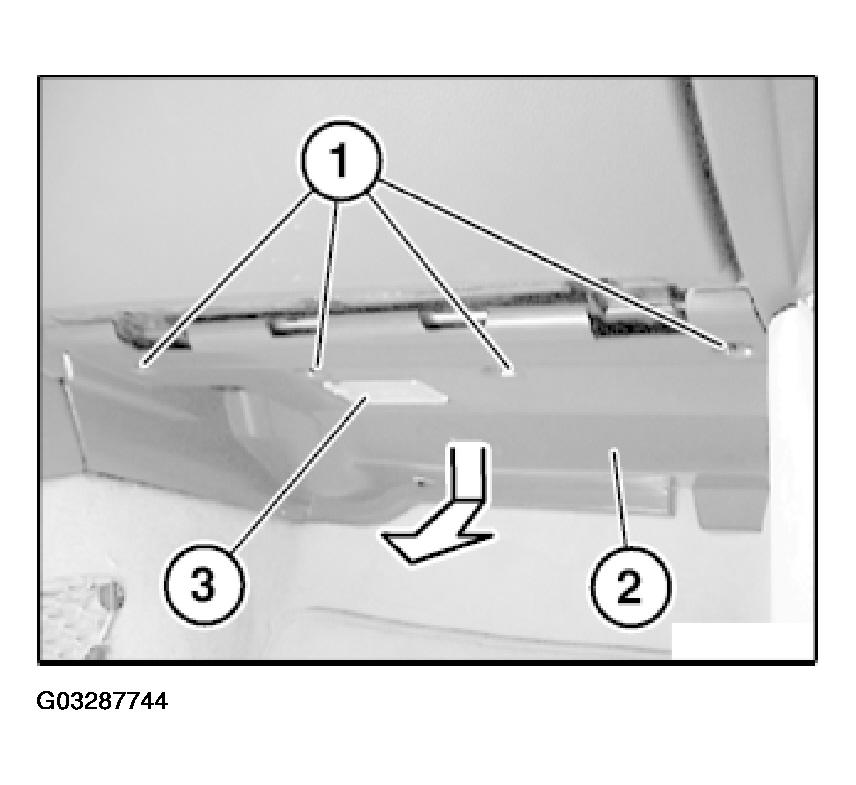

Fig 1: Removing Bottom Right Trim For Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mounts (1) and guide (2) of bottom right instrument panel trim (3) must not be damaged.

Replacement:

Remove footwell light (4).

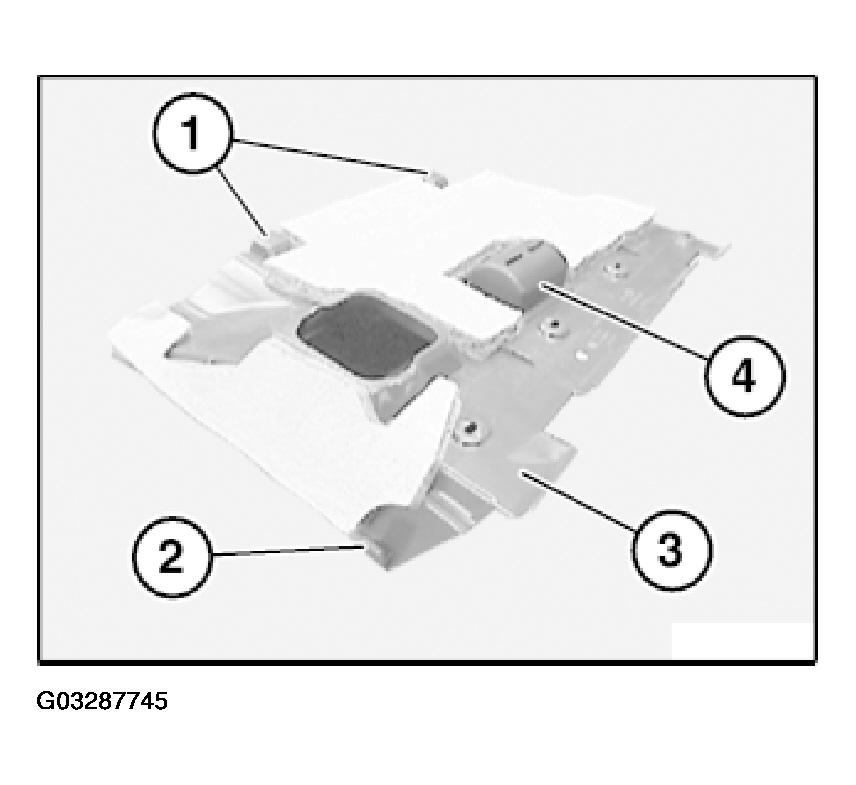

Fig 2: Identifying Mounts And Guide Of Bottom Right Instrument Panel Trim
Courtesy of BMW OF NORTH AMERICA, INC.
