51 45 115 Removing and installing speaker frame on panel for instrument panel at top

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63)

00 9 341

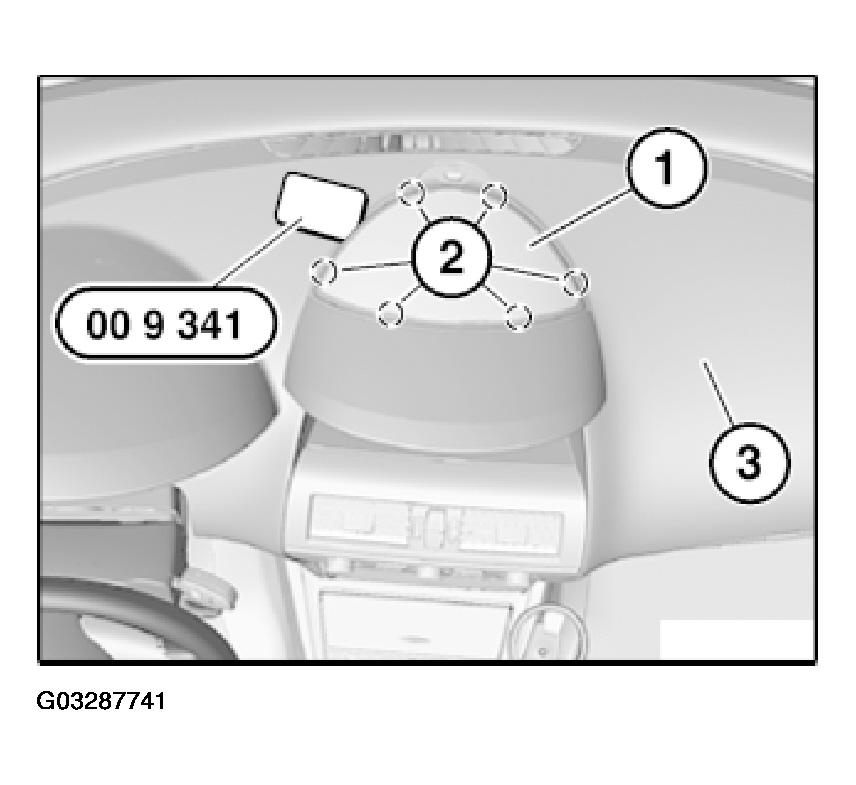

Unclip speaker frame (1) with special tool 00 9 341 at points (2).

Fig 1: Uncliping Speaker Frame (1) With Special Tool 00 9 341 At Points (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Raise speaker frame (1) slightly from instrument panel (3) and disconnect plug connection at solar sensor.

Remove speaker frame (1).

Installation:

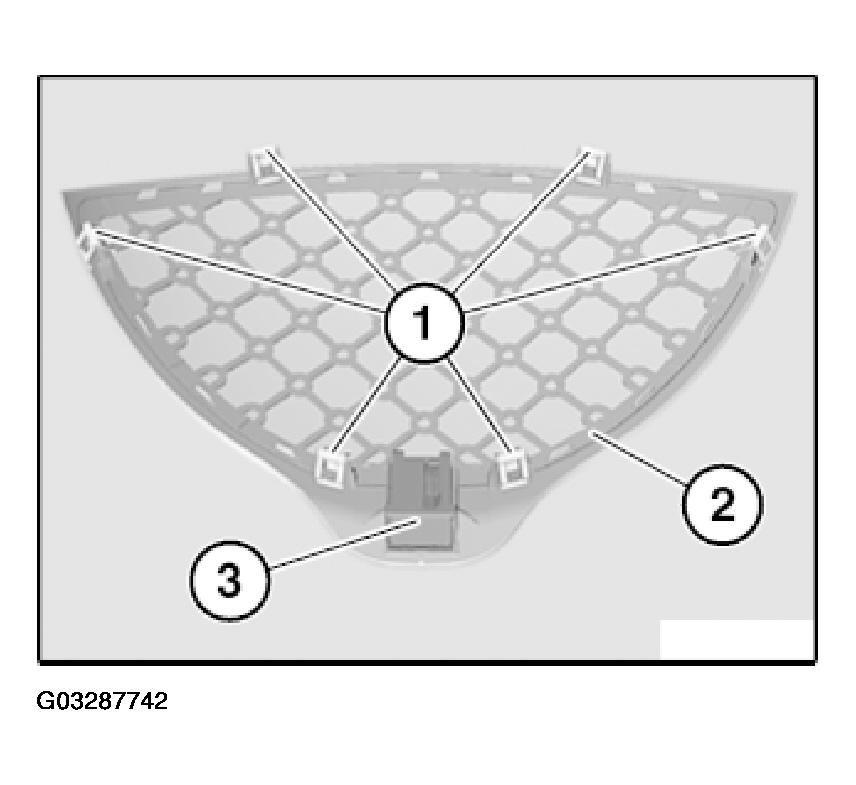

Retainers (1) on speaker frame (2) must not be damaged.

Replacement:

Remove solar sensor (3).

Fig 2: Removing Solar Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
