51 45 031 Replacing instrument panel trim

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove instrument panel trim
Remove right fresh-air grill

Unclip both heated-air duct trims (1) in direction of arrow and remove from instrument panel trim (3).

Unclip passenger-side vent (2) in direction of arrow and remove from instrument panel trim (3).

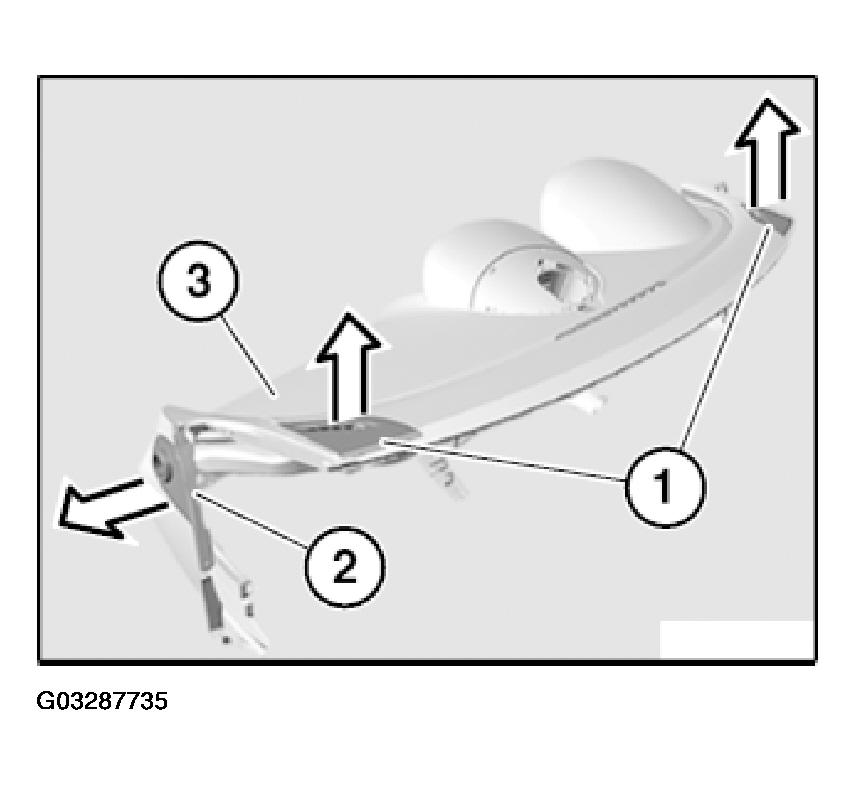

Fig 1: Removing Passenger Side Vent From Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (2).

Remove top steering column cover (1) in direction of arrow from instrument panel trim (3).

Release screws (4).

Remove driver's-side air duct (5) from instrument panel trim (3).

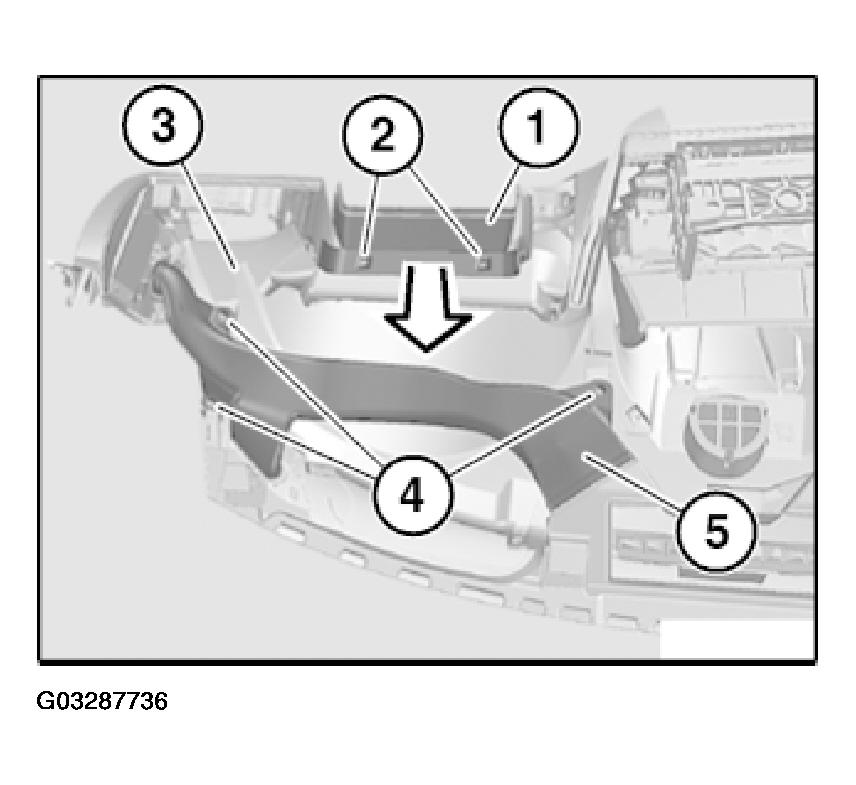

Fig 2: Removing Top Steering Column Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove passenger-side air duct (2) from instrument panel trim (3).

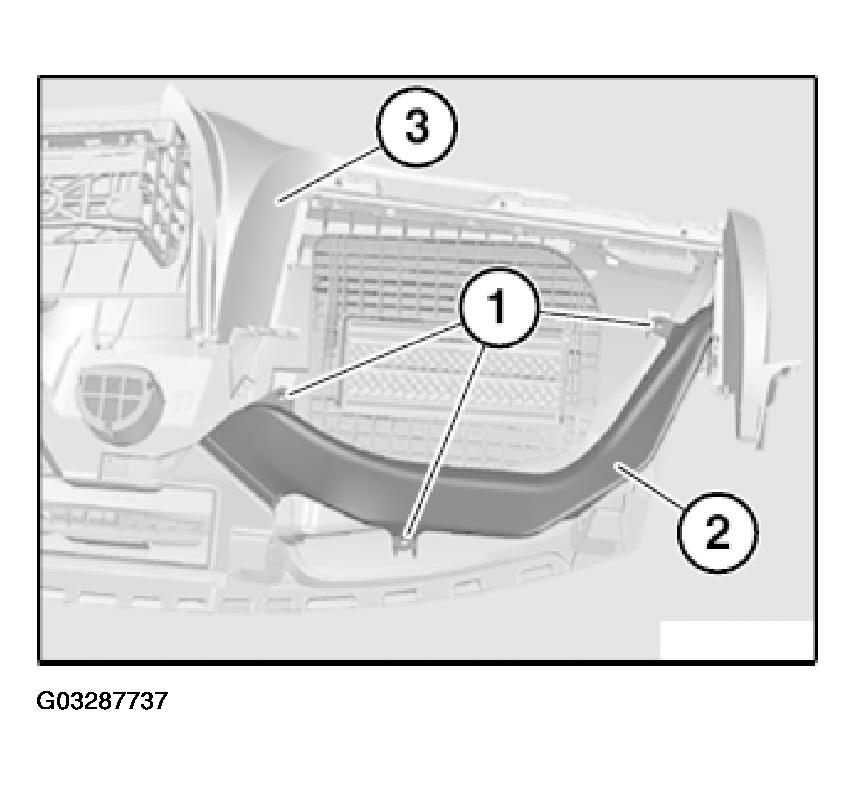

Fig 3: Removing Passenger-Side Air Duct From Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove clips (1).

NOTE: Replace damaged clips (1):

Turn clip (1) with screwdriver to left by approx. 60°.
Lever out clip (1) from below.

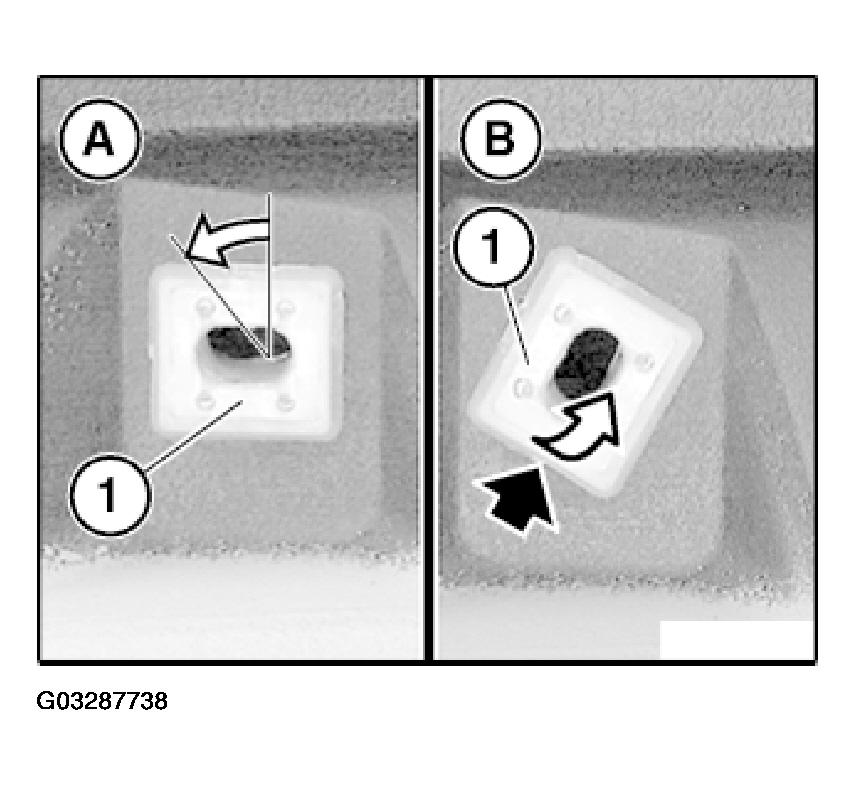

Fig 4: Turning And Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove instrument panel function carrier (2) from instrument panel trim (3).

Removal all metal nuts (4) from instrument panel trim (3).

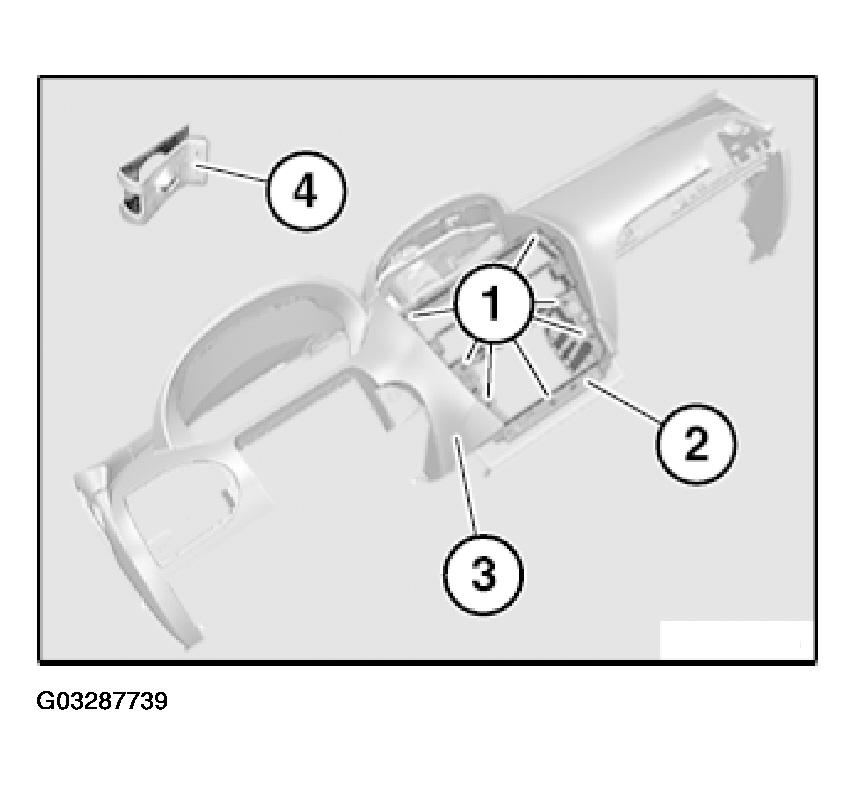

Fig 5: Removing Instrument Panel Function Carrier From Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Version with head-up display:

Release screws (1).

Remove head-up display frame (2) in direction of arrow from instrument panel trim (3).

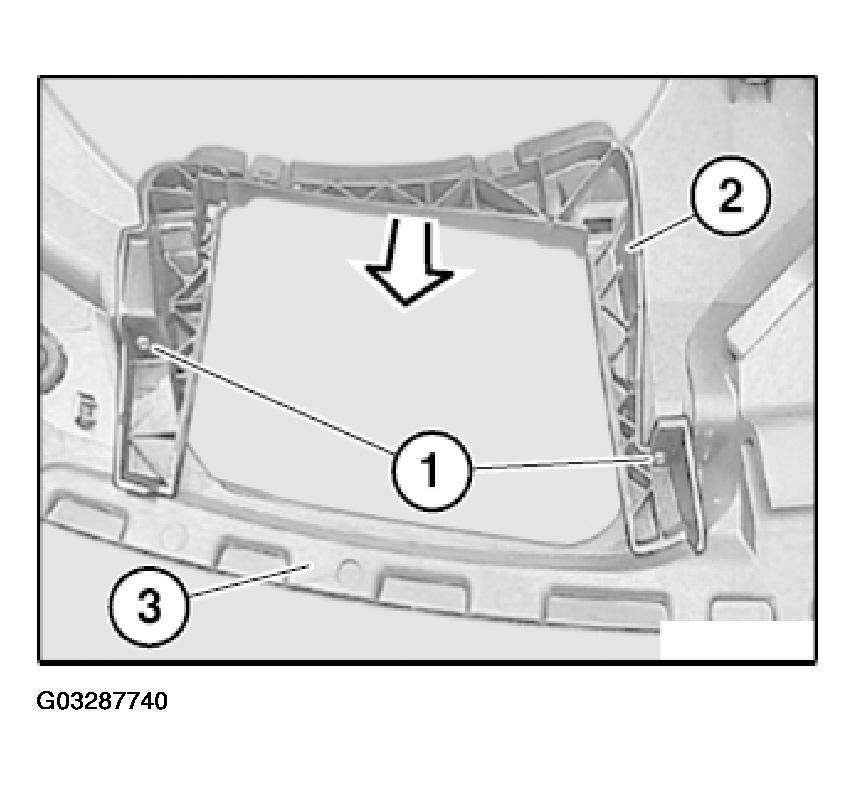

Fig 6: Removing Head-Up Display Frame From Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.
