51 23 212 Removing and installing/replacing cable for hood/bonnet locks (to locks)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left/right hood/bonnet locks

Release cable (1) from cable holders (2).

Feed cable (1) out of carrier (3).

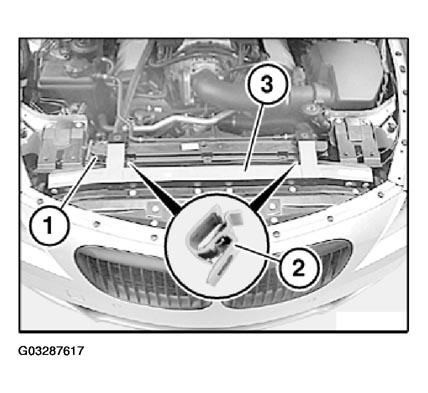

Fig 1: Removing And Installing/Replacing Cable For Hood/Bonnet Locks (To Locks)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace cable holders (2).
