51 23 211 Removing and installing/replacing cable for front engine hood locks (to passenger compartment)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect cable for hood/bonnet locks
Remove lower section of microfilter housing
Remove trim panel for pedal assembly
Remove footwell side trim panel on A-pillar

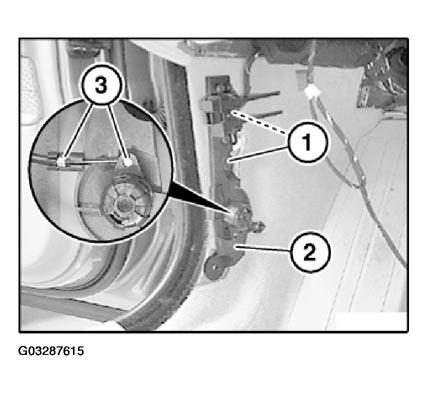

Release screws (1).

Remove fixture (2) and feed out Bowden cable (3).

Fig 1: Removing Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

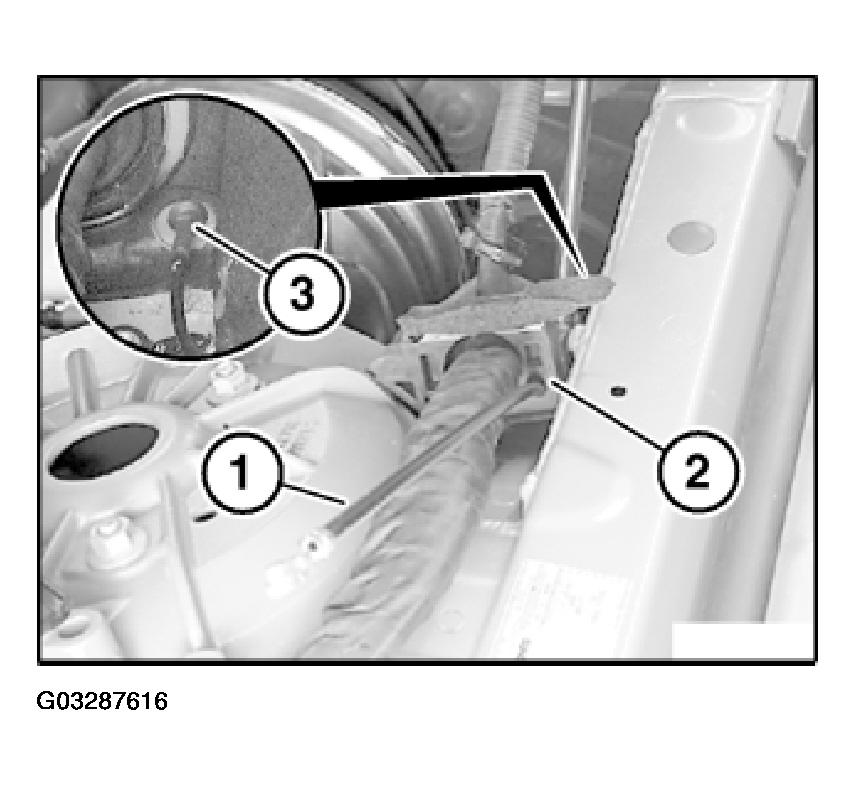

Feed Bowden cable (1) out of grommet (2).

Carefully feed Bowden cable (1) with grommet (3) out of vehicle interior.

IMPORTANT: Make sure grommets (2 and 3) are correctly seated (water ingress).

Fig 2: Removing Bowden Cable Out Of Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lay Bowden cable (1) without kinks.
