51 33 000 Removing and installing / replacing power window unit in left or right front door

Necessary preliminary tasks:

• Remove door window glass

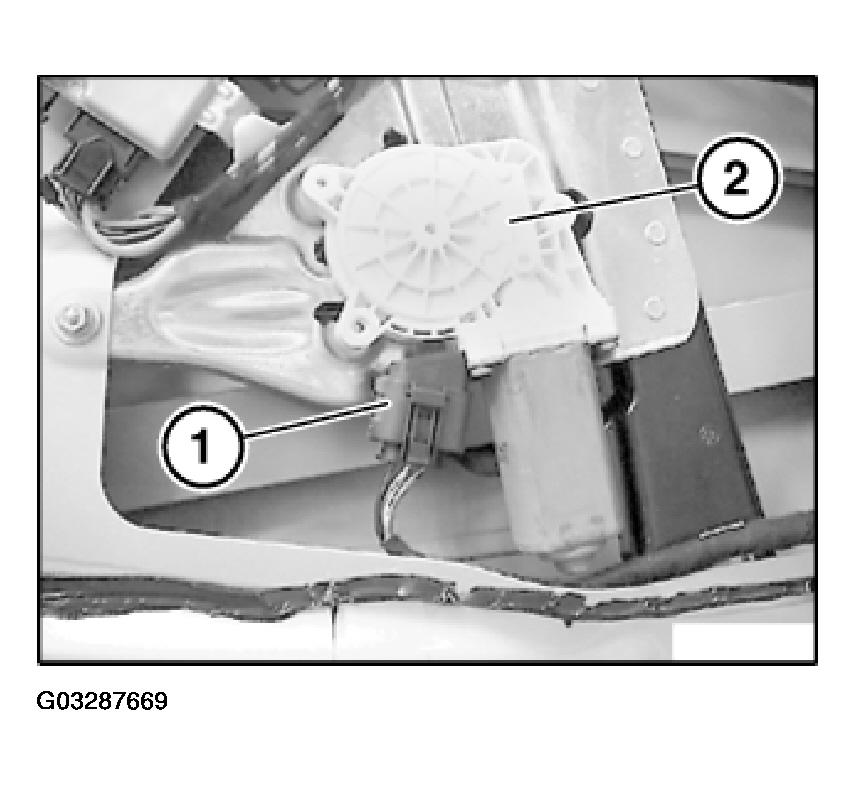

Fig 1: Disconnecting Plug Connection From Power Window Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover (1) and release nuts (2) underneath. Unscrew nuts (3).

Installation:

Tightening torque, refer to 51 33 4AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 645CI .

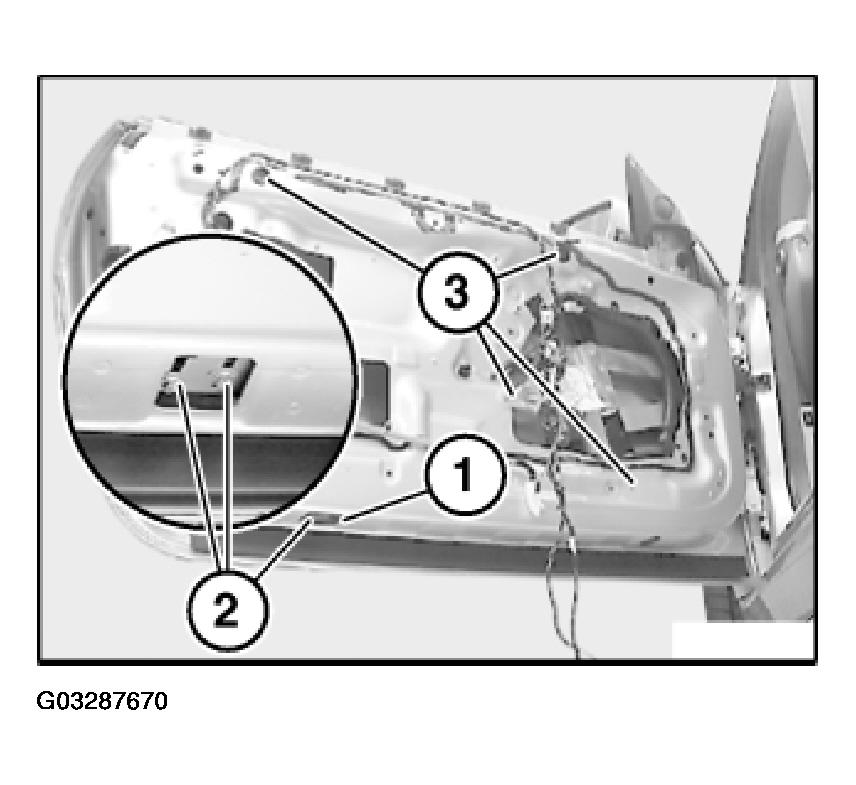

Fig 2: Levering Out Cover And Release Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip power window unit (3) at clip (1 and 2).

Installation:

Clips (1 and 2) must not be damaged.

Make sure clips (1 and 2) are in correct position.

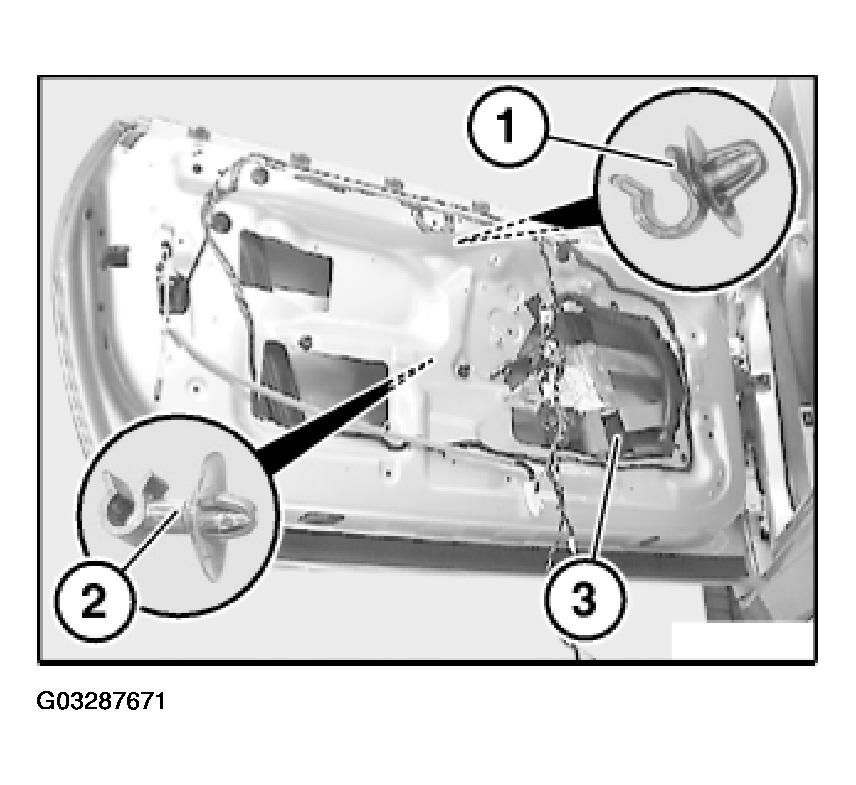

Fig 3: Identifying Correct Positioning Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of power window unit

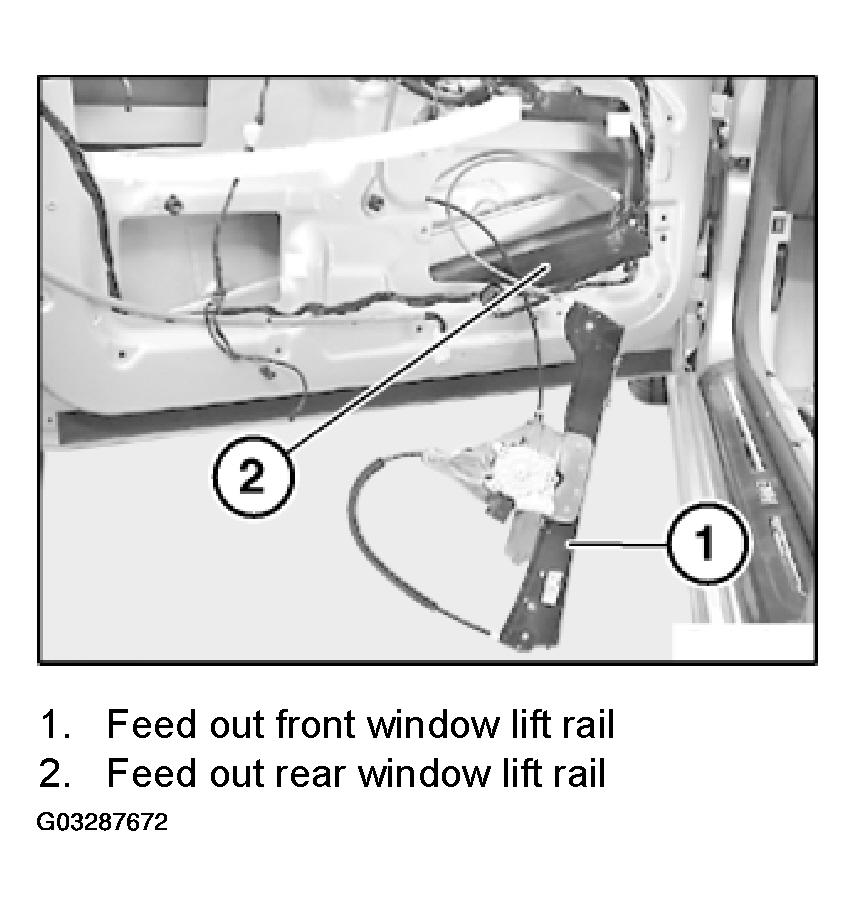

Fig 4: Removing Front And Rear Window Lift Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert adjusting plate (1) on rear window lift rail (3) correctly into guide on window lift support (2).

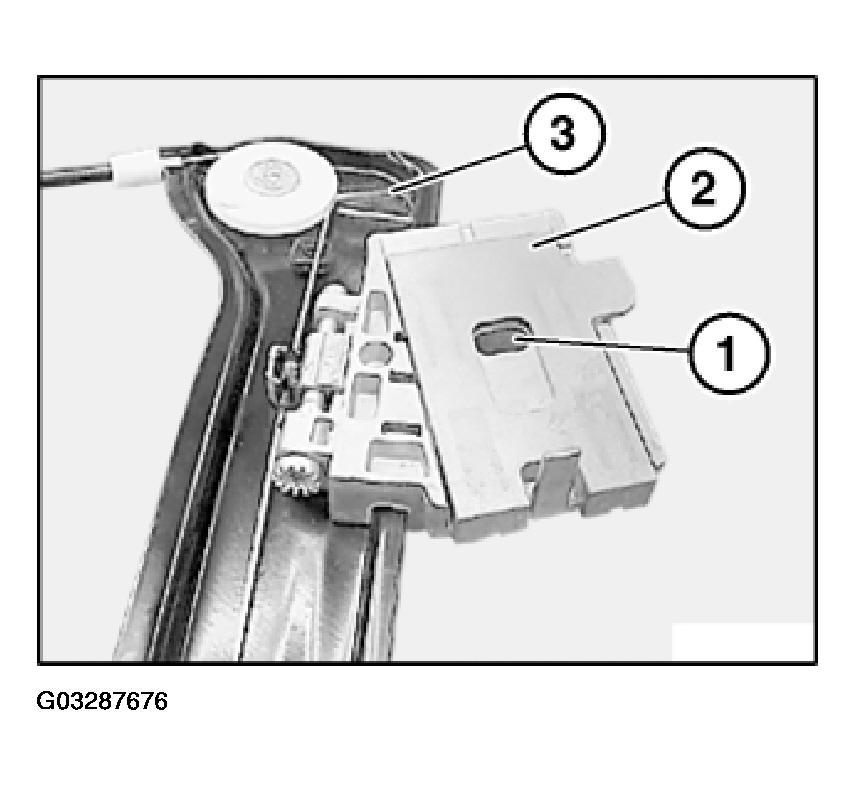

Fig 5: Inserting Adjusting Plate On Rear Window Lift Rail Correctly Into Guide On Window Lift Support

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and detach flat motor (2).

Tightening torque, refer to 51 33 4AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 645CI .

Installation:

Carry out normalization of power window unit.

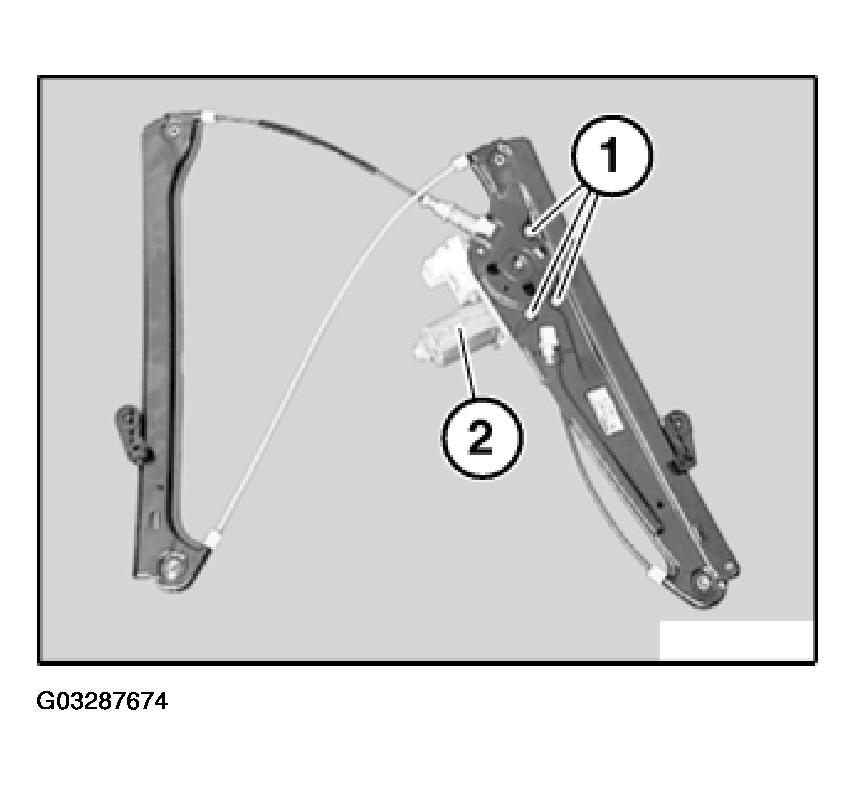

Fig 6: Detaching Flat Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Basic settings of power window unit:

Height adjustment via wedge (1).

Measurement (A)

=

3 ... 4 mm

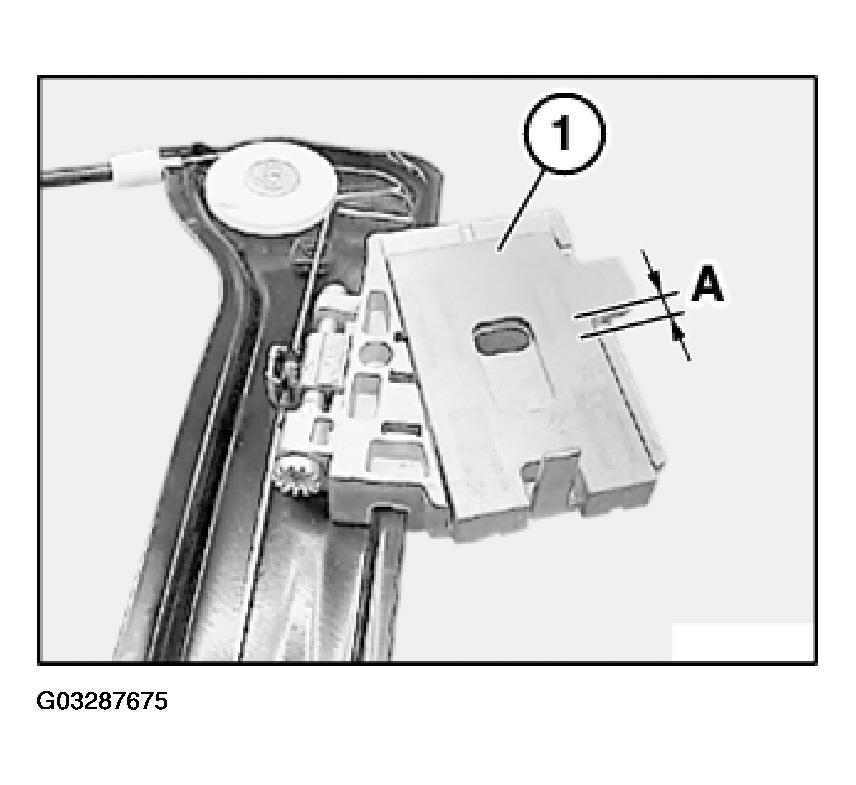

Fig 7: Adjusting Height Via Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Longitudinal adjustment via elongated hole (1) of wedge (2) on power window unit (3).

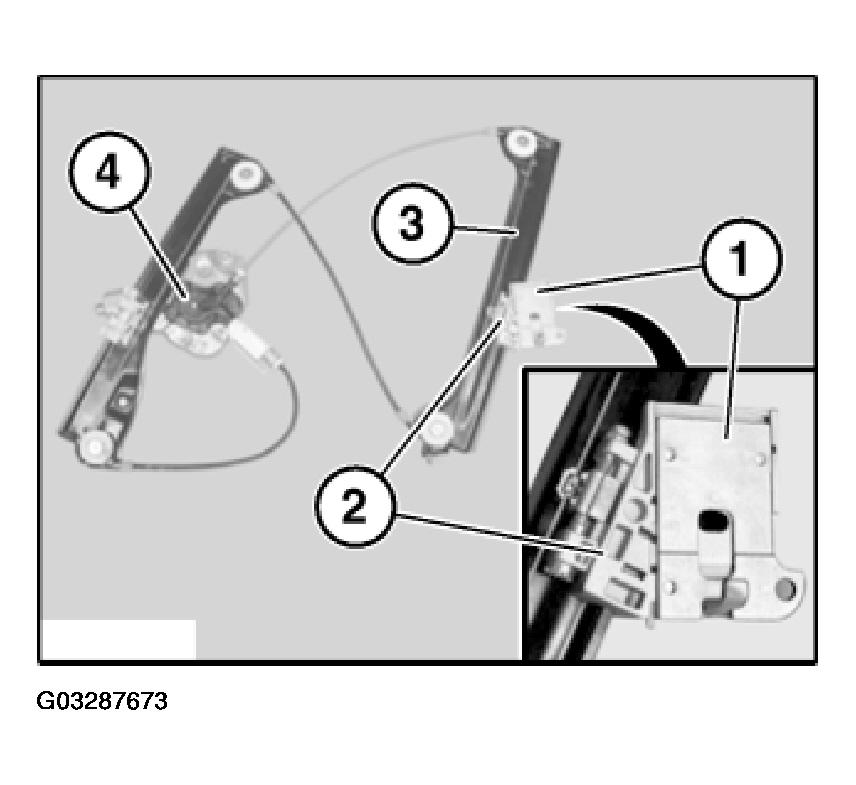

Fig 8: Identifying Longitudinal Adjustment Via Elongated Hole Of Wedge On Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.
