51 41 001 Replacing front left or right door trim panel
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove airbag module in front door.
- Remove inside door opener.
- Remove speaker.

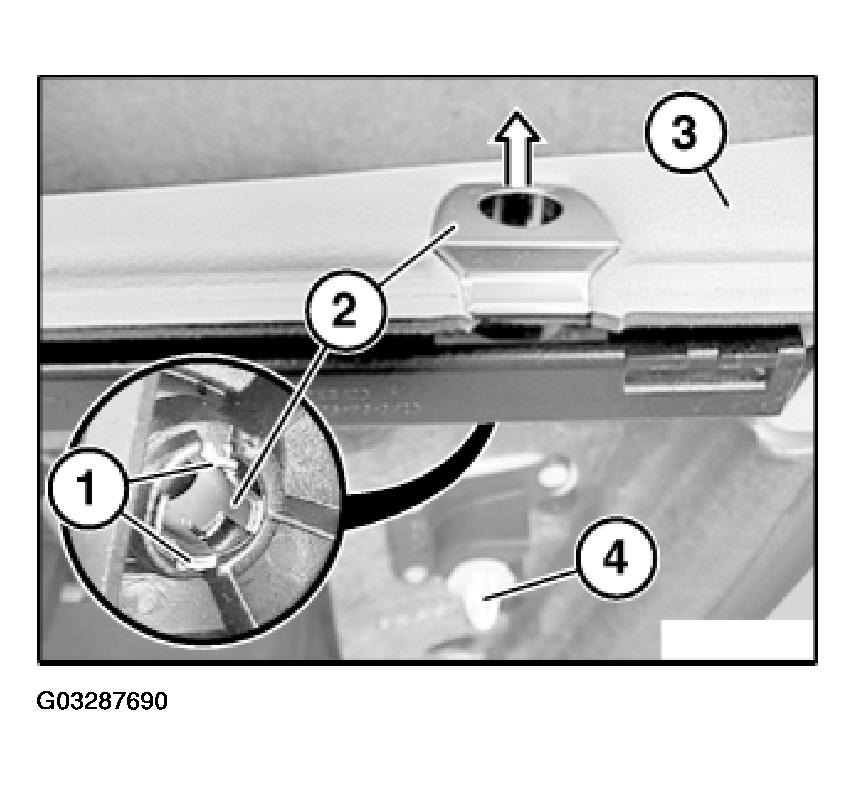

Unlock catches (1) and remove trim (2) in direction of arrow from door trim (3).
Replace all clips (4).
