51 21 370 Removing and installing/replacing cover (seal) on front door at bottom left or right

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Detach cover (1) in direction of arrow from front door (2).

Installation:

Start clipping in cover (1) at rear (B-pillar) (risk of damage).

Clip clips of cover (1) correctly into bores (3).

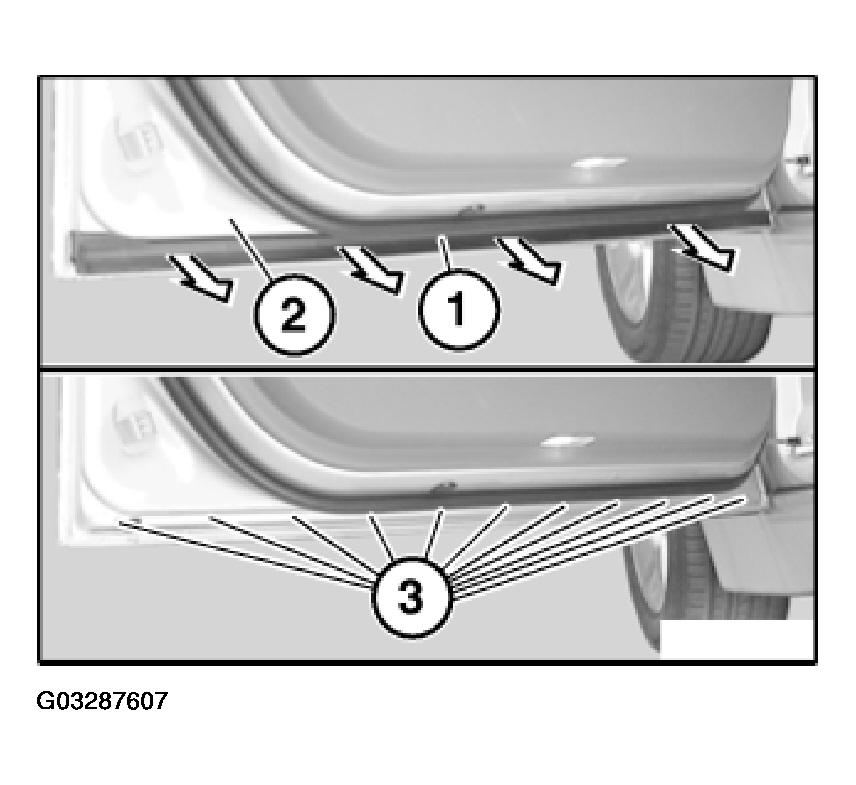

Fig 1: Removing Cover (Seal) On Front Door At Bottom Left Or Right

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) of cover (2) must not be damaged.

Cover (2) has an aluminium insert (3).

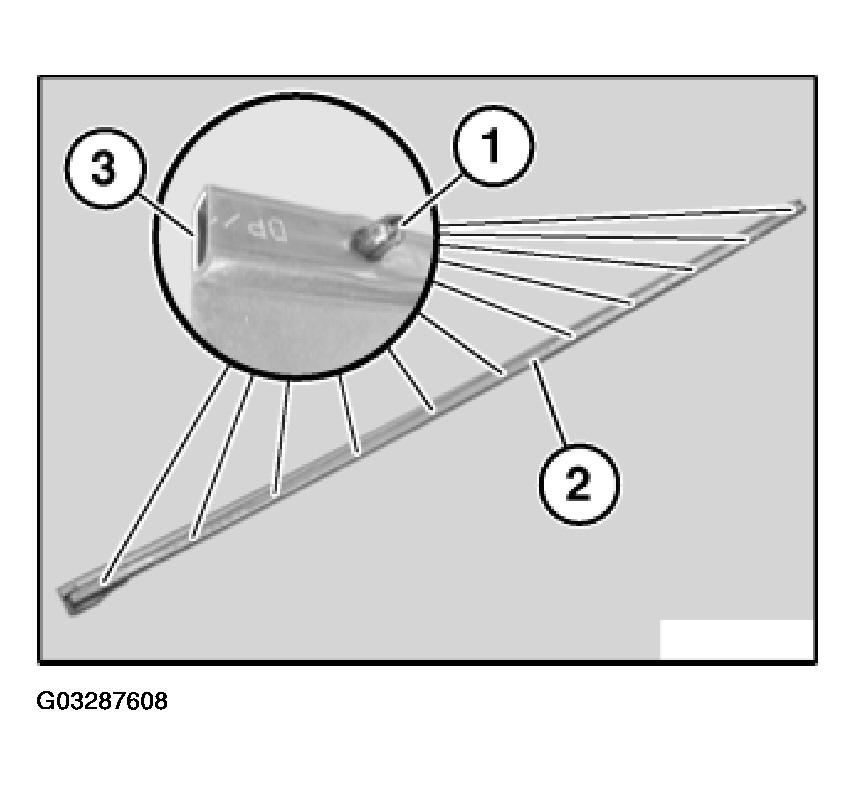

Fig 2: Installing Clips Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Only press on clips (1) when installing otherwise cover (2) will become uneven.
