51 21 330 Removing and installing/replacing window cavity cover strip on inner front door

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel

IMPORTANT: Cover strip comes in one part and runs up to bottom edge of door.

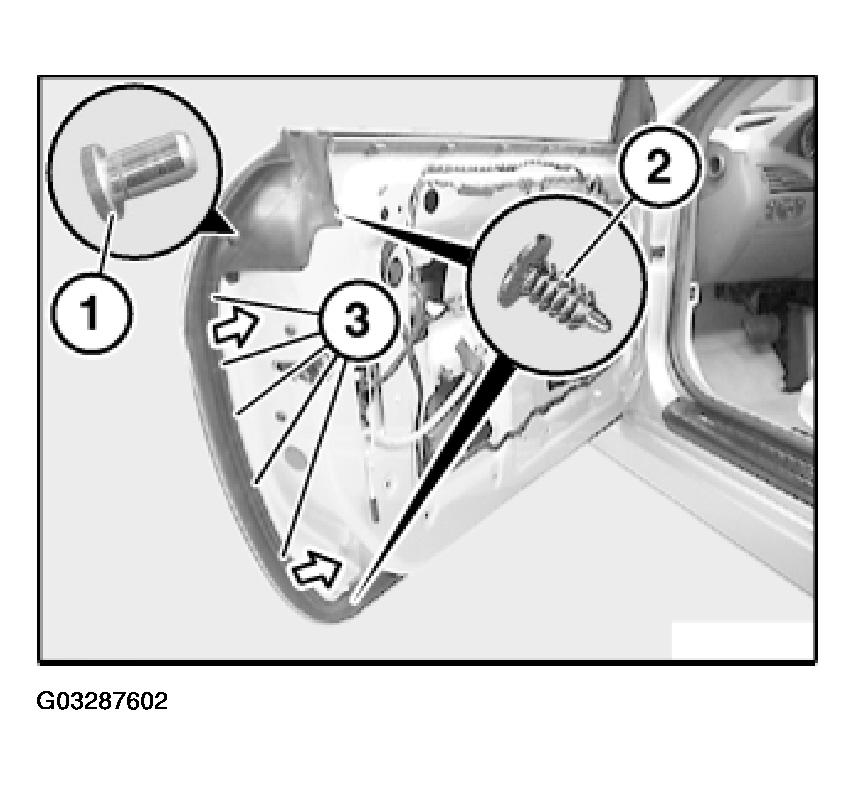

Unclip clips (1 and 2).

Detach cover strip (3) in direction of arrow from front door.

Installation:

If necessary, replace faulty clips (1 and 2).

Fig 1: Identifying Clips

G03287602

Courtesy of BMW OF NORTH AMERICA, INC.

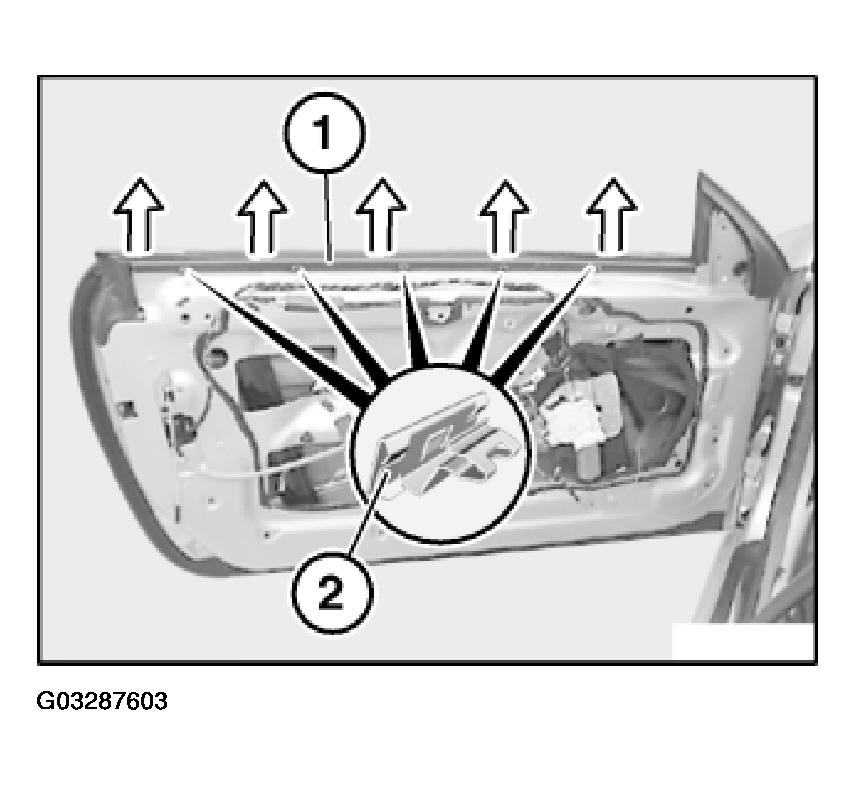

Detach cover strip (1) towards top.

Installation:

If necessary, replace faulty clips (2).

Fig 2: Detaching Cover Strip Towards Top

G03287603

Courtesy of BMW OF NORTH AMERICA, INC.

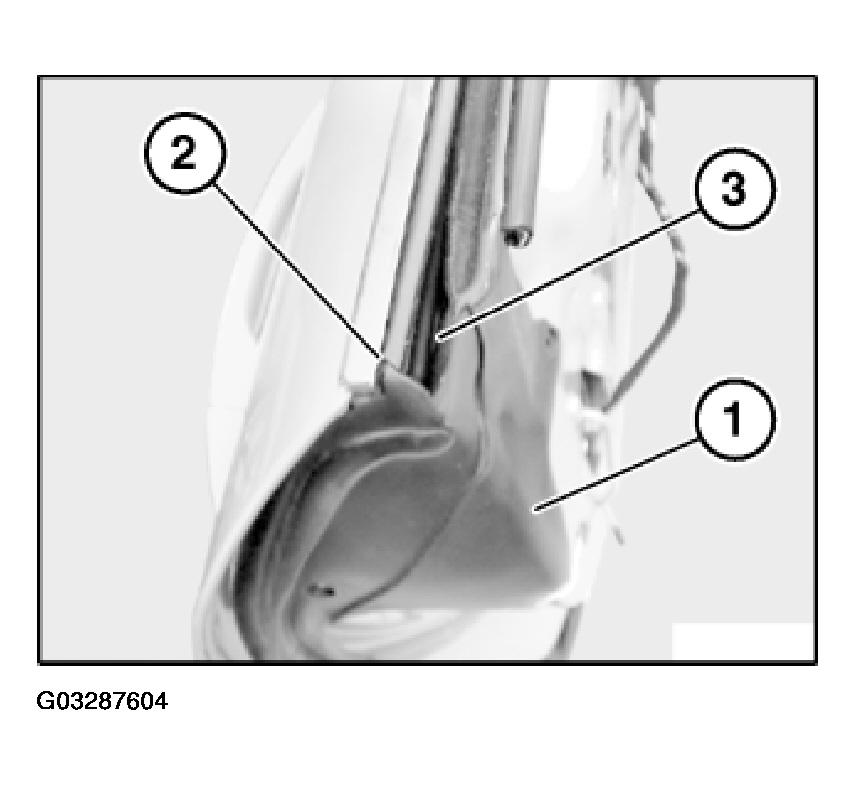

Installation:

Make sure inner cover strip (1) is in correct installation position in relation to outer cover strip (2) and door window glass (3).

Fig 3: Installing Window Cavity Cover Strip

G03287604

Courtesy of BMW OF NORTH AMERICA, INC.

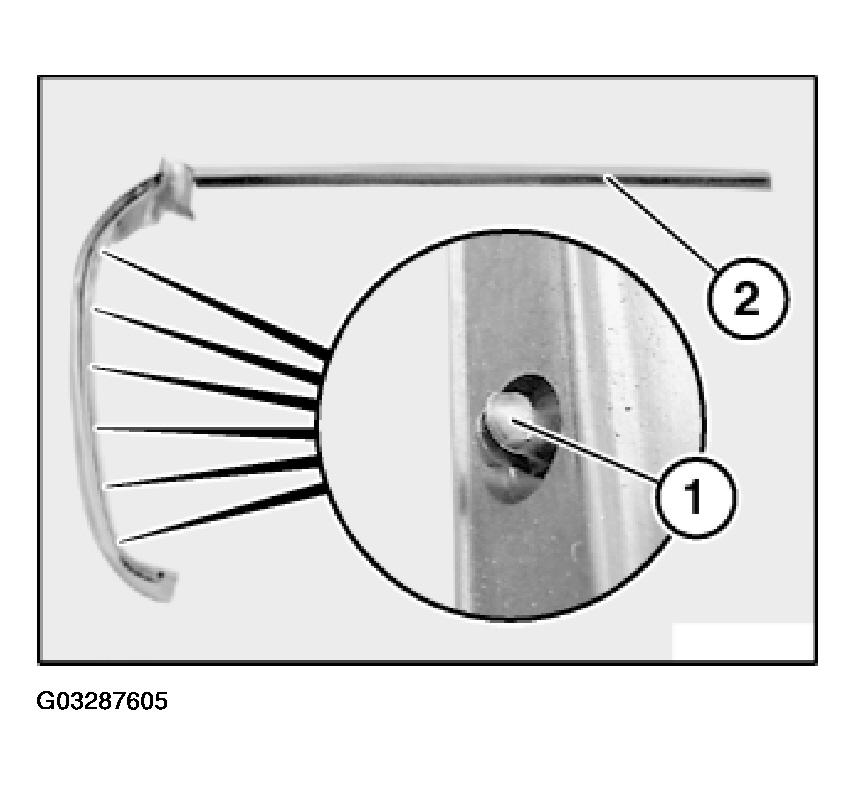

Installation:

Catches on cover strip (1) must not be damaged.

Fig 4: Installing Catches On Cover Strip

G03287605

Courtesy of BMW OF NORTH AMERICA, INC.

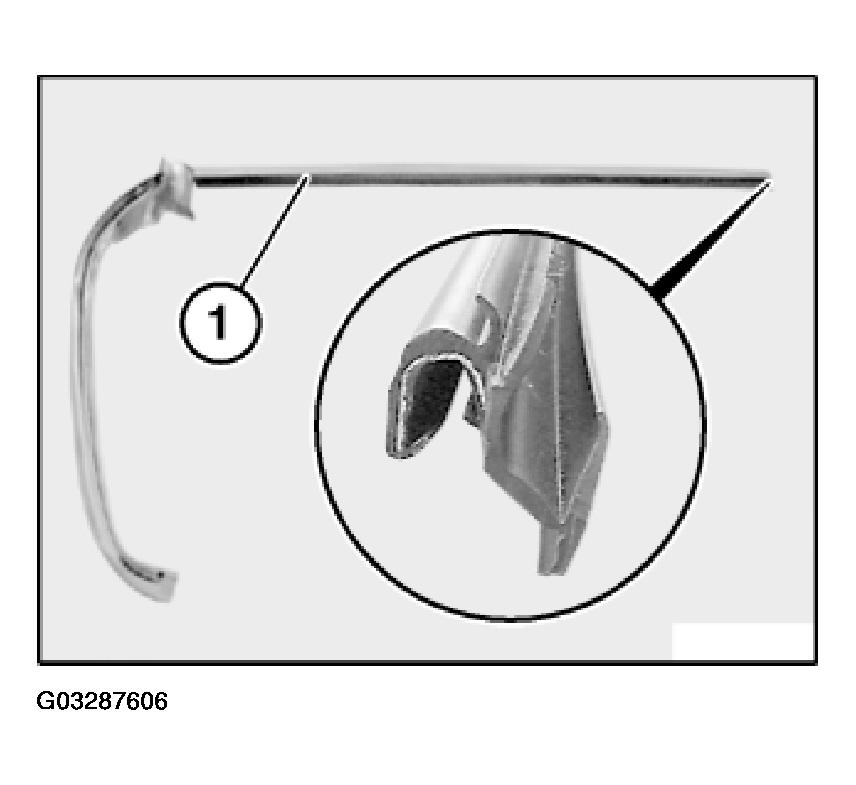

Installation:

Coat cover strip (1) with water before fitting.
Start with installation at front.

Fig 5: Identifying Cover Strip

G03287606

Courtesy of BMW OF NORTH AMERICA, INC.
