51 21 300 Removing and installing or replacing window recess cover strip on outside of left or right front door

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63) .

00 9 311

Attach adhesive tape (1) below window cavity cover strip (2) (risk of damage).

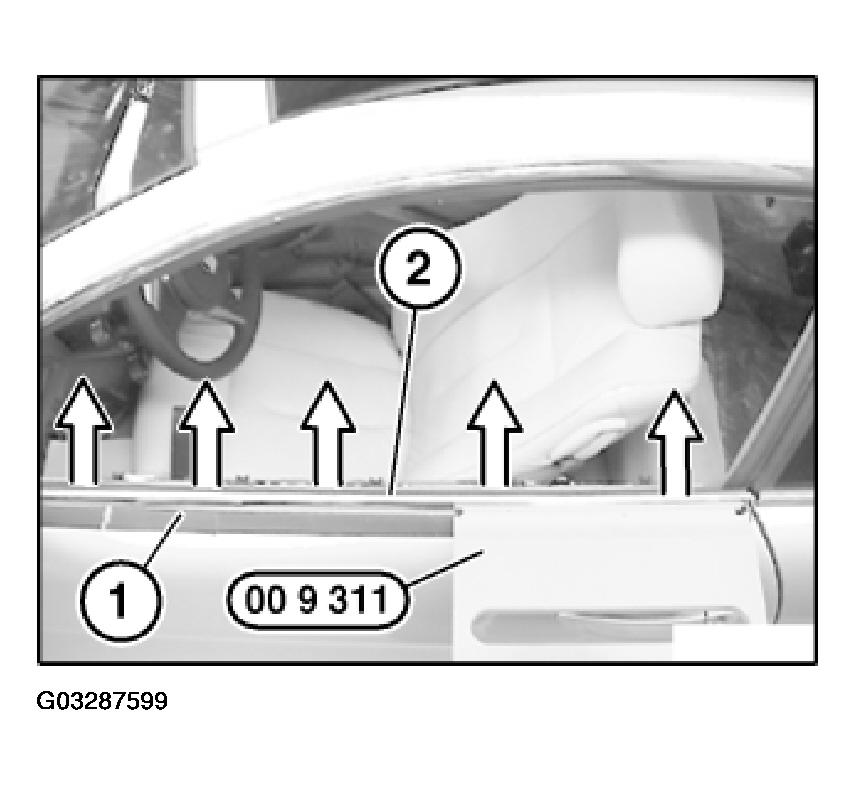

Using special tool 00 9 311 (beginning at front proceeding to rear), lever out window cavity cover strip (1).

Fig 1: Removing Window Cavity Cover Strip Using Special Tool 00 9 311

Courtesy of BMW OF NORTH AMERICA, INC.

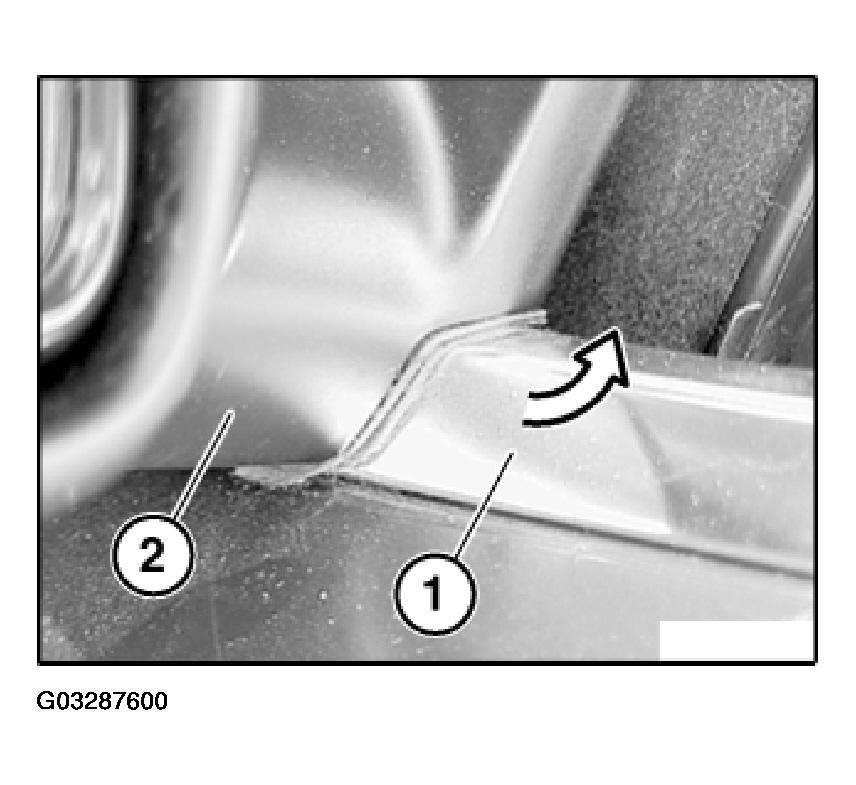

Pull window cavity cover strip (1) out of mirror (2) in direction of arrow.

Installation:

Coat window cavity cover strip (1) with water before fitting.

Window cavity cover strip (1) must be flush at rear to door edge.

Fig 2: Removing Window Cavity Cover Strip Out Of Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

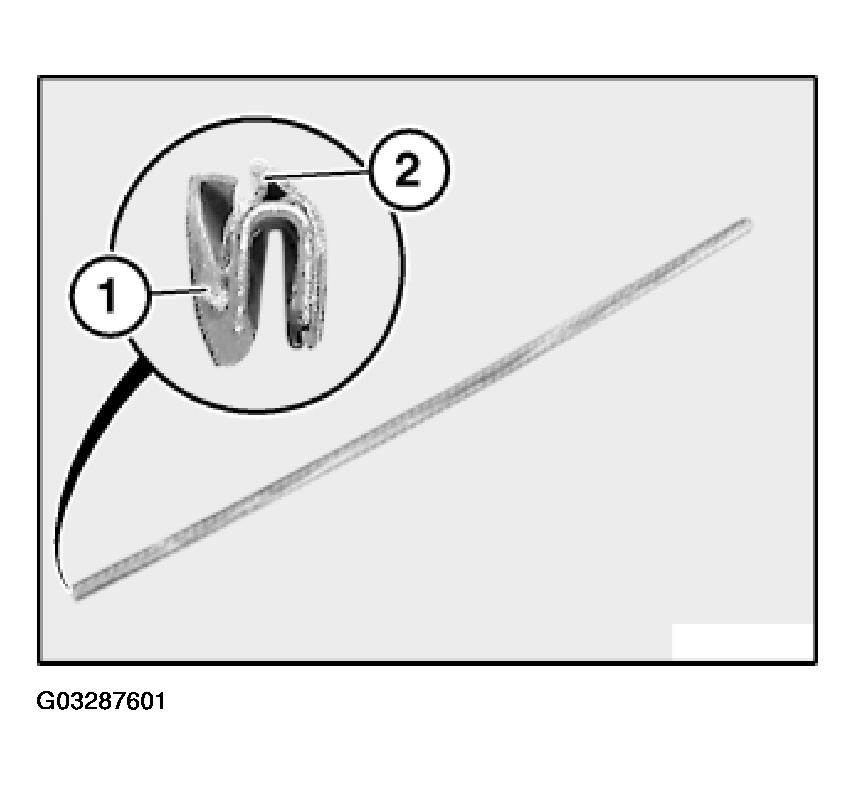

Seal (1) must be correctly fitted in chrome strip (2).

Fig 3: Fitting Seal In Chrome Strip

Courtesy of BMW OF NORTH AMERICA, INC.
