51 21 280 Removing and installing or replacing door retainer on left or right front door

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close door windows
Remove sound insulation in front area only

Unclip clips (1) on cable duct (2).

Remove cable duct (2) from inner door panel (3).

Release screw (4) on window guide (5).

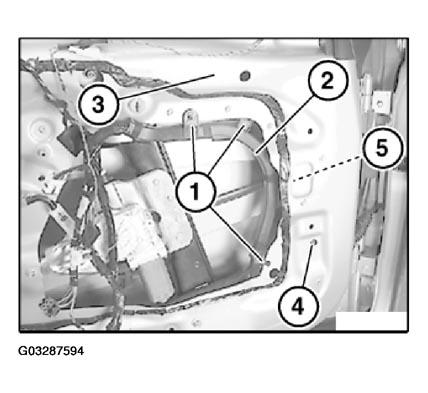

Fig 1: Removing Cable Duct From Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) on cable duct (2) must not be damaged.

NOTE: Secure front door against falling closed.

Lever out seal (1).

Unfasten screws (2 and 3).

Fig 2: Removing Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Remove door retainer (1) via cutout (2).

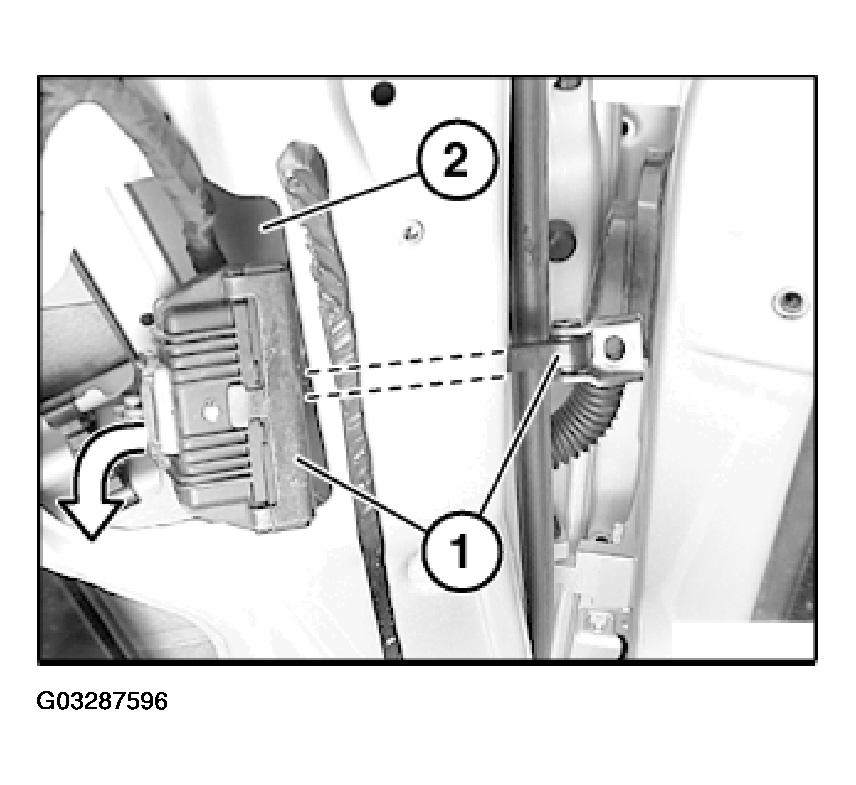

Fig 3: Removing Door Retainer Via Cutout

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of door retainer (3) must not be damaged:

Hinge
Thread

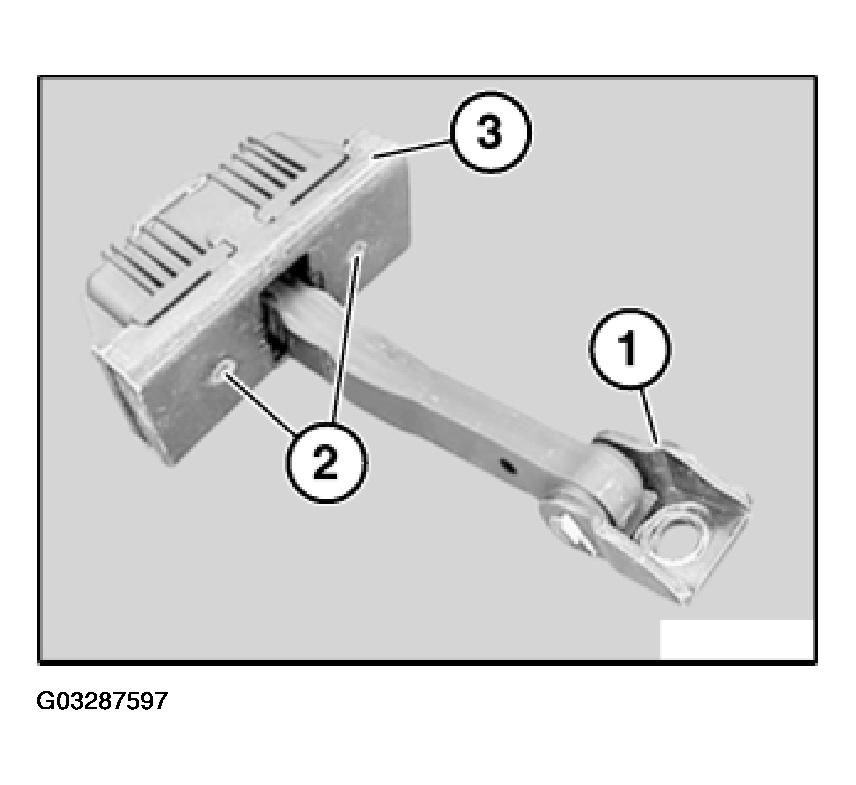

Fig 4: Identifying Door Retainer Parts
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal (1) must not be damaged.

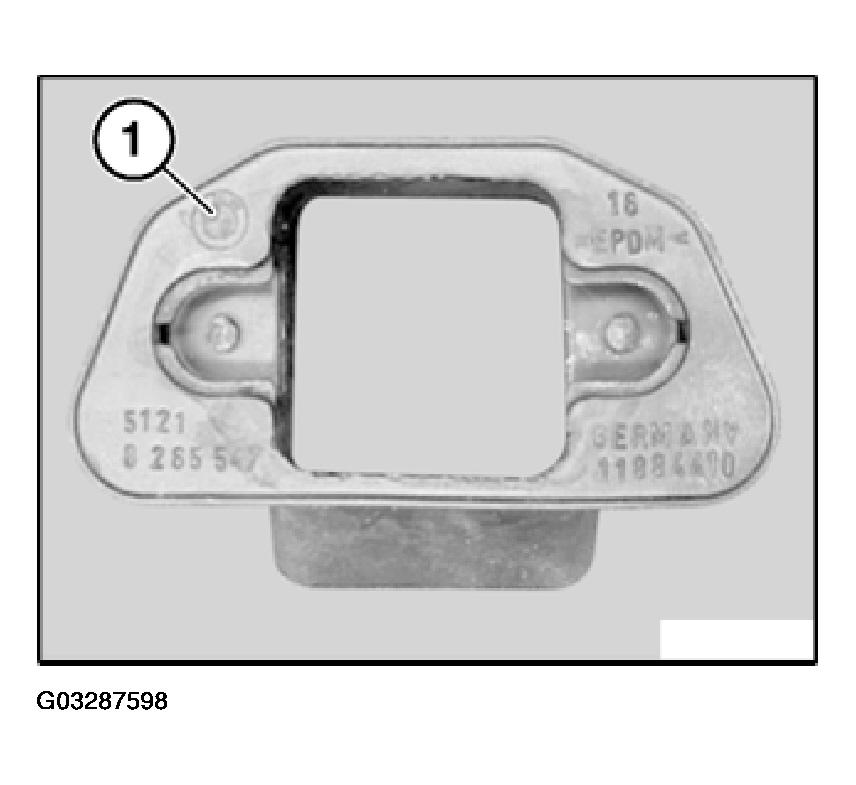

Fig 5: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.
