51 21 233 Removing and installing/replacing Bowden cable for outside door handle on left or right front door

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove carrier for outside door handle

Lever holder (2) out of catch (3).

Disconnect Bowden cable (1) from fixtures (4 and 5) and detach from carrier (6).

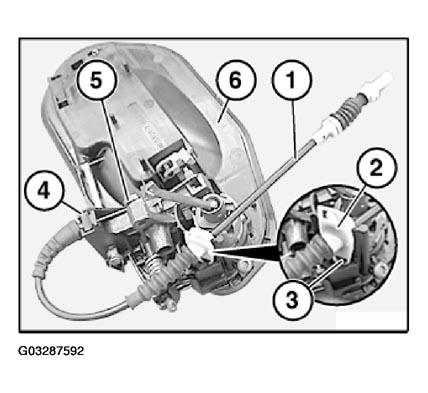

Fig 1: Removing And Installing/Replacing Bowden Cable For Outside Door Handle On Left Or Right Front Door

Courtesy of BMW OF NORTH AMERICA, INC.
