51 21 225 Removing and installing or replacing inside door opener in left or right front door

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel

Lever door opener (1) in direction of arrow out of door trim panel (2).

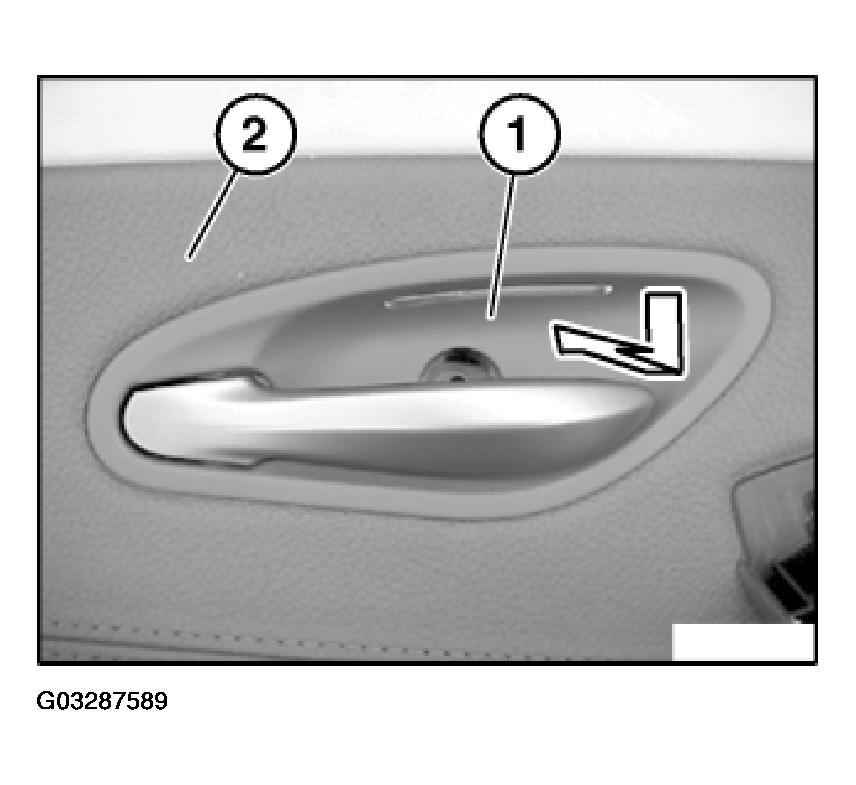

Fig 1: Removing Door Opener From Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unclip handle light (2) from catches (1).

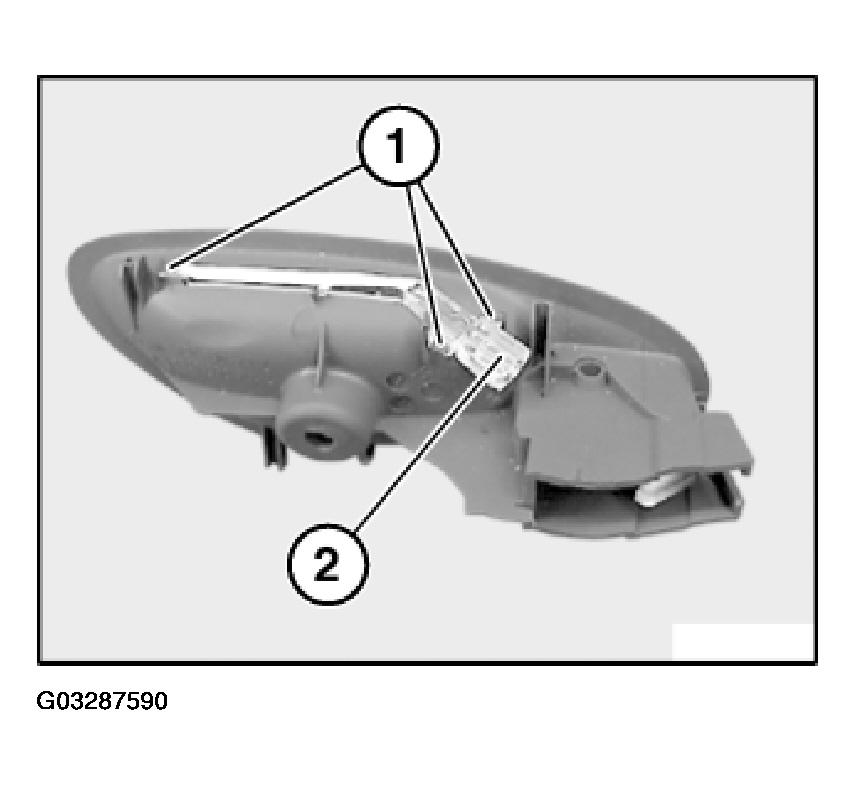

Fig 2: Unclipping Handle Light From Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) must not be damaged

Installation:

Fixtures (1) on door opener (2) must not be damaged.

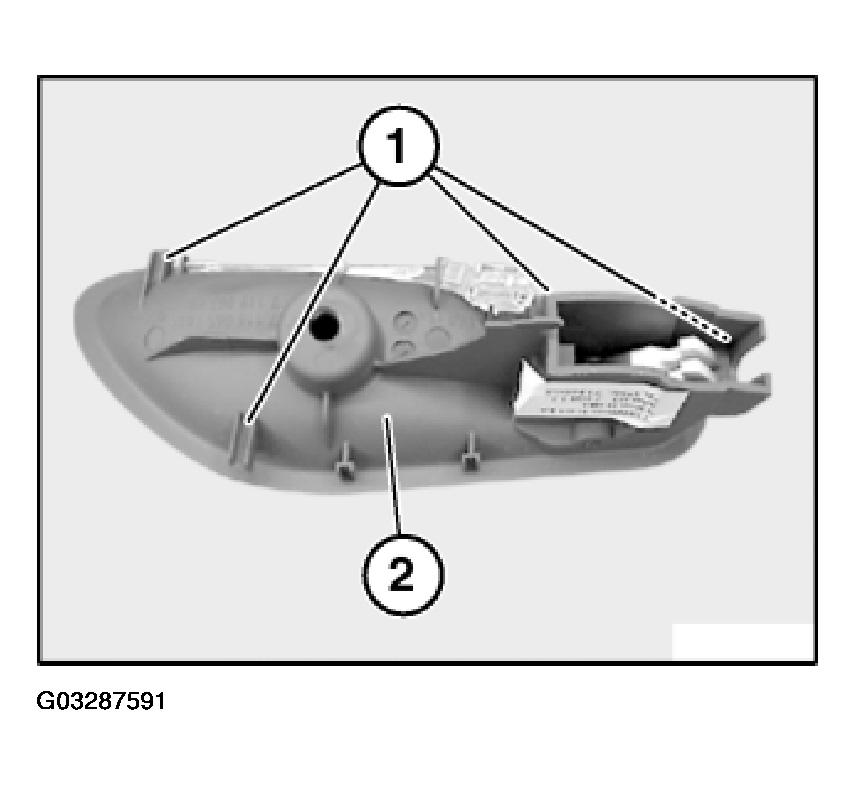

Fig 3: Identifying Fixtures On Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.
