51 21 180 Removing and installing/replacing cover on outside handle

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove outside handle

2-door Models:

Remove plate (2).

Fig 1: Removing Plate (2-Door Models)

Courtesy of BMW OF NORTH AMERICA, INC.

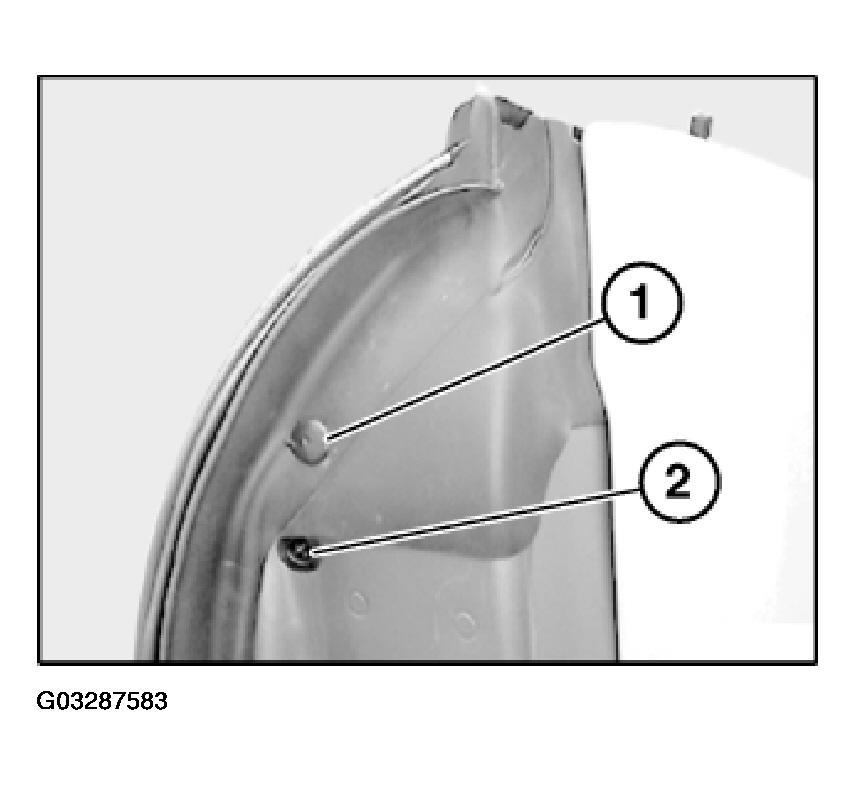

4-door Models:

Remove plate (2).

Fig 2: Removing Plate (4-Door Models)

Courtesy of BMW OF NORTH AMERICA, INC.

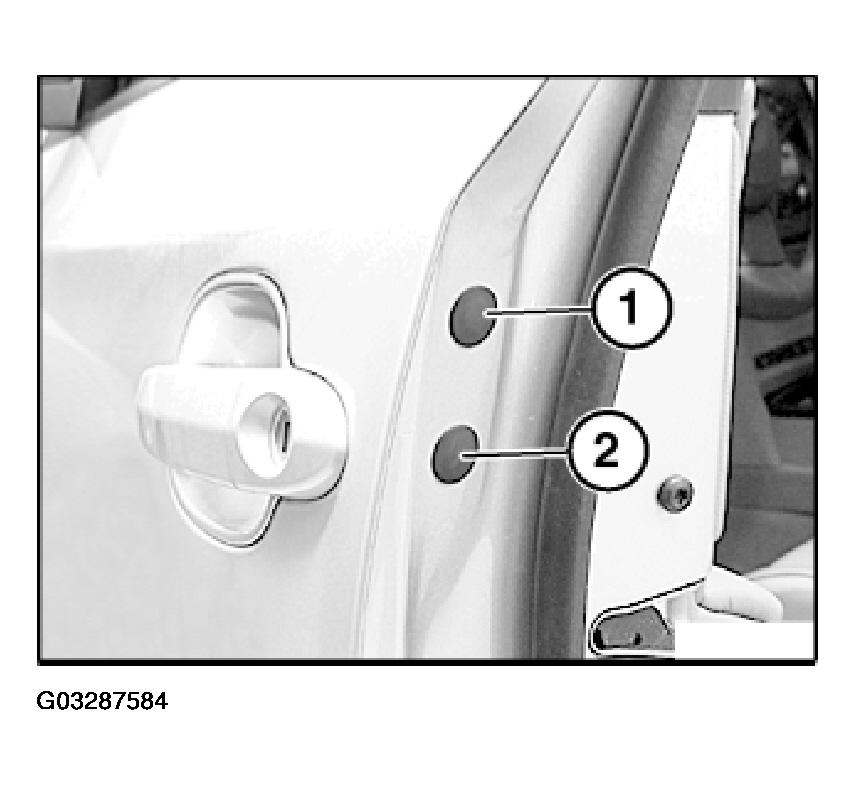

NOTE: Protect bore (1) against scratching (risk of corrosion). Unscrew bolt (2).

Installation:

Press cover (3) slightly towards rear when screwing down (gap).

Tightening torque, refer to 51 21 8AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 645CI .

Fig 3: Identifying Bore

Courtesy of BMW OF NORTH AMERICA, INC.

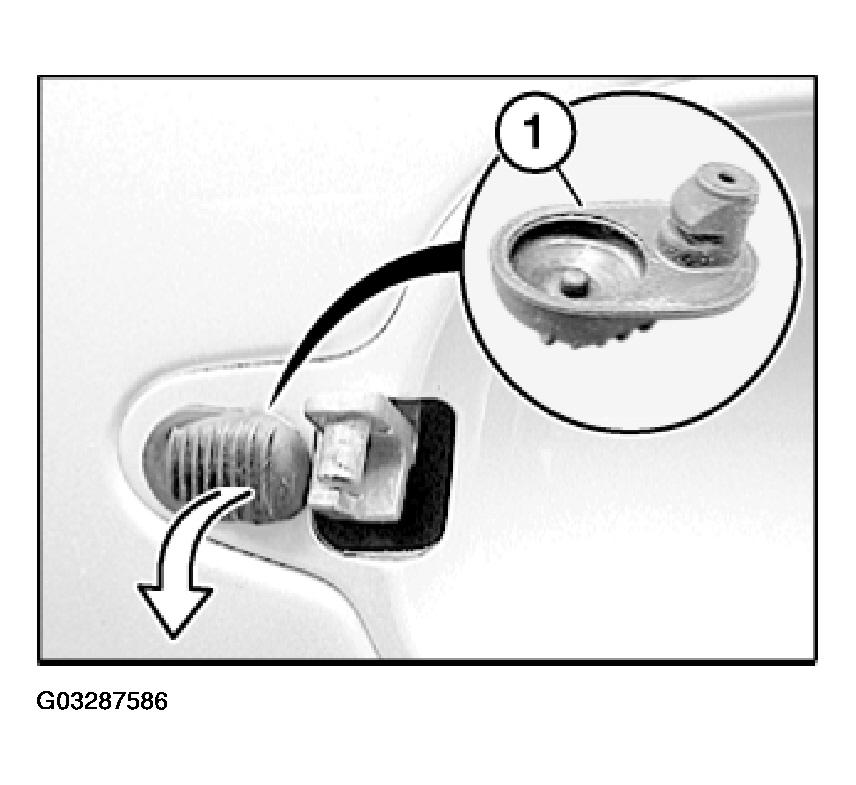

Remove stop pad (1).

Fig 4: Removing Stop Pad

Courtesy of BMW OF NORTH AMERICA, INC.

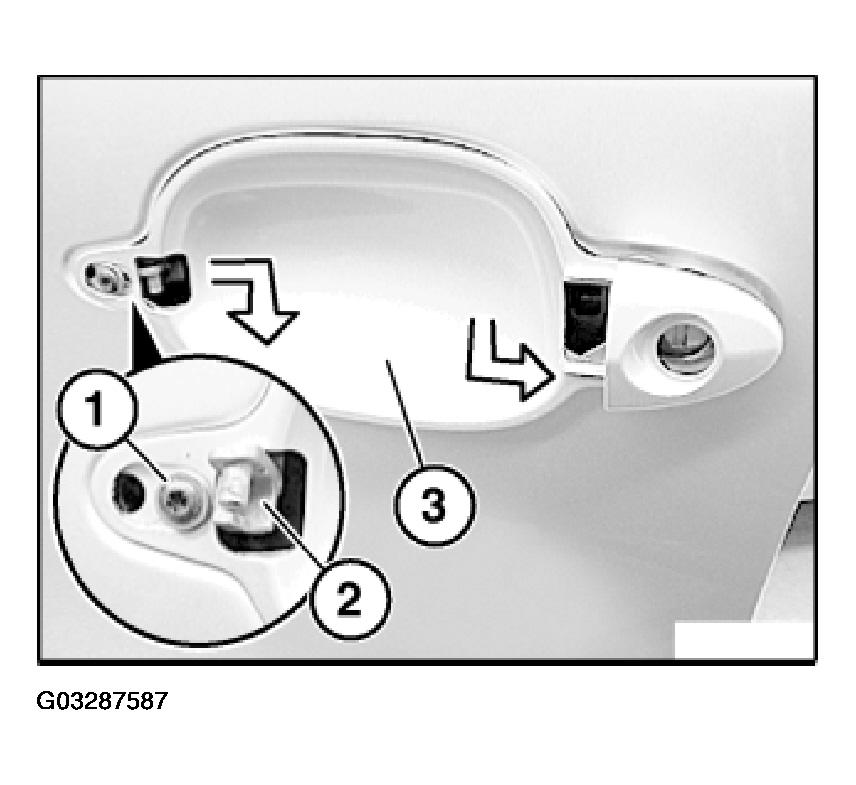

Loosen screw (1).

Fig 5: Loosening Screw

Courtesy of BMW OF NORTH AMERICA, INC.

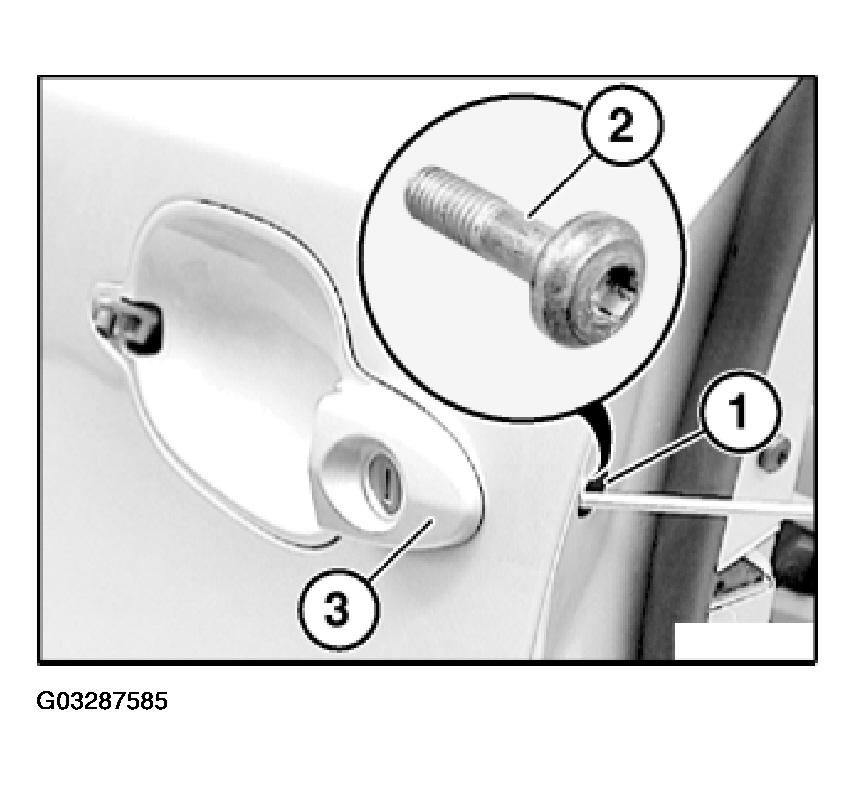

Press mounting (2) back, lever out cover (3) at rear and remove in direction of arrow.

Tightening torque, refer to 51 21 7AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 645CI .

Installation:

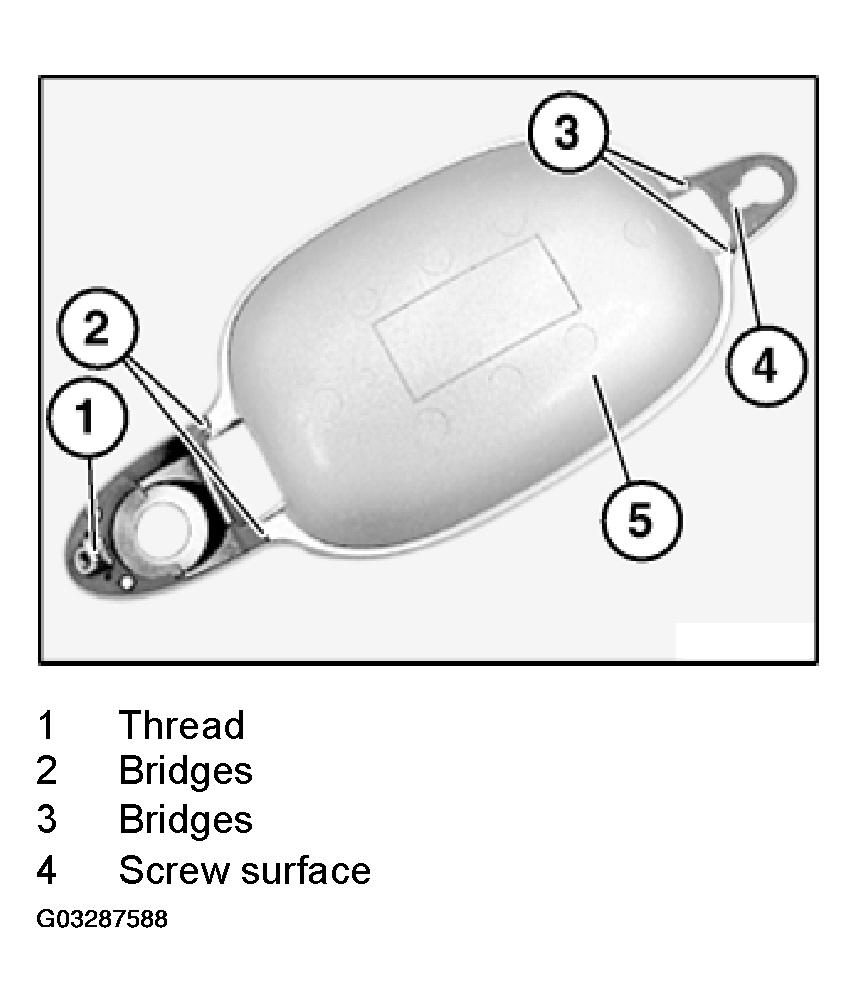

Following parts of cover on outside handle (5) must not be damaged or missing:

Fig 6: Identifying Parts Of Cover On Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.
