51 21 170 Removing and installing or replacing outside handle from left or right front door

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63) .

2-door Models:

Remove trim (1).

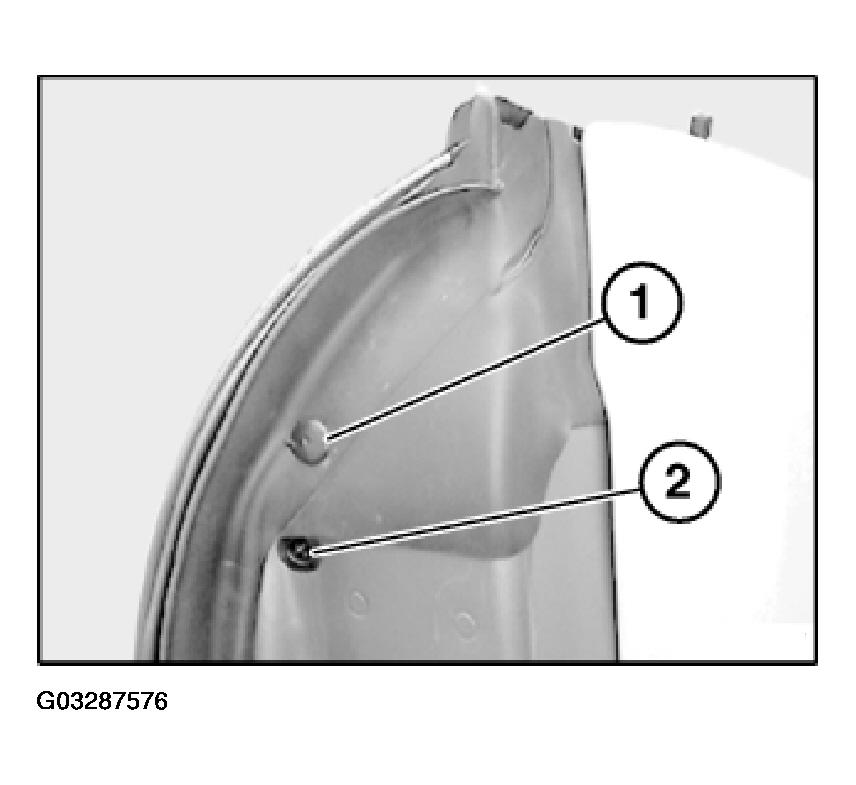

Fig 1: Removing Trim (2-Door Models)
G03287576Courtesy of BMW OF NORTH AMERICA, INC.

4-door Models:

Remove trim (1).

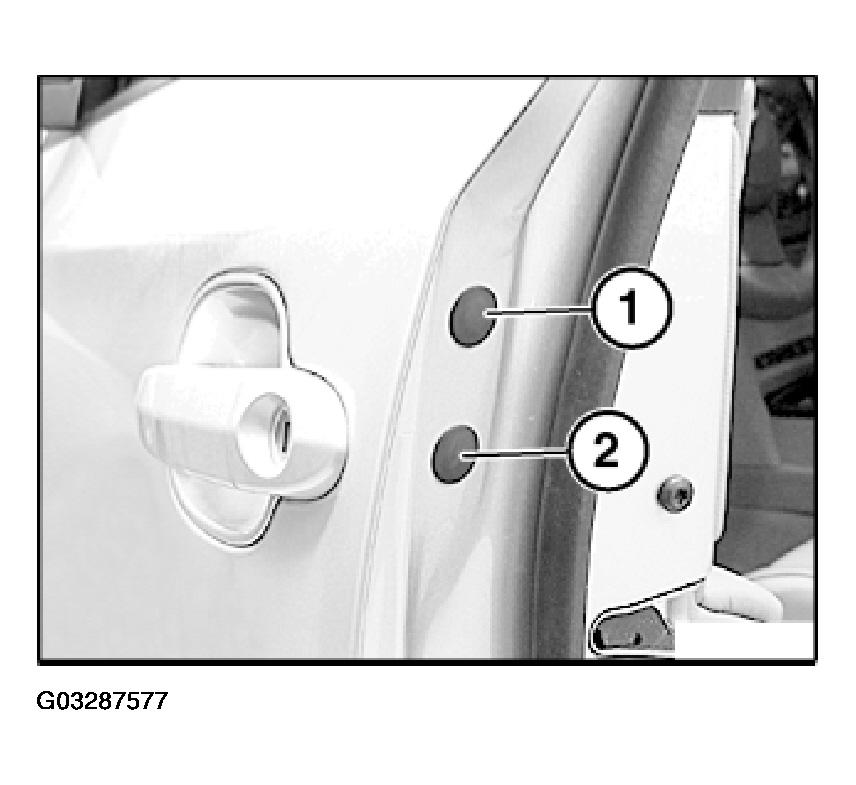

Fig 2: Removing Trim (4-Door Models)
G03287577Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Protect bore (1) against scratching (risk of corrosion).
IMPORTANT: If the screw is not correctly secured, the lock mechanism can jump back and the sound insulation must be removed.

Pull outside handle (2) outwards/upwards until screw (3) is accessible and hold.

Using special tool 51 2 220, turn screw (3) counterclockwise and screw down.

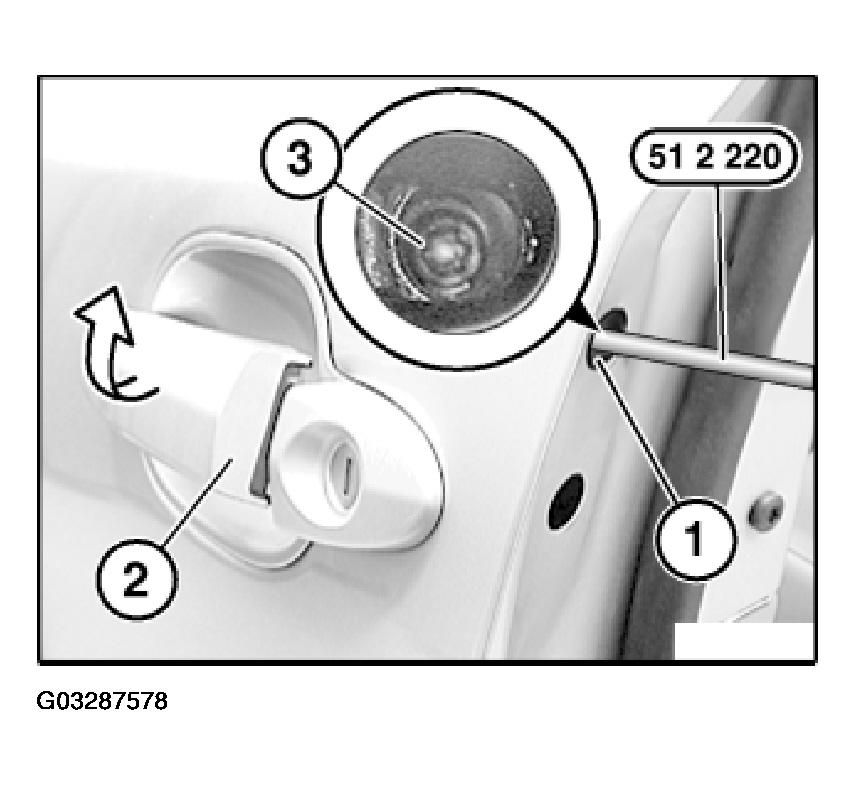

Fig 3: Pulling Outside Handle Outwards/Upward
G03287578Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 51 21 5AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 645CI .

  1. Pull off outside handle (1) from rear lock actuator (2).
  2. Pull off outside handle (1) downwards (as shown in illustration) from front lock actuator (3).

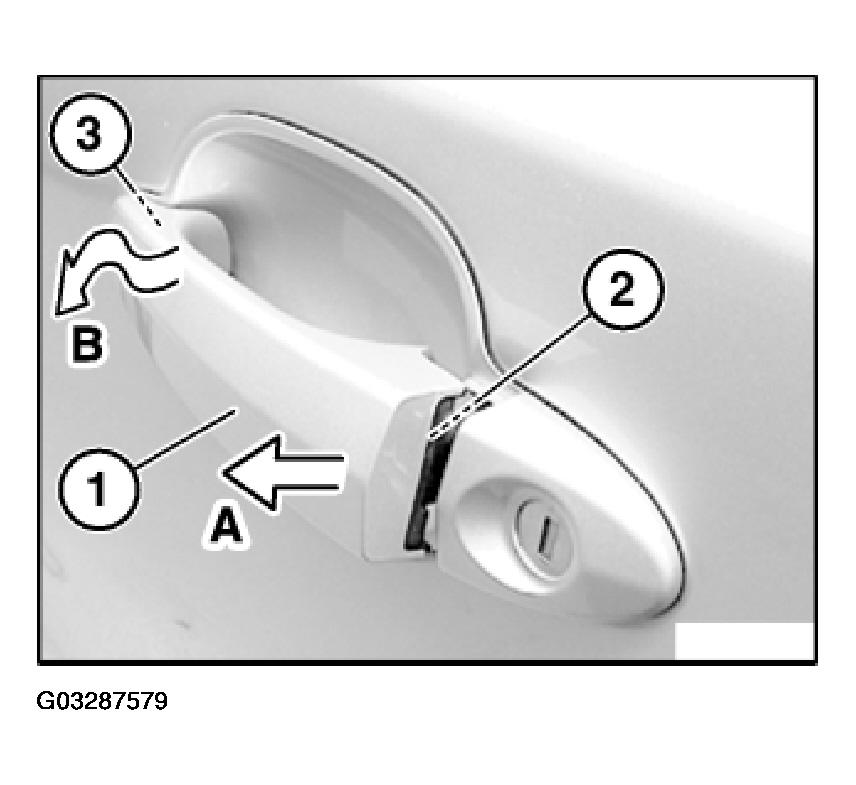

Fig 4: Removing Outside Handle
G03287579Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts on outside handle (4) must not be damaged or missing:

  1. Rear mounting
  2. Front mounting
  3. Felt strip (if available for refitting/replacement no longer required)

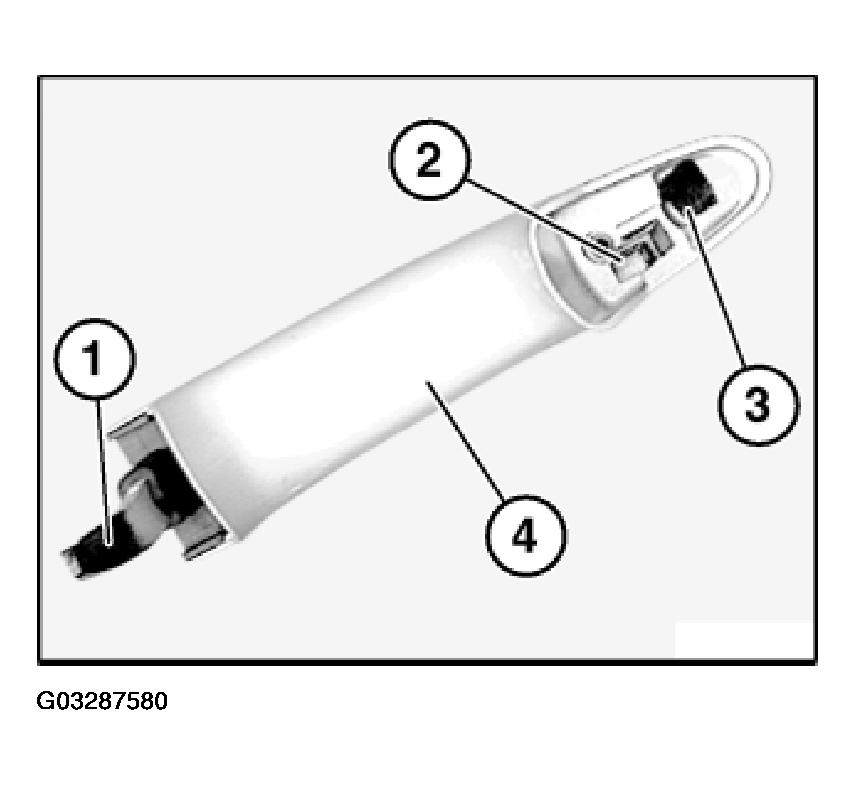

    Fig 5: Identifying Outside Handle Parts
    G03287580Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Stop pad (1) must be fitted.

Insert outside handle (4) with bore (3) correctly in mounting (2).

Engage mounting (5) of outside handle (4) correctly in lock actuator (6).

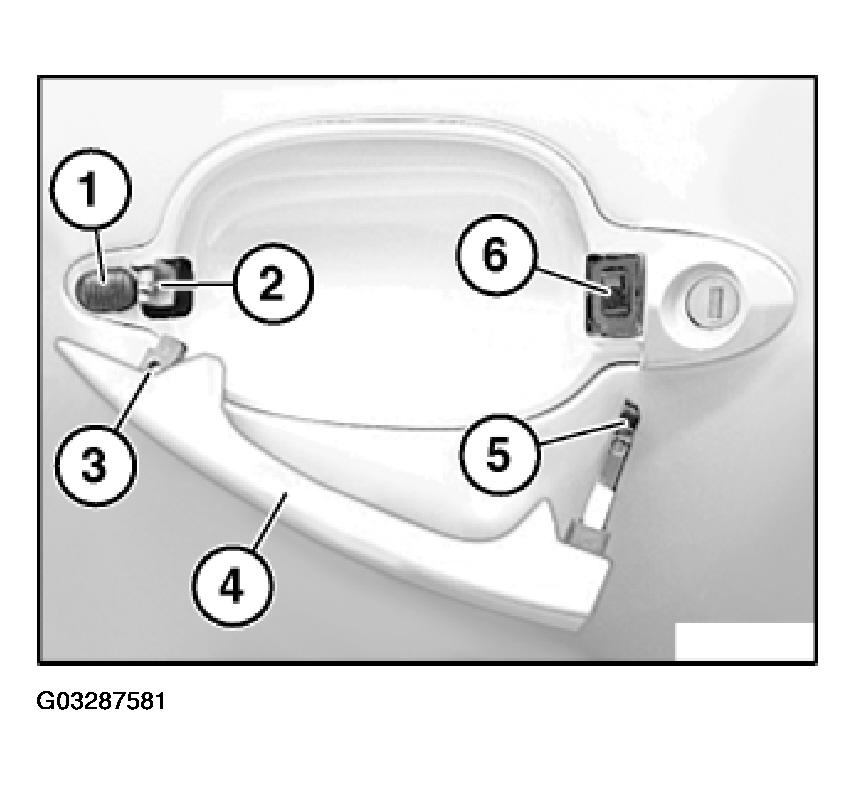

Fig 6: Engaging Mounting Of Outside Handle Correctly In Lock Actuator
G03287581Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Protect bore (1) against scratching/damaged paintwork (risk of corrosion).
IMPORTANT: If the screw is not correctly secured, the lock mechanism can jump back and the sound insulation must be removed.

Using special tool 51 2 220, turn screw (3) counterclockwise and screw down.

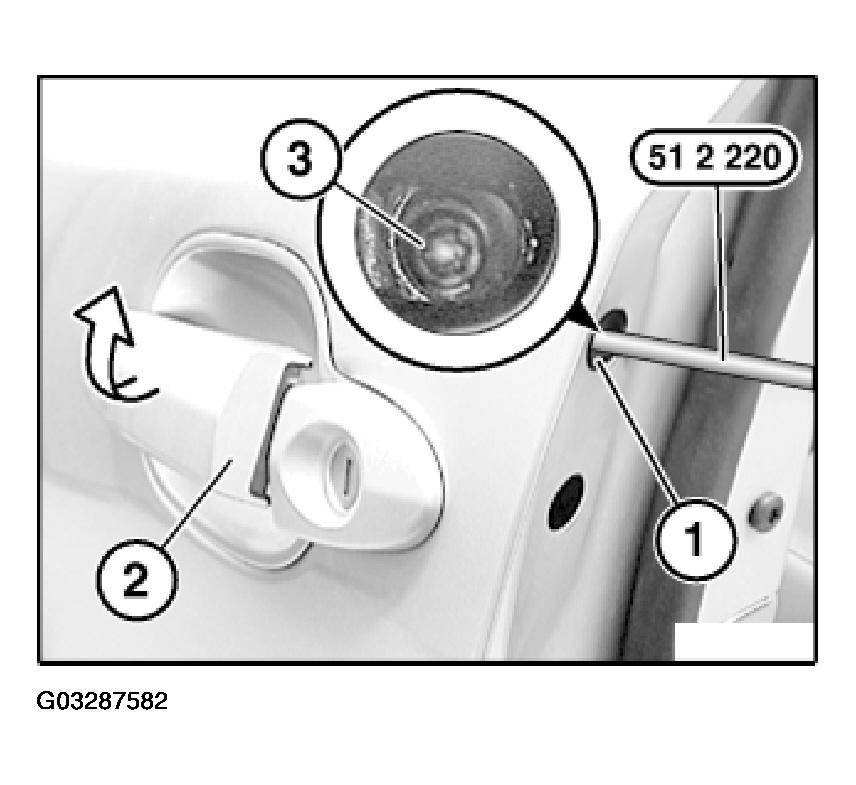

Fig 7: Turning Screw Using Special Tool 51 2 220
G03287582Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 51 21 5AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 645CI .

Installation:

Carry out function check only with door open.
