51 21 140 Removing and installing/replacing complete lock cylinder in left or right front door

Necessary preliminary tasks:

• Remove carrier for outside door handle with lock cylinder

Lever retainer (1) out of lock (2).

Pull retainer (1) out of guide (3).

Connection between carrier (5) and lock cylinder (4) is released.

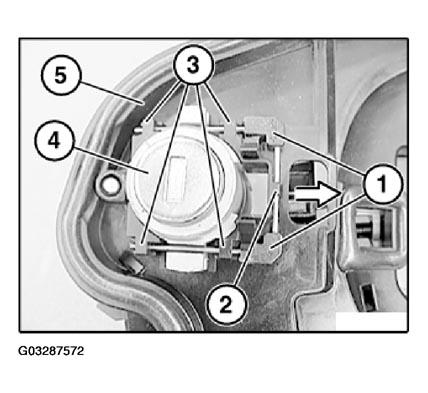

Fig 1: Removing Retainer Out Of Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Catches (1) of retainer (2) must not be damaged.

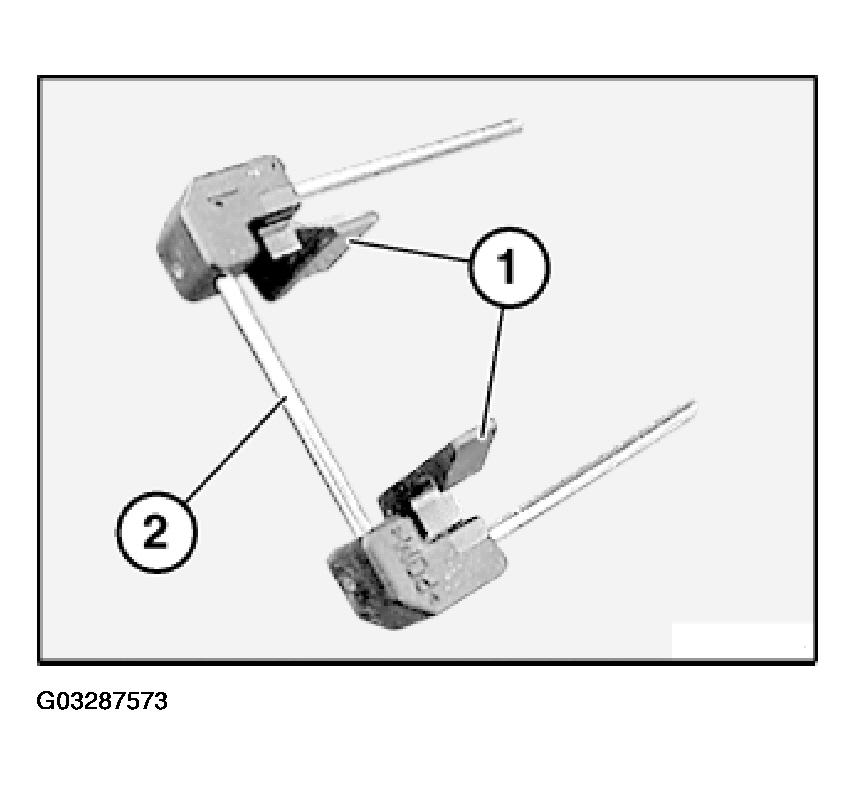

Fig 2: Identifying Catches Of Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Pull lock cylinder (1) out of carrier (2).

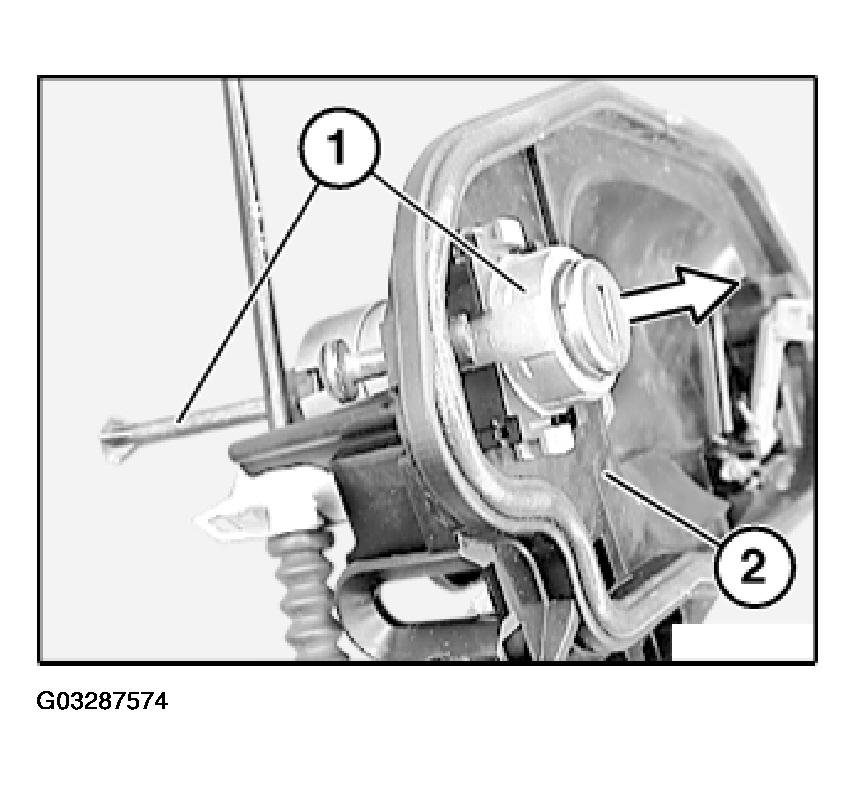

Fig 3: Removing Lock Cylinder Out Of Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts on lock cylinder (3) must not be damaged or missing:

1. Paddle
2. Guides

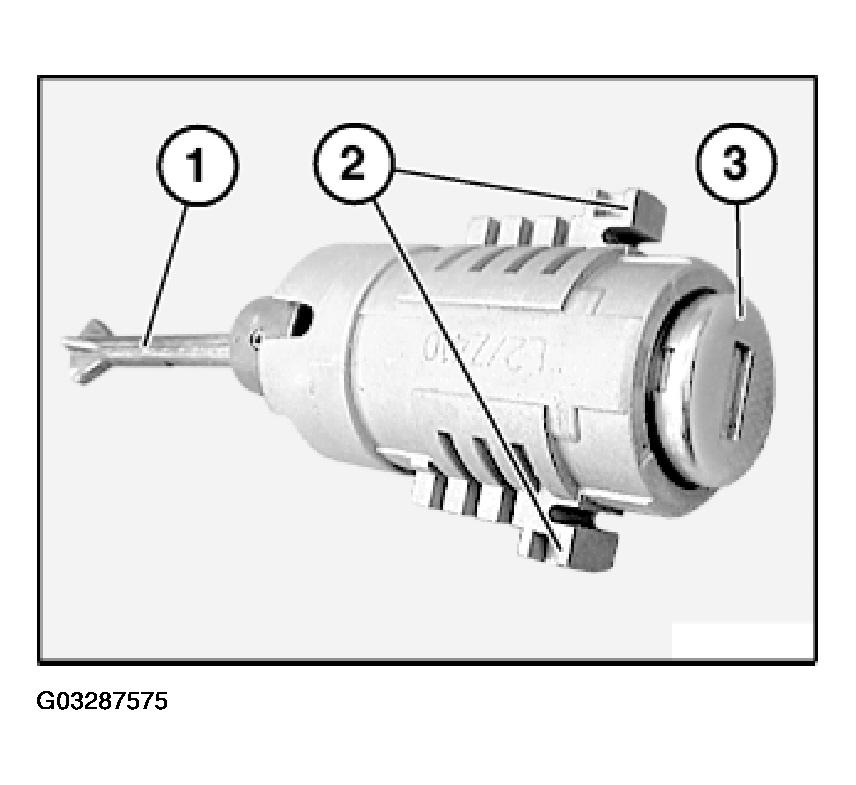

   Fig 4: Identifying Lock Cylinder Parts
