51 11 180 Removing and installing/replacing trim grille in bumper trim

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim, refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

Version with headlight cleaning system:

If necessary, feed out hose (1) of headlight cleaning system.

Unhook catches (2) from trim grill (3).

Remove trim grill (3).

Installation:

Catches (2) on bumper trim (4) must not be damaged.

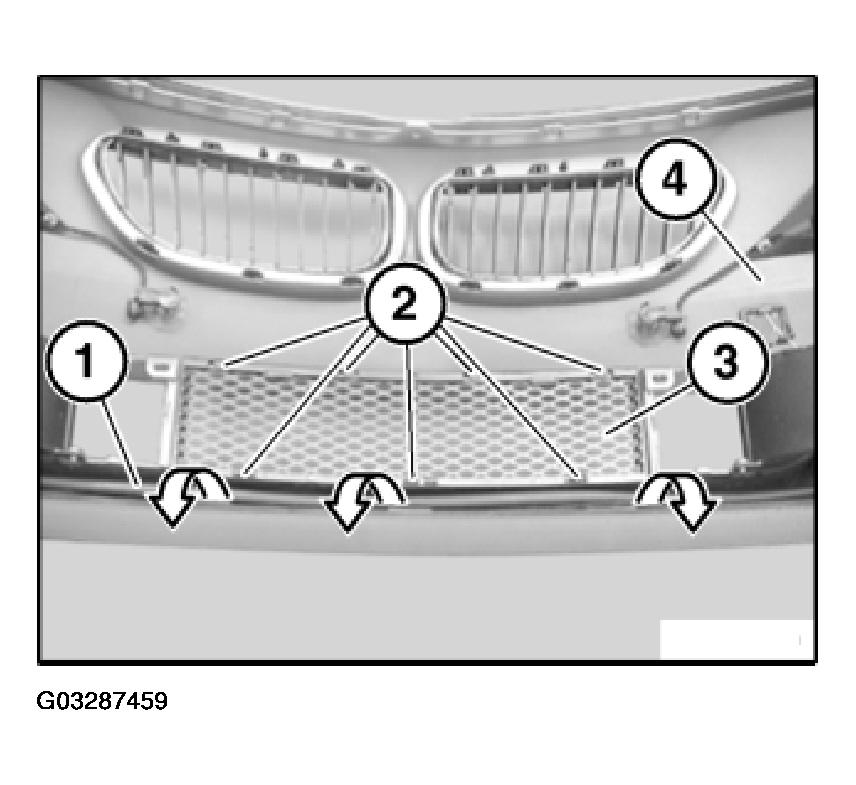

Fig 1: Removing And Installing Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ribs (1) and line arrangements (2) on trim grill must not be damaged.

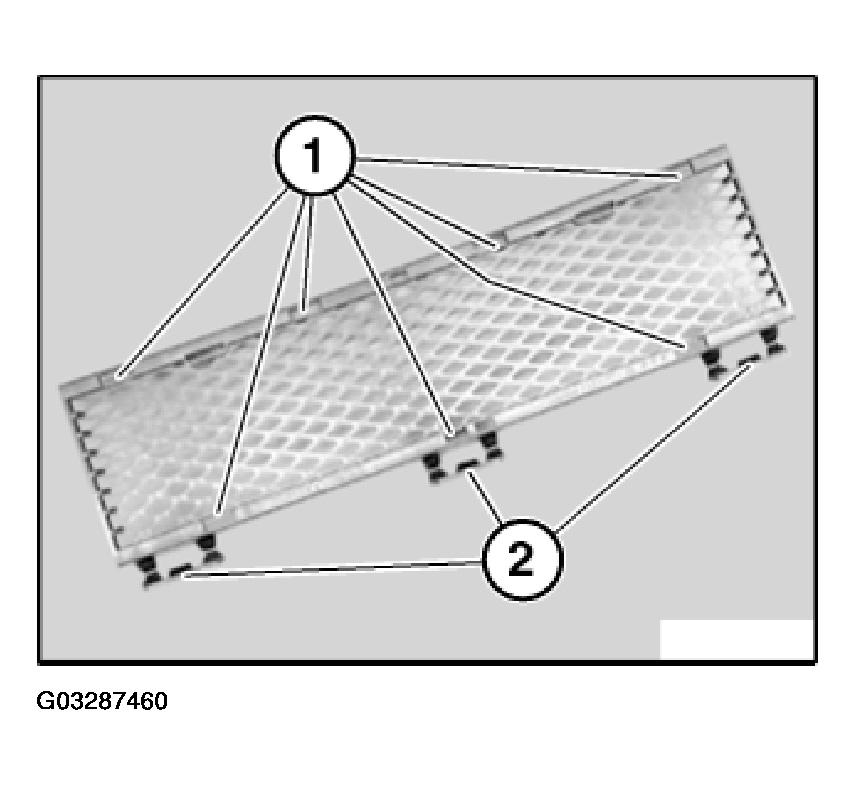

Fig 2: Identifying Ribs And Line Arrangements On Trim Grill

Courtesy of BMW OF NORTH AMERICA, INC.
