51 48 060 Removing and installing/replacing sound insulation in front door, left or right

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63)

00 9 317

Necessary preliminary tasks:

Partial removal:

Remove front door trim panel

Complete removal:

Remove control unit in front door

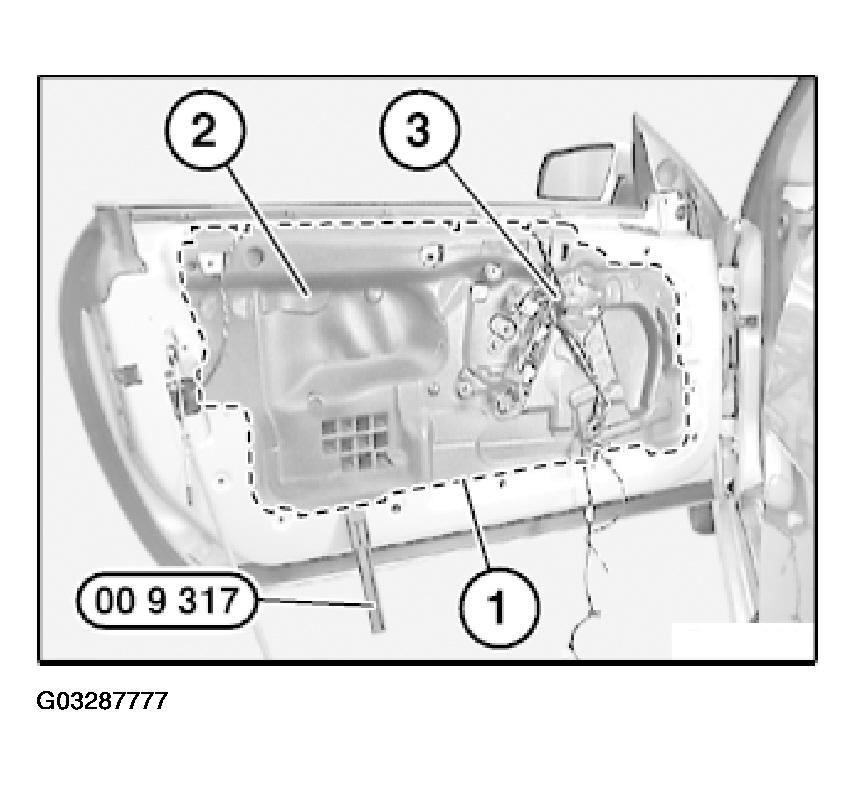

Using special tool 00 9 317, lever out sealing bead (1) of sound insulation (2) completely or if necessary partially.

Feed wires (3) out of sound insulation (2).

Fig 1: Removing Sealing Bead Of Sound Insulation With Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

In case of replacement or partial detachments, lay butylene tape depending on the conditions on inner door panel or acoustic insulation.

Seal cable penetrations with butylene tape.

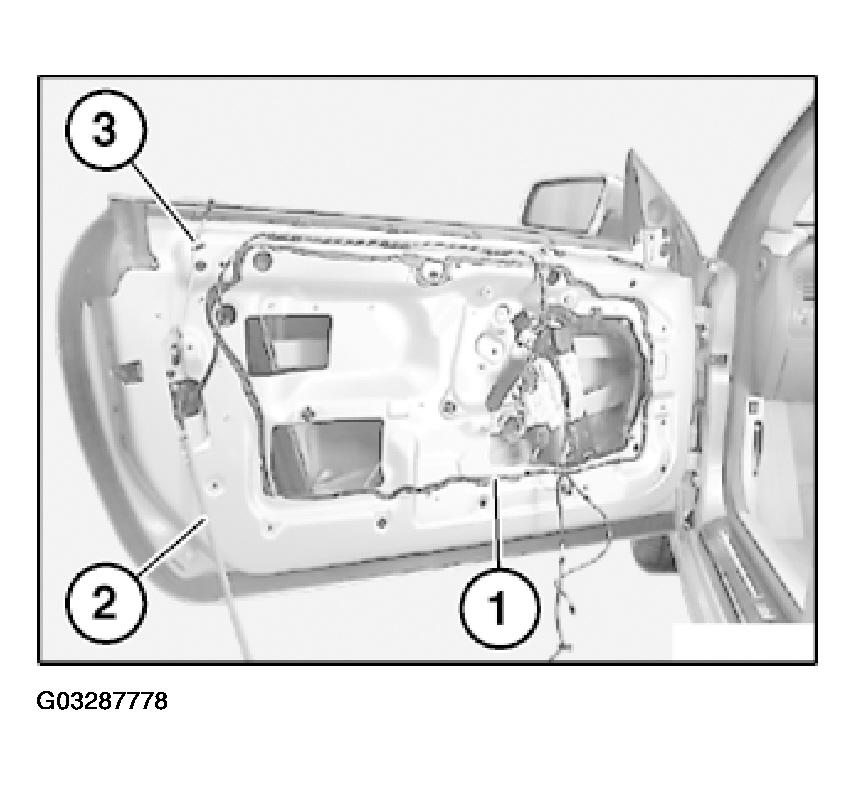

NOTE: Position of butylene tape (1) on inner door panel is identified by center punch marks.

IMPORTANT: Do not damage Bowden cable (2) and lock knob control rod (3).

Fig 2: Identifying Position Of Butylene Tape On Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

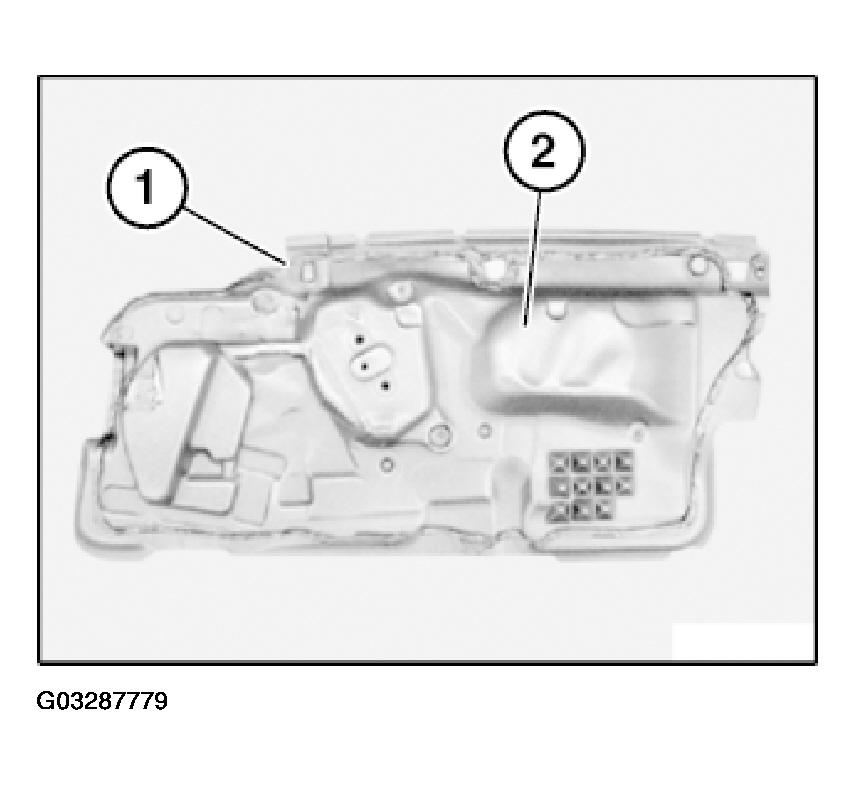

NOTE: Position of butylene tape (1) on acoustic insulation (2).

Fig 3: Identifying Position Of Butylene Tape On Acoustic Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

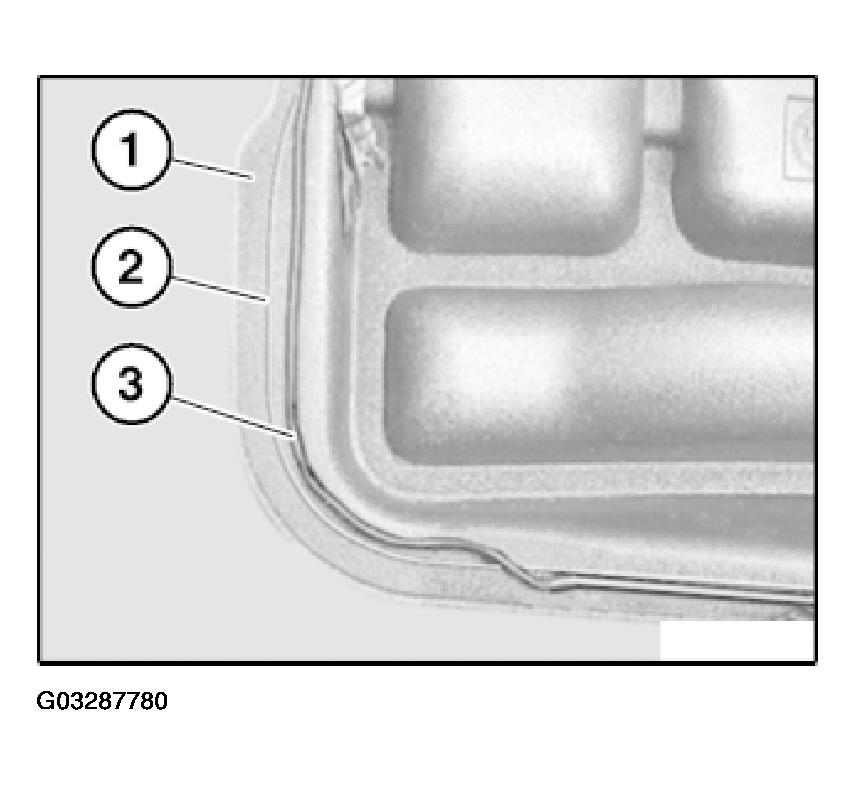

NOTE: A marking (2) is provided all round on the acoustic insulation (1).

Butylene tape (3) rests on or inside the marking (2).

Fig 4: Identifying Marking On Acoustic Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Clean bonding area with adhesive remover.

Air drying time: 1 minute

IMPORTANT: Adhesive area must be dry and free from dust and grease. Once it has been cleaned, do not touch the adhesive area with bare hands.

Lay single row of 6 mm dia. butylene tape or double row of 3 mm dia. tape in specified adhesive area.

Heat butylene tape (hot air blower) and press down firmly on sound insulation all round.

Contact pressure with hand roller: approx. 30 N/cm²

Manual contact pressure: approx. 10 N/cm²

NOTE: Firm thumb pressure has approx. 50 N/cm²
