51 47 440 Removing and installing/replacing rear carpet on seat pan
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove left/right front seat
- Remove handbrake lever
- Remove vehicle centre sensor
- Remove rear left/right side trim
- Remove front inside entrance cover strip

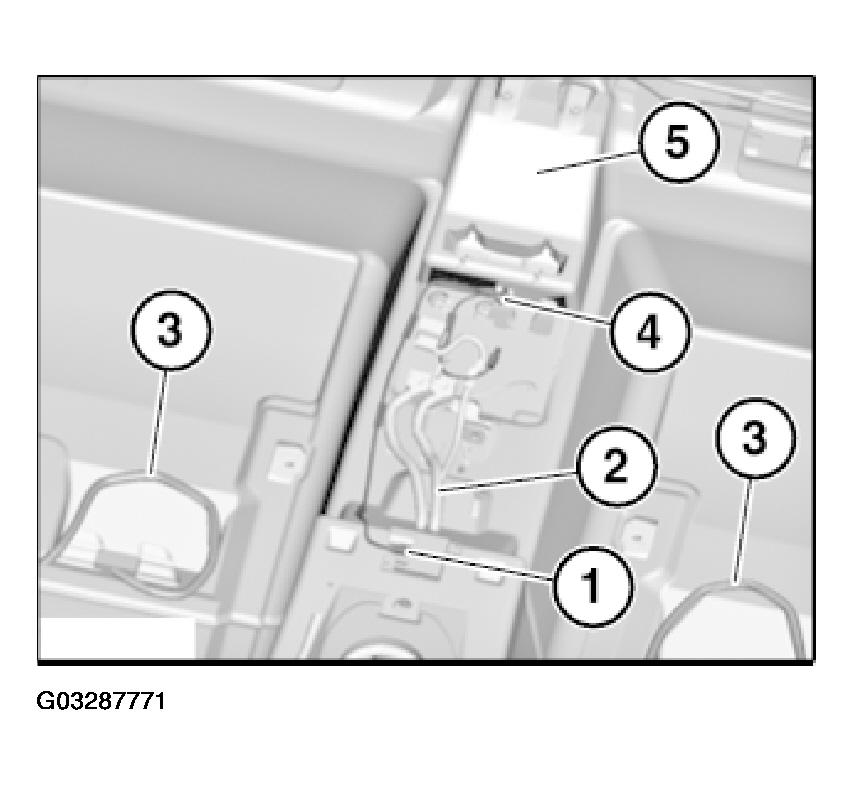

Disconnect connector (1).
Lay cable (2) back.
Feed out cables (3 and 4) through carpet (5).
Remove carpet (5).
Installation:
Make sure openings for air duct and attachment points are correctly positioned.
Make sure all cables are in correct position.
