51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim on rear apron

Release clip (1).

Lever out cover on lashing point (2) and remove.

Release screw underneath and remove lashing point (2) in direction of arrow.

If necessary, remove warning triangle.

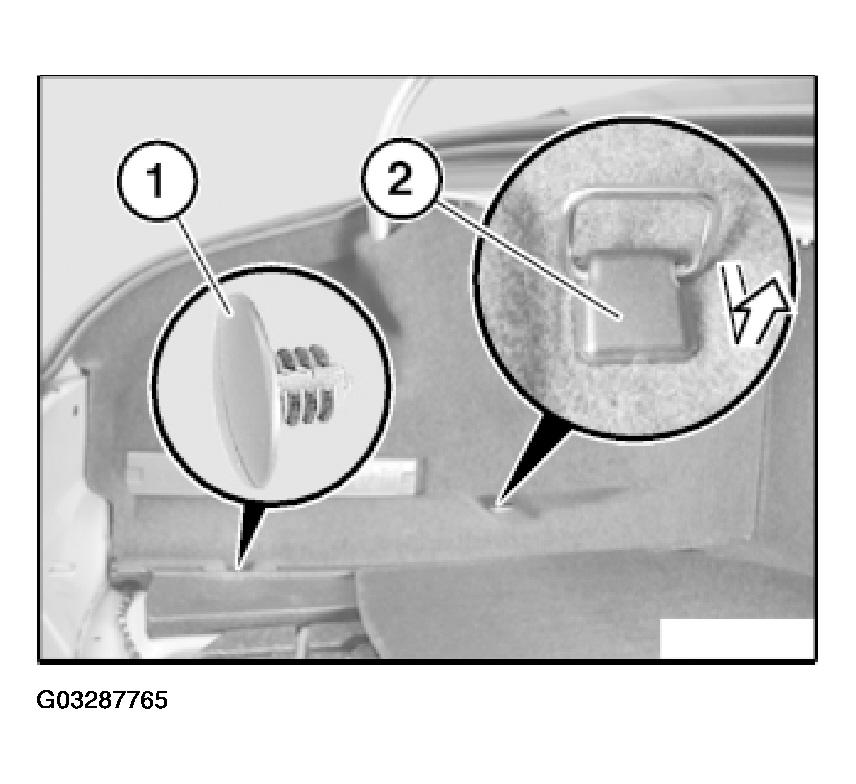

Fig 1: Removing Lashing Point Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip (1) and cover on lashing point (2) must not be damaged.

Release mucket (1).

Feed out trim (2) in direction of arrow and remove.

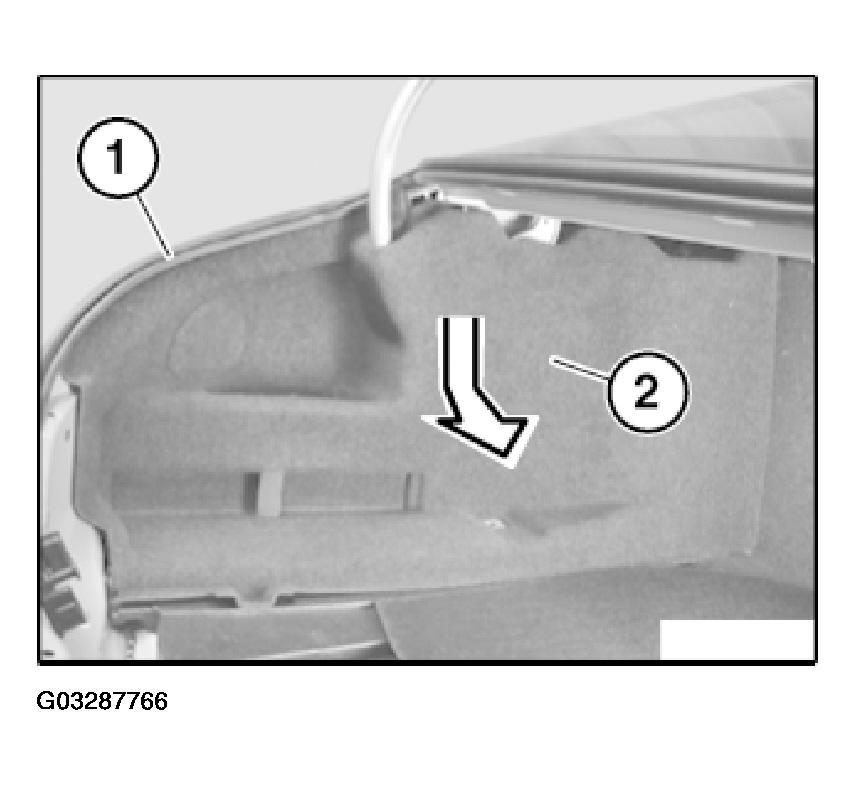

Fig 2: Removing Luggage Compartment Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.
