51 47 140 Removing and installing/replacing panel for luggage compartment partition

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63)

00 9 317

Necessary preliminary tasks:

Remove left luggage compartment wheel arch trim
Remove right luggage compartment wheel arch trim

Version with ski bag:

Lever out cover (1) with special tool 00 9 317 and remove.

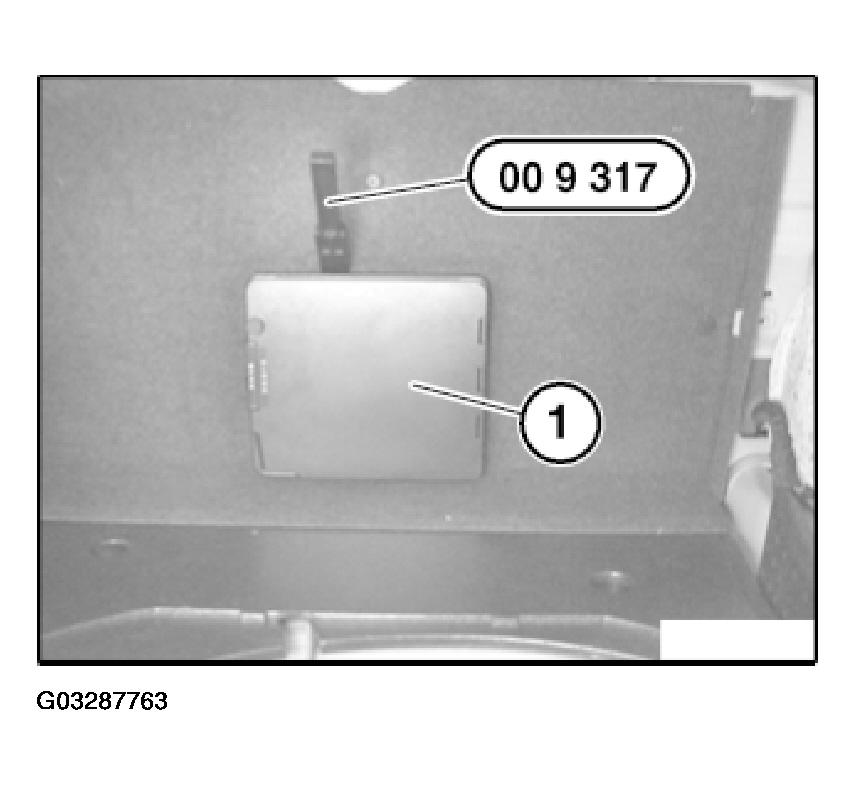

Fig 1: Levering Out Cover (1) With Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out clip (1) and remove panel (2) in direction of arrow.

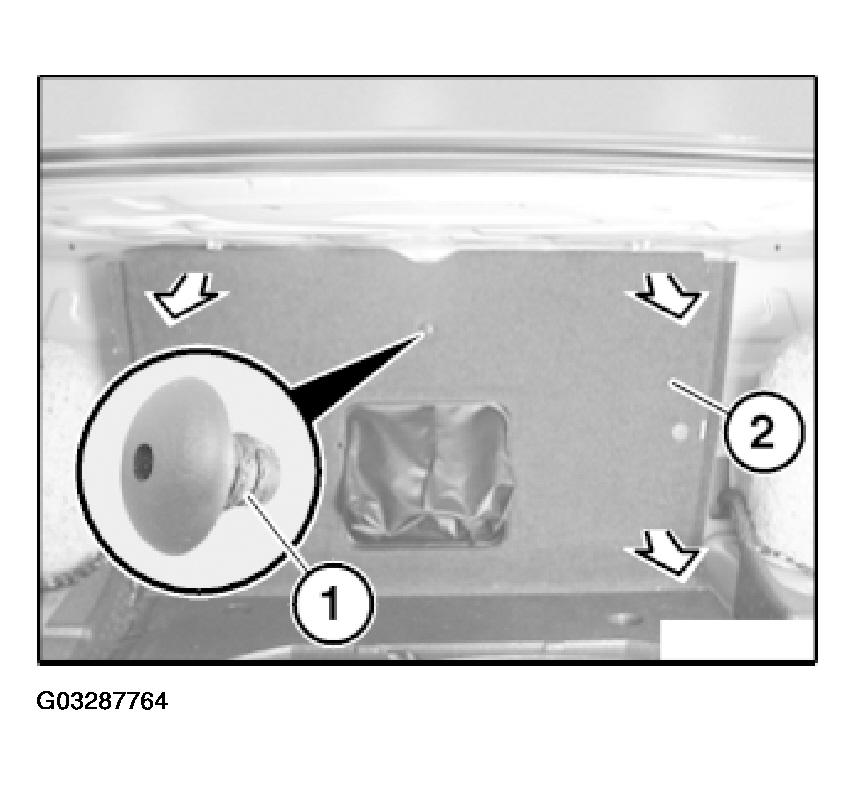

Fig 2: Levering Out Clip (1) And Removing Panel (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace clip (1).
