51 47 065 Removing and installing/replacing finishing strip at front left or right entrance

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63)

00 9 317

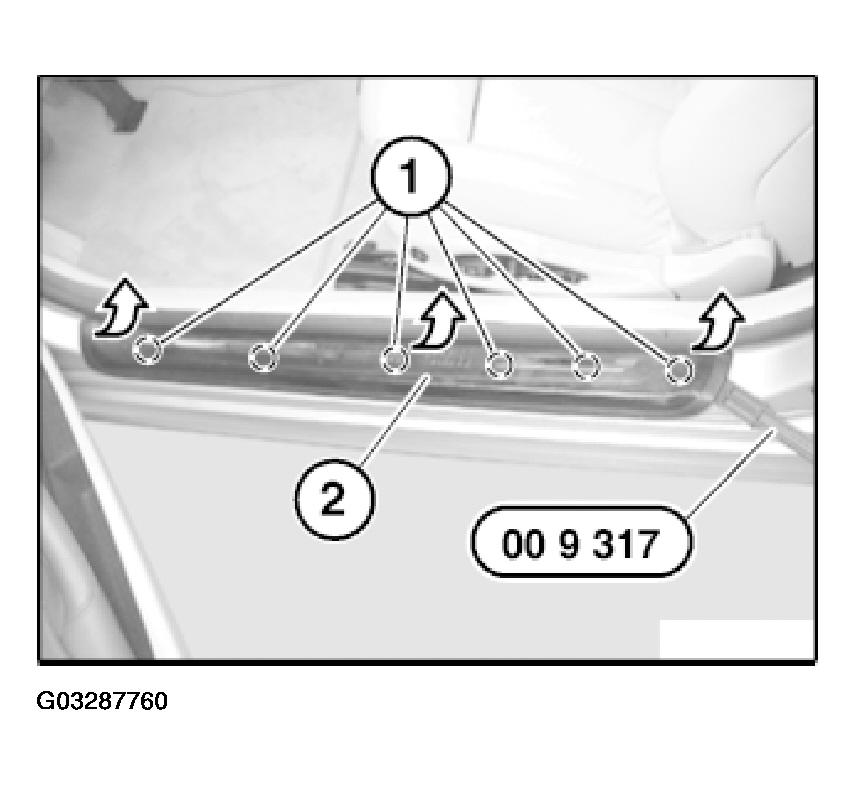

Unclip clips (1) for finishing strip (2) with special tool 00 9 317.

Fig 1: Uncliping Clips (1) For Finishing Strip (2) With Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Remove finishing strip (2).

Installation:

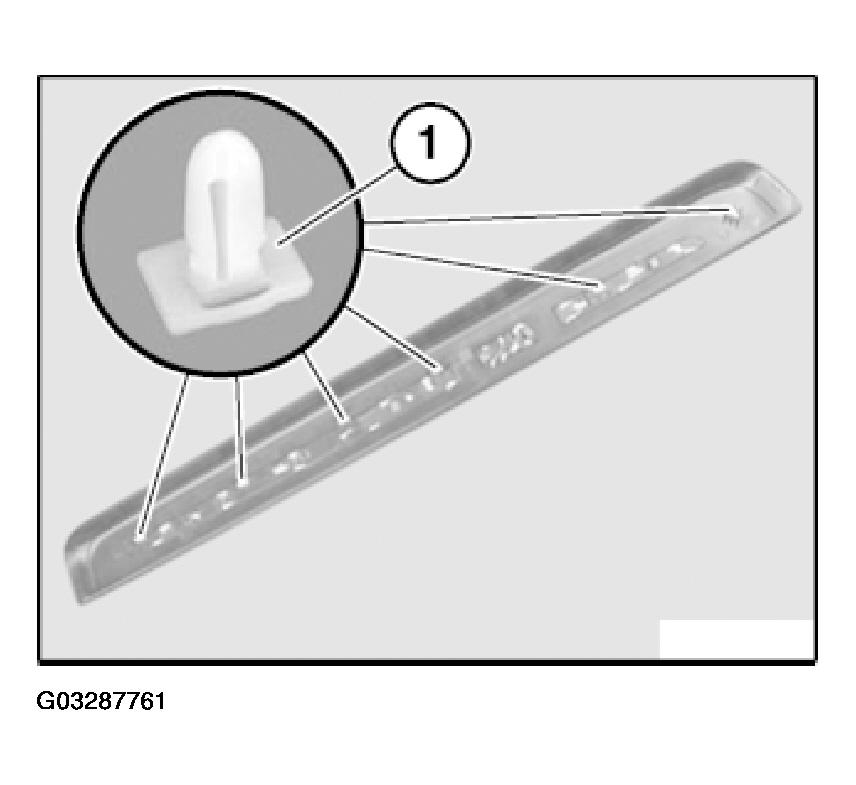

If necessary, replace faulty clips (1).

Fig 2: Identifying Finishing Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
