51 47 000 Removing and installing/replacing front (inside) left or right entrance cover strip

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of breakage to connecting lug on B-pillar trim panel. Do not raise entrance cover strip (1) over entire length simultaneously.

Raise entrance cover strip (1) from front to rear. Detach with clips (2) from floor plate.

Detach entrance cover strip (1) from B-pillar trim panel at bottom in direction of arrow.

If necessary, lever out clips from floor plate.

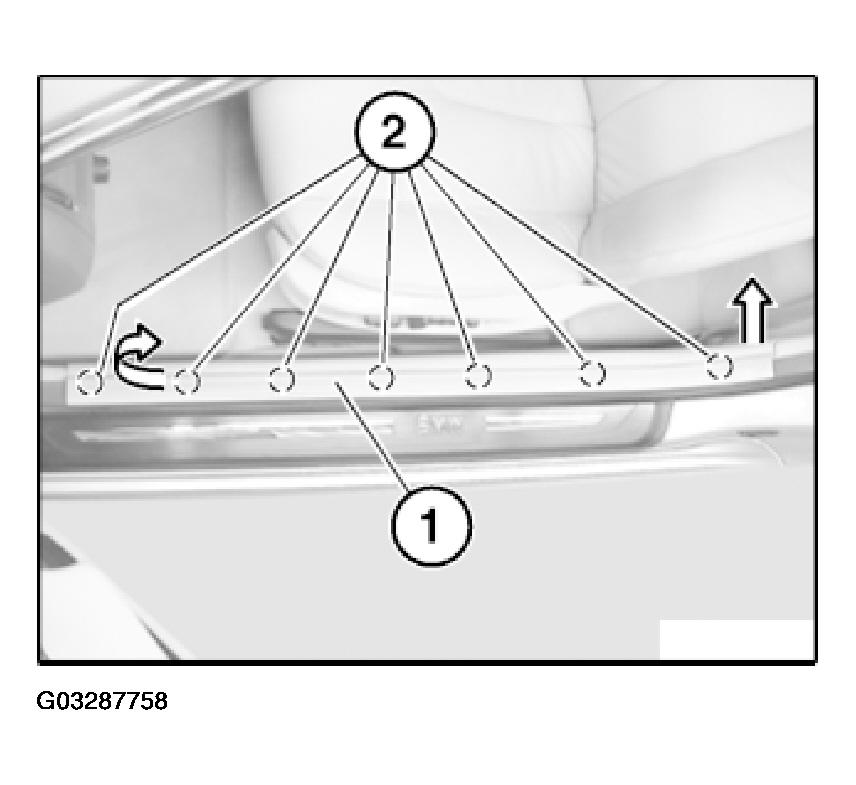

Fig 1: Removing Front (Inside) Left Or Right Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1).
Connecting lug (3) of entrance cover strip (2) must not be damaged.

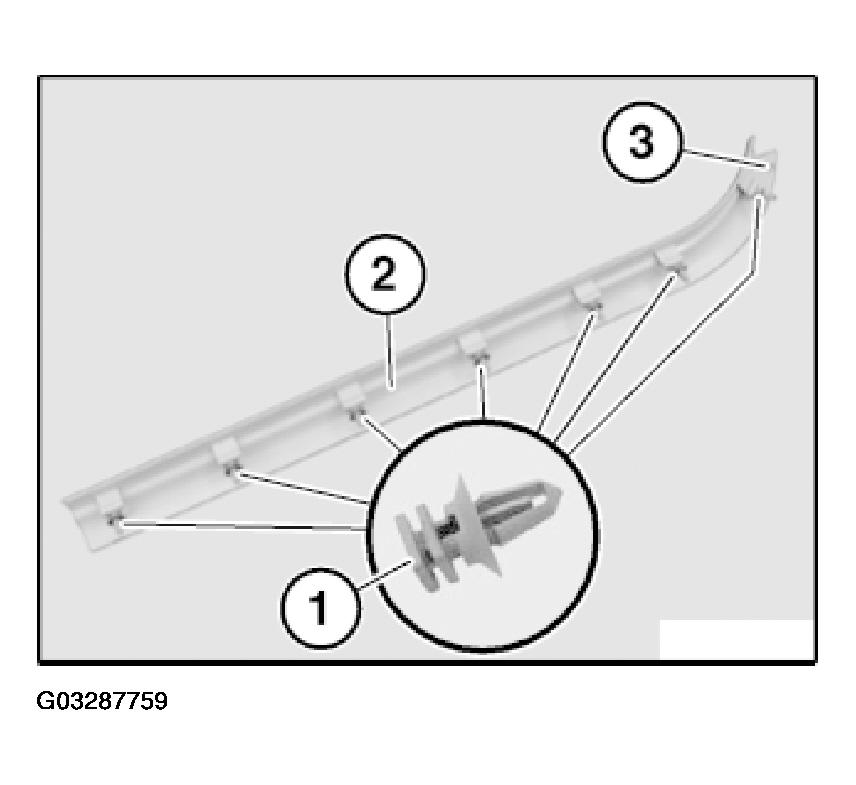

Fig 2: Identifying Connecting Lug Of Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
