51 37 261 Removing and installing/replacing window cavity cover strip for door window, rear left or right

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63)

00 9 317

Lever out window cavity cover strip (1) upwards with special tool 00 9 317.

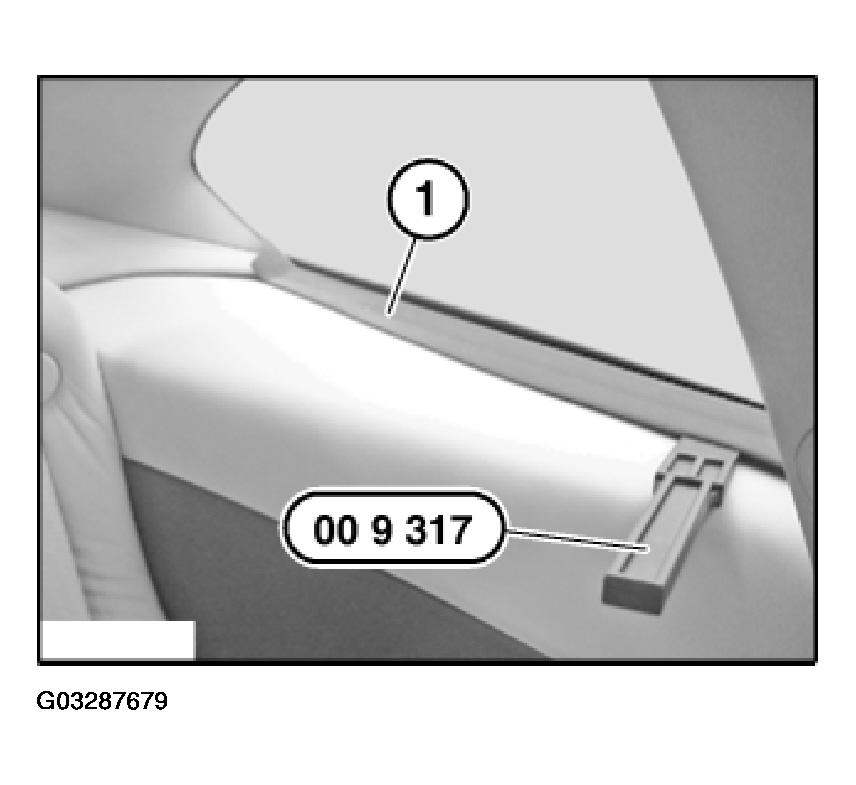

Fig 1: Removing Window Cavity Cover Strip Upwards With Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) must not be damaged.

If necessary, replace faulty clips (1).

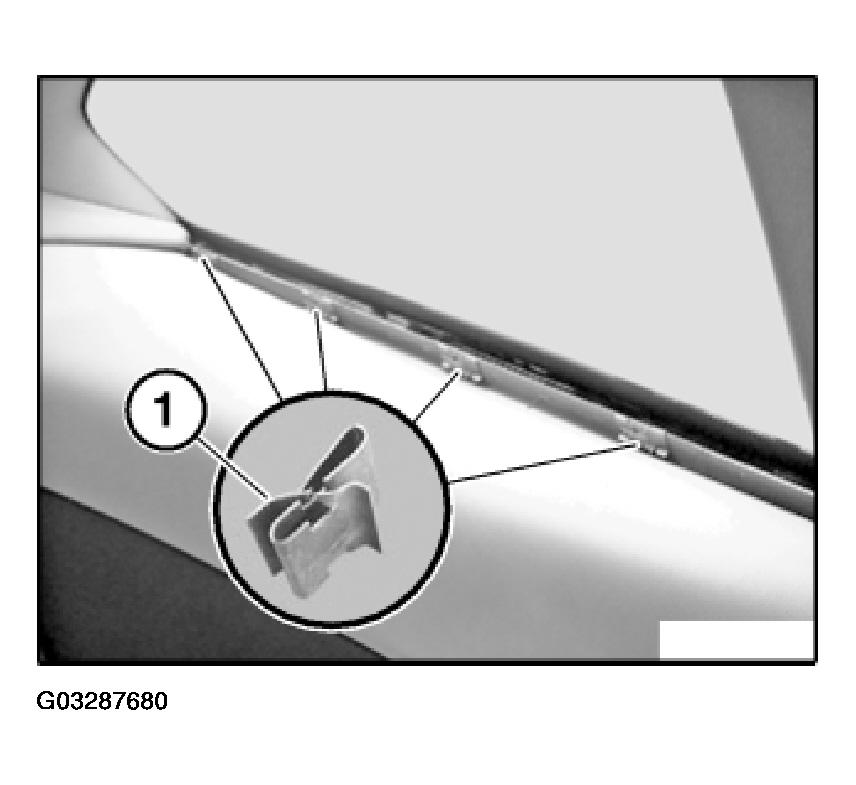

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.
