51 37 240 Removing and installing/replacing outer window cavity cover strip for door window, rear left or right

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63) .

00 9 317

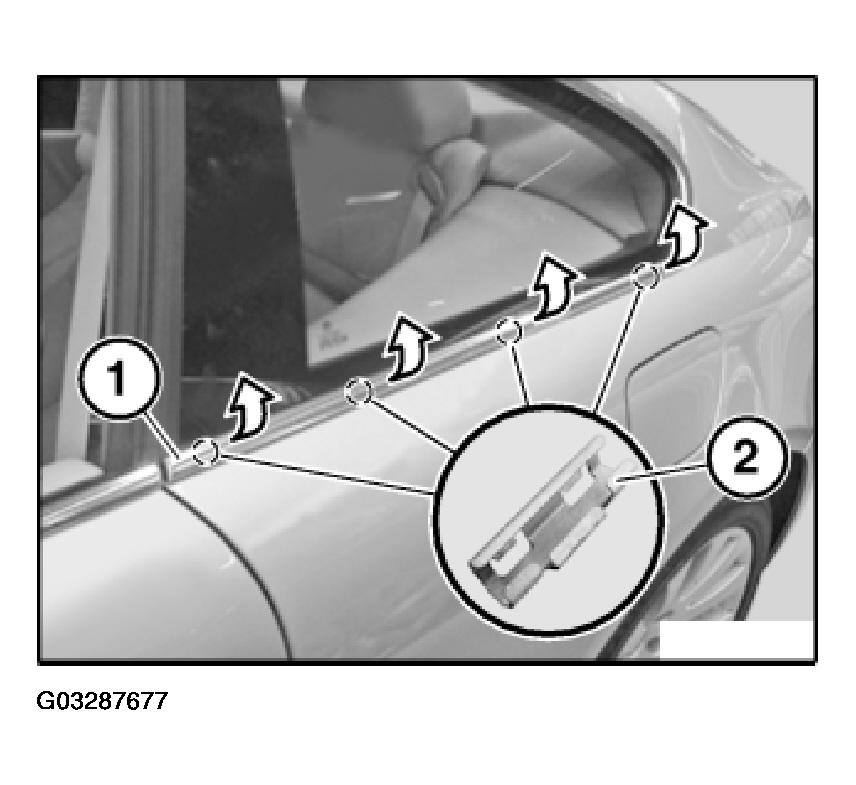

Release window cavity cover strip (1) with special tool 00 9 317 in direction of arrow from clips (2).

Fig 1: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

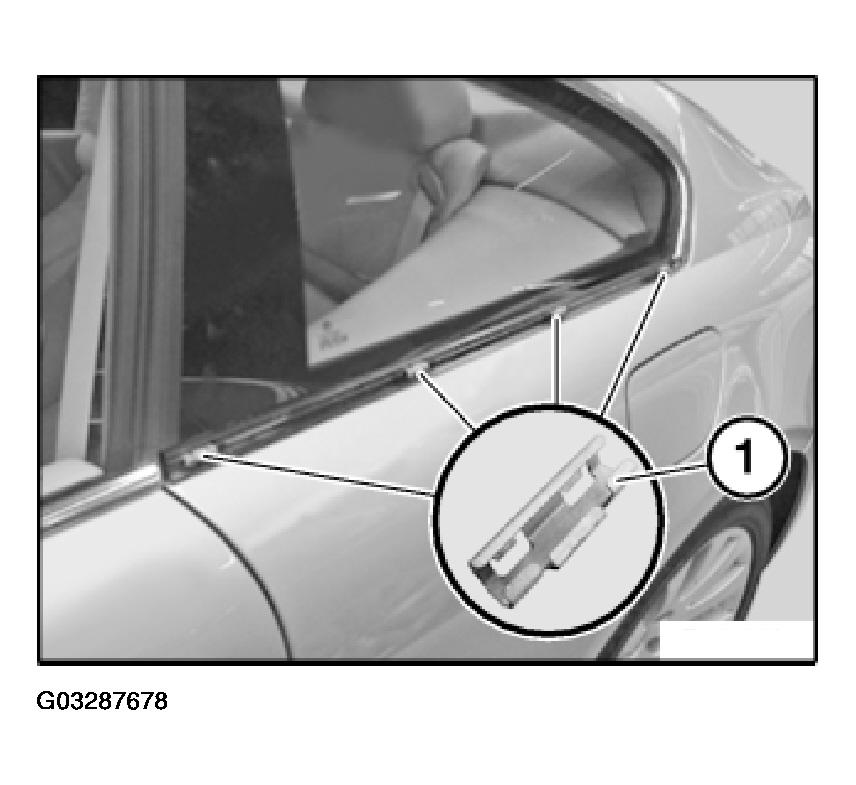

Check clips (1) for damage and correct seating.

If necessary, replace faulty clips (1).

Fig 2: Identifying Correct Seating Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.
