SOLENOIDS & SOLENOID VALVES
| Component | Component Location |
|---|---|
| Carbon Canister Valve | Behind left rear quarter panel trim. |
| Evaporative Emission Valve | On left side of engine compartment. |
| Fuel Changeover Valve | Behind right rear interior trim panel. |

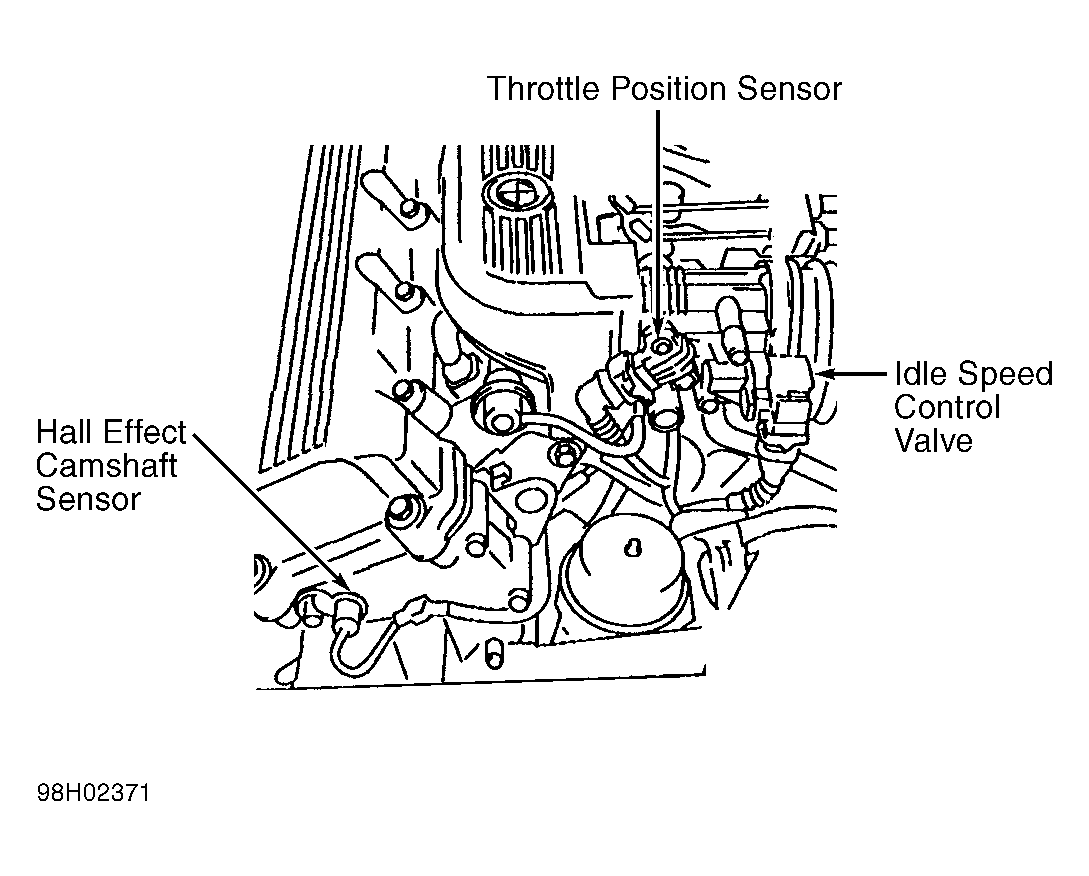

| Idle Speed Control Valve | On rear left side of engine compartment. See Figure . |
| Intake Air Resonance Changeover Valve | On rear left side of engine compartment. |
| Secondary Air Pump Valve | On left side of engine compartment. |
| Shift Lock | In center console. |
| Transmission Valve Unit | On right side of transmission. |
| Water Valve | On left rear of engine compartment. |
