BUZZERS, RELAYS & TIMERS
| Component | Component Location |
|---|---|

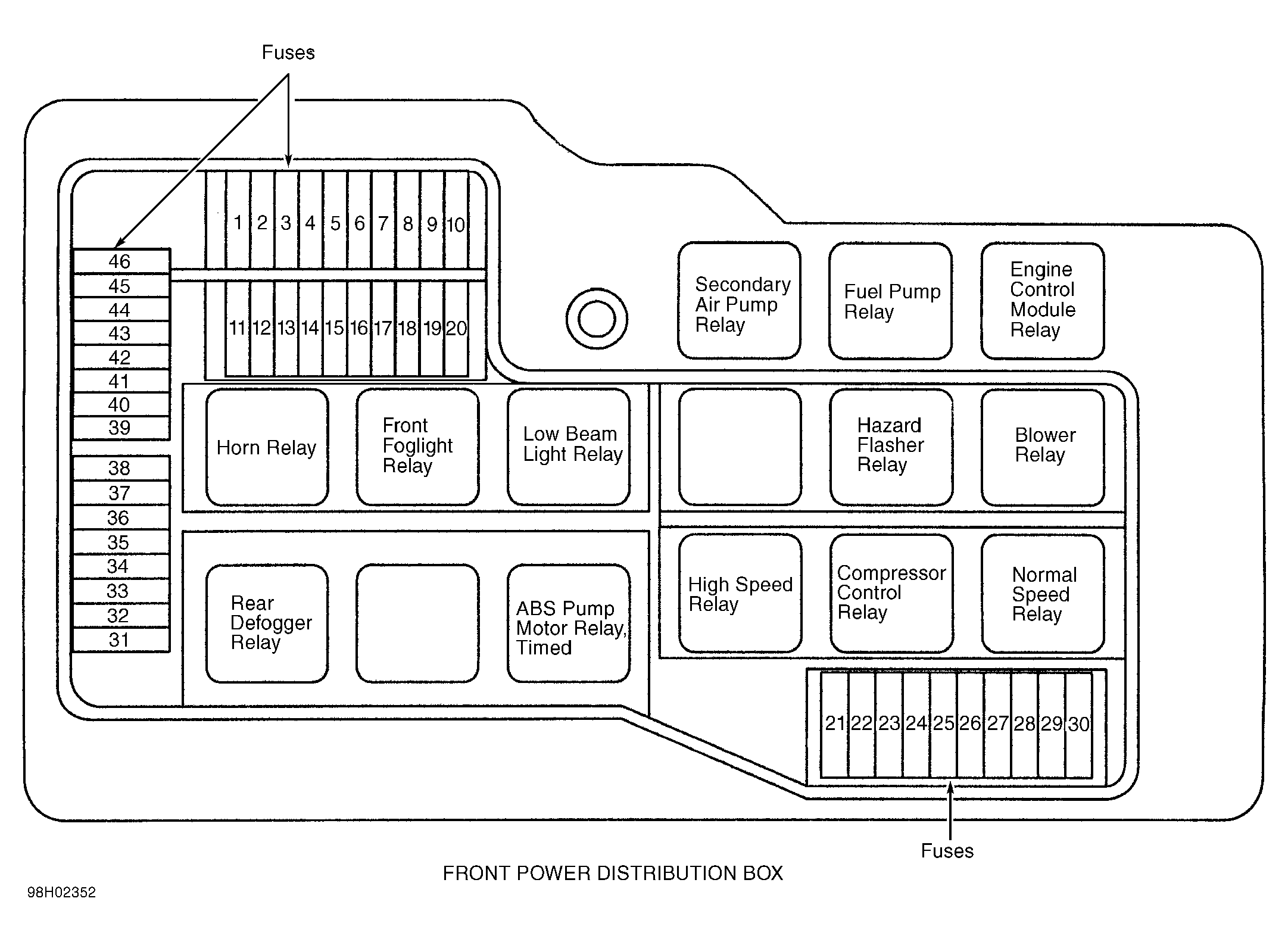

| ABS Pump Motor Relay, Timed | In front power distribution box. See Figure . |
| Blower Relay | In front power distribution box. See Figure . |
| Compressor Control Relay | In front power distribution box. See Figure . |
| Engine Control Module Relay | In front power distribution box. See Figure . |

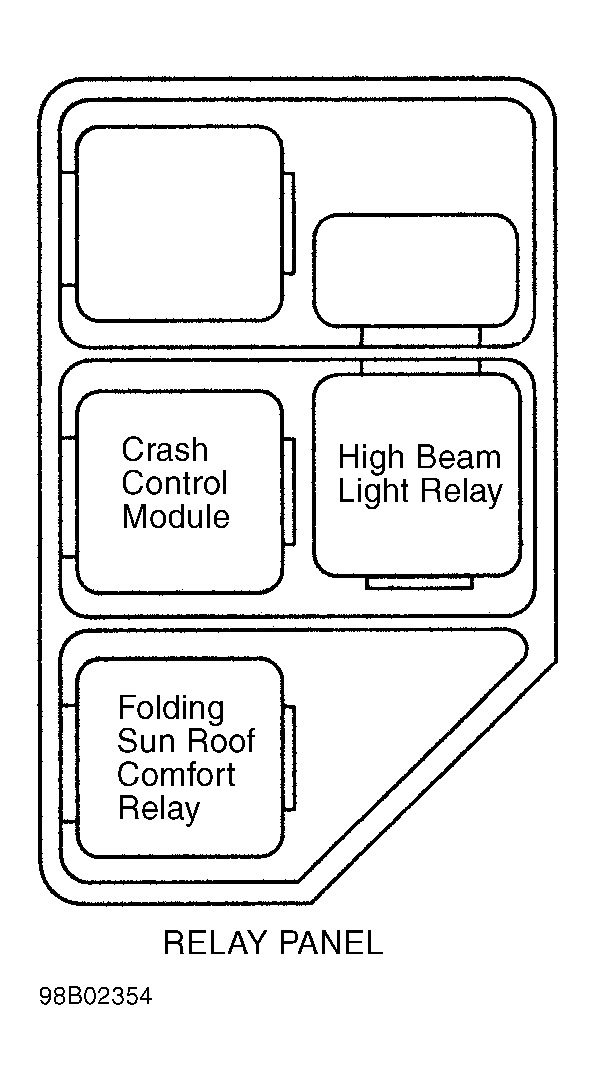

| Folding Sun Roof Comfort Relay | On relay panel, under left side of dash. See Figure . |
| Front Foglight Relay | In front power distribution box. See Figure . |
| Fuel Pump Relay | In front power distribution box. See Figure . |
| Hazard Flasher Relay | In front power distribution box. See Figure . |
| High Beam Light Relay | On relay panel, under left side of dash. See Figure . |
| High Speed Relay | In front power distribution box. See Figure . |
| Horn Relay | In front power distribution box. See Figure . |
| Low Beam Light Relay | In front power distribution box. See Figure . |
| Normal Speed Relay | In front power distribution box. See Figure . |
| Rear Defogger Relay | In front power distribution box. See Figure . |
| Secondary Air Pump Relay | In front power distribution box. See Figure . |

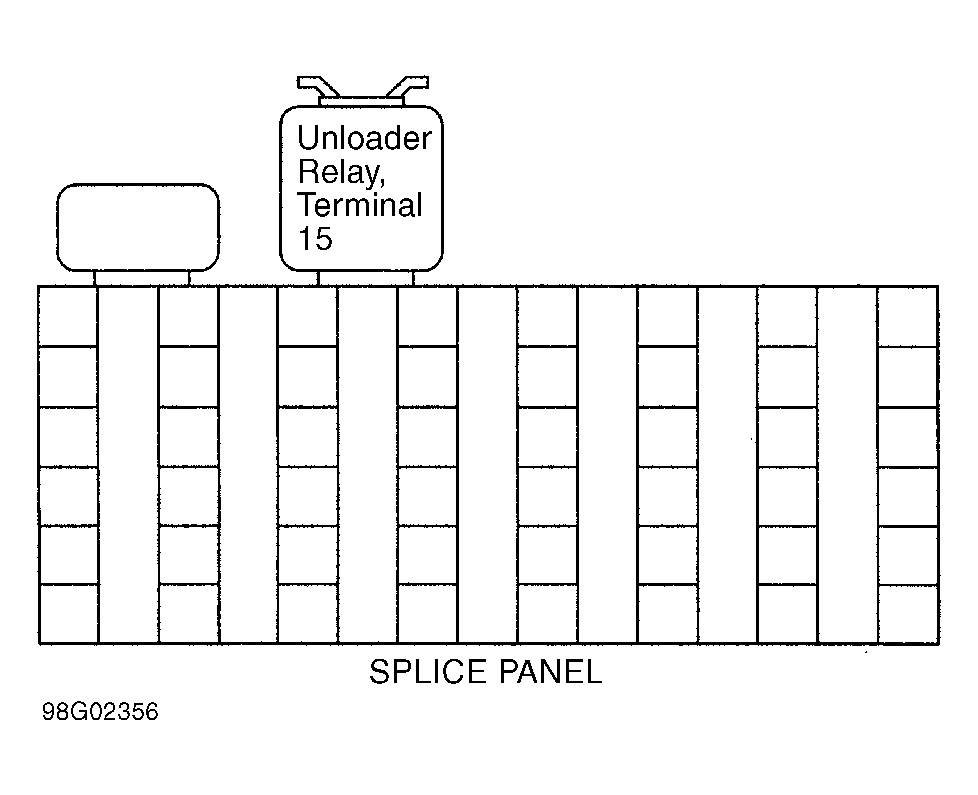

| Unloader Relay, Terminal 15 | On splice panel, under left side of dash. See Figure . |
