11 51 025 Removing and installing/replacing auxiliary water pump for electrical machine electronics (N55 Hybrid)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
High-voltage hazard!
The following must be strictly observed prior to starting work :
- Observe SAFETY INFORMATION for handling hybrid cars.
WARNING:
Risk of scalding.
Only perform this work after engine has cooled down.
Only perform this work after engine has cooled down.
IMPORTANT:
If a coolant pump that has already been operated is reused, it must be filled with coolant after removal.
Mixture ratio, water: coolant = 1: 1
Protect plug connections against coolant and dirt contamination.
Mixture ratio, water: coolant = 1: 1
Protect plug connections against coolant and dirt contamination.
Recycling:
Catch and dispose of drained coolant in a suitable collecting vessel.
Observe country-specific waste disposal regulations.
Necessary preliminary tasks:
- Release ANTI-ROLL BAR on front axle support only.
- Drain COOLANT for electrical machine electronics.

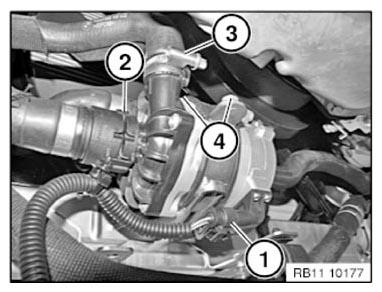

Disconnect plug connection (1).
Unlock and detach coolant hose (2).
Release coolant hose (3).
Installation note:
Note installation position of hose clamps.
Tightening torque 11 53 9AZ .
Release nuts (4) and remove auxiliary water pump downwards.
BLEEDING INSTRUCTIONS must be observed without fail.
