11 51 000 Removing and installing/replacing coolant pump (N52)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of scalding.
Only perform this work after engine has cooled down.
Only perform this work after engine has cooled down.
Recycling:
Catch and dispose of drained coolant in a suitable container.
Observe country-specific waste disposal regulations.
IMPORTANT:
If a water pump that has already been operated is reused, it must be filled with coolant immediately after removal.
Mixture ratio, water: coolant = 1: 1
Protect plug connections against coolant and contamination.
Cover plug connections with suitable materials.
Mixture ratio, water: coolant = 1: 1
Protect plug connections against coolant and contamination.
Cover plug connections with suitable materials.
IMPORTANT:
Aluminum-magnesium materials
.
No steel screws/bolts may be used due to the threat of electrochemical corrosion.
A magnesium crankcase requires aluminum screws/bolts exclusively.
Aluminum screws/bolts must be replaced each time they are released .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Joining torque and angle of rotation must be observed without fail (risk of damage) .
No steel screws/bolts may be used due to the threat of electrochemical corrosion.
A magnesium crankcase requires aluminum screws/bolts exclusively.
Aluminum screws/bolts must be replaced each time they are released .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Joining torque and angle of rotation must be observed without fail (risk of damage) .
Installation note:
- All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
- Retaining elements on chassis and suspension and steering parts must be replaced.
Necessary preliminary work:
- Release ANTI-ROLL BAR .
- Drain COOLANT .

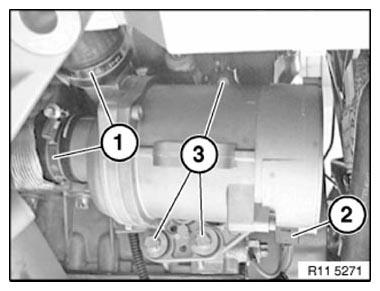

Loosen hose clamps (1).
Detach coolant hoses.
Disconnect plug connection (2).
Release screws (3).
Tightening torque 11 51 1AZ .
Remove electric coolant pump in downward direction.
Installation note:
Replace aluminum screws .
Installation note:
If the electric water pump is reused, it must be rotated one turn due to the breakaway torque at the blade wheels.
Assemble engine.
