Top View, Front End

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

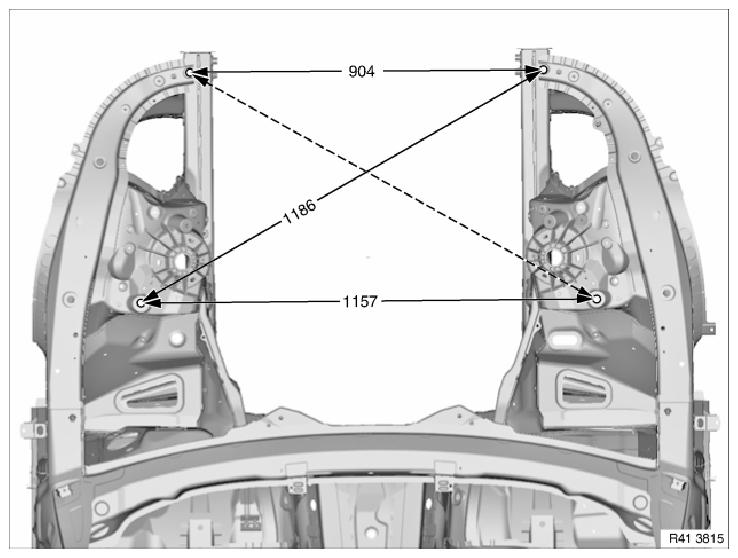

Fig 1: Engine Compartment Under Body Frame Alignment Control Dimensions And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.
