11 22 510 Removing and installing/replacing flywheel (transmission removed - S63)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks:
- Remove transmission. See REMOVING TWIN-CLUTCH GEARBOX or REMOVING MANUAL TRANSMISSION .

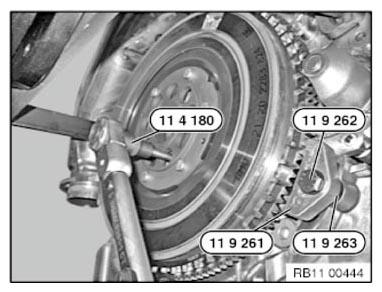

Fix flywheel in position with special tool 11 9 260 as shown in graphic.
Release flywheel bolts with special tool 11 4 180 /
Twin-clutch gearbox:

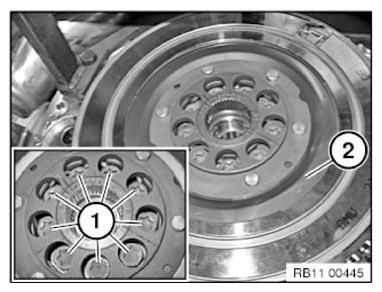

Release all flywheel bolts (1).
Remove all special tools.
Remove flywheel (2).
Installation note:
Clean thread of flywheel bolts in crankshaft.
Flywheel (2) is secured with an alignment pin.
Fit new flywheel bolts.
Tightening torque 11 22 1AZ .
