11 23 010 Removing and installing/replacing vibration absorber (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove charge air cooler on left and right. See REMOVING LEFT CHARGE AIR COOLER and REMOVING RIGHT CHARGE AIR COOLER .
Remove DRIVE BELT for air conditioning compressor for the air conditioning
Remove alternator DRIVE BELT
Remove BELT PULLEY FOR A/C SYSTEM

Release screw (1).

Tightening torque 11 28 1AZ .

Remove belt tensioner with idler pulley (2).

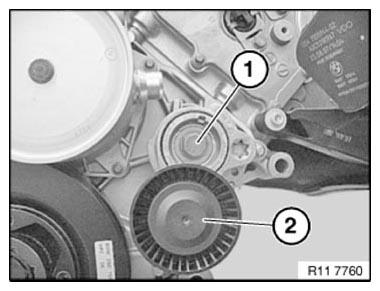

Fig 1: Identifying Belt Tensioner/Idler Pulley And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 8 090 with three screws (1) to vibration damper.

Secure special tool 11 8 090 with belt tensioner bolt (2) to timing case cover.

Tightening torque 11 28 1AZ .

NOTE: A 3/4 inch tool is needed to release the central bolt.

Release central bolt on vibration damper.

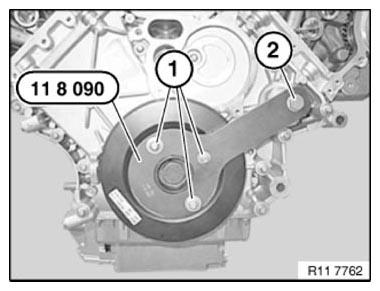

Fig 2: Identifying Special Tool, Screws, And Belt Tensioner Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Secure central bolt with special tool 00 9 140 or 11 3 460 .

Position special tool 11 3 460 on special tool 11 8 090 .

Adjust special tool 11 9 453 on special tool 11 9 454 using clamping screw to 0° on scale.

Tightening torque 11 23 1AZ .

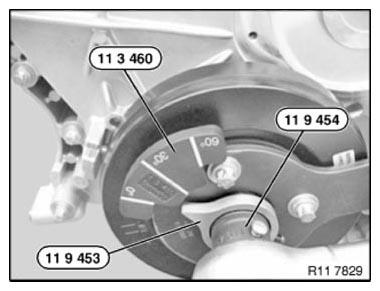

Fig 3: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
