11 24 571 Replace all connecting rod bearings (N63O1)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Note GRINDING STAGES ON CRANKSHAFT .

Necessary preliminary work:

Remove all PISTONS

Install new connecting rod bearing shells.

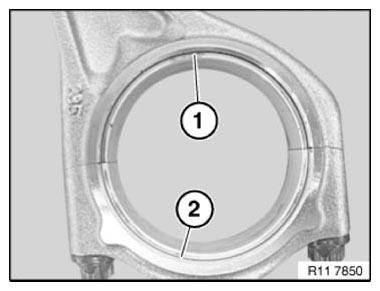

Install one blue bearing shell (1) and one red bearing shell (2) in each connecting rod.

Graphic N63.

Fig 1: Identifying Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The bearing shells on the connecting rod are coded.

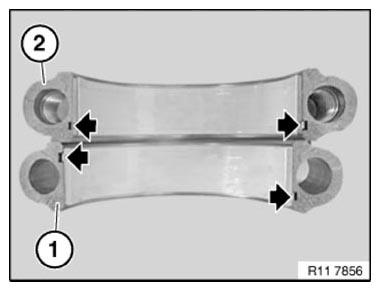

Connecting rod bearing cap (1): the red bearing shell is engaged and the fastening notches are on the left and right sides of the bearing shell (see arrows).

Connecting rod (2): the blue bearing shell is fitted and the fastening notches are one side of the bearing shell (see arrows).

Fig 2: Identifying Notches In Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: New connecting rods must be vacuum cleaned prior to installation.
Do not use compressed air to blow off cracked areas.

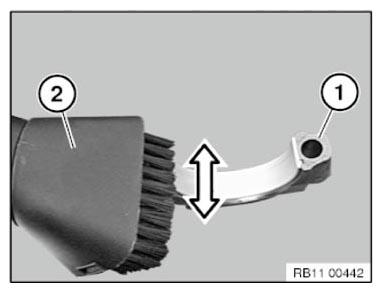

Use a commercially available vacuum cleaner (2) to vacuum clean cracked areas (1).

Fig 3: Cleaning Cracked Areas Using Vacuum Cleaner

Courtesy of BMW OF NORTH AMERICA, INC.

Check connecting-rod bearing play.

Piston in BDC position.

Fit special tool 00 2 590 (Plastigage type PG 1) to oil-free crankshaft.

Fit bearing caps so that matching numbers match up.

Fig 4: Identifying BDC Position

Courtesy of BMW OF NORTH AMERICA, INC.

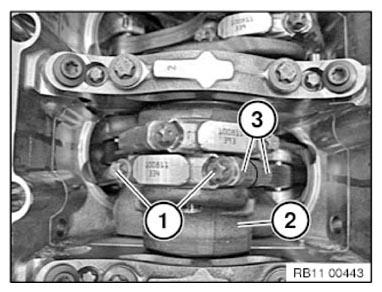

IMPORTANT: Do not turn connecting rod and crankshaft (2).

Use connecting rod bolts (1) to check connecting-rod bearing play.

Secure connecting rod bolts (1) with special tool 00 9 120 .

Tightening torque 11 24 1AZ .

Note the pairing letters (3).

Fig 5: Identifying Crankshaft, Connecting Rod Bolts, And Pairing Letters

Courtesy of BMW OF NORTH AMERICA, INC.

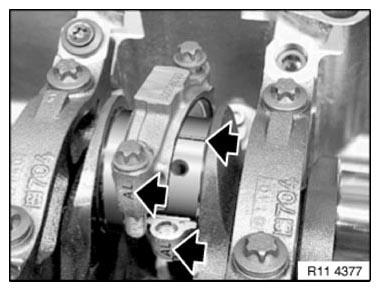

Remove bearing cap and read off radial clearance at width of crushed plastigage with assistance of measuring scale.

Refer to CONNECTING-ROD BEARING PLAY .

Remove Plastigage.
Lubricate crankshaft and bearing shells.
Install new connecting rod bolts.

Fig 6: Checking Radial Clearance
Courtesy of BMW OF NORTH AMERICA, INC.

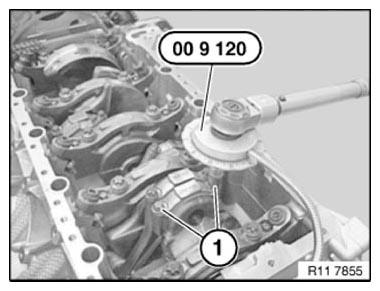

Secure connecting rod bolts with special tool 00 9 120 .

Tightening torque 11 24 1AZ .

Graphic N63.

Fig 7: Securing Connecting Rod Bolts Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
