11 33 062 Removing and installing/replacing all hydraulic valve clearance compensating elements (HVC) (N63O1)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 480

Necessary preliminary work:

Remove all rocker arms. See REMOVING ALL ROCKER ARMS, LEFT SIDE or REMOVING ALL ROCKER ARMS, RIGHT SIDE .

Remove hydraulic valve clearance compensating elements (1) in direction of arrow.

If the valve clearance compensating elements are to be reused, set them down in an orderly fashion on special tool 11 4 480 .

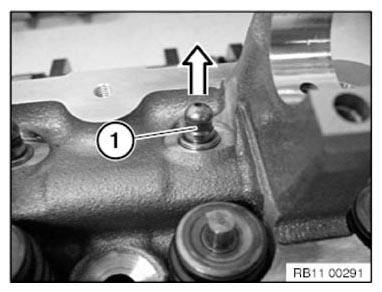

Fig 1: Removing Hydraulic Valve Clearance Compensating Element

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
