11 33 052 Removing and installing/replacing all rocker arms on left side (N63O1)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 480
11 4 481
Cylinder bank 2

Cylinder bank 5 to 8

IMPORTANT: Roller cam followers on intake side are divided into bearing classes.
The tolerance classes are marked according to the graphic in numbers from 1 to 5.
Already used roller cam followers may only be reused in the same position.

Separate roller cam followers from hydraulic valve clearance compensating element and remove.

Place all roller cam followers in order in special tool 11 4 481 .

Installation note:

Prior to installation of intermediate levers, ensure proper installation position of roller cam followers.

Necessary preliminary work:

Remove INTERMEDIATE LEVER on left.
Remove left EXHAUST CAMSHAFT .

IMPORTANT: Used rocker arms (1) may only be reused in the same position.
Tolerance classes are not required.

Remove rocker arm (1) and set down in neat order in special tool 11 4 480 .

Install rocker arm (1).

Align all rocker arms (1) (see arrows).

Fig 1: Installing Rocker Arm

Courtesy of BMW OF NORTH AMERICA, INC.

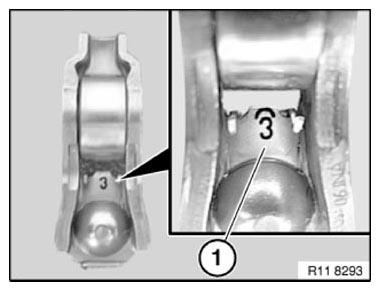

Classification of intake roller cam follower.

Standard: Number 3. standard.

Number 2. slow idle.

Number 4. fast idle.

The classification that was installed ex works must be installed before a repair.

Fig 2: Identifying Classification Mark On Intake Roller Cam Follower

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
