11 31 574 Adjusting camshaft timing on right side (N63O1)

Special tools required:

• 2 249 117
• 2 249 137
• 2 249 140
• 11 9 190
• 11 8 570
• 11 4 350
• 00 9 120

(cylinder bank 1 to 4)

Necessary preliminary work:

• Remove RIGHT-HAND GEAR CASE COVER
• CHECK CAMSHAFT TIMING ON RIGHT SIDE .

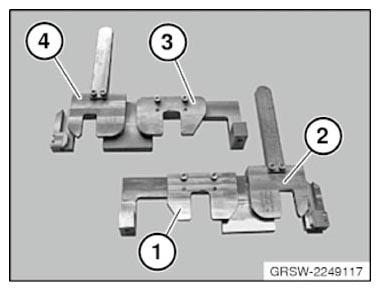

Get set of special tools 2 249 117 ready for securing camshafts.

Fig 1: Identifying Special Tool Set (2 249 117)

Courtesy of BMW OF NORTH AMERICA, INC.

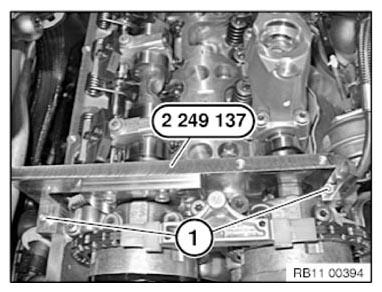

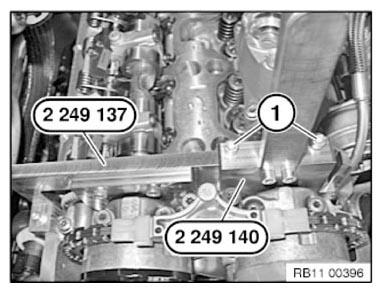

Position special tool 2 249 137 on intake camshaft.

Position exhaust camshaft with special tool 2 249 140 and attach to special tool 2 249 137 .

Fig 2: Checking Timing Adjustment - Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

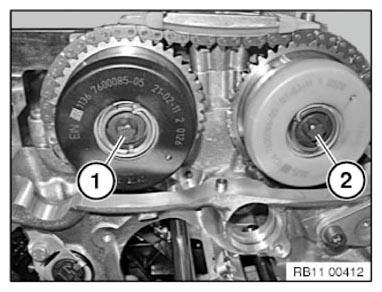

Release central bolts (1 and 2) of intake and exhaust camshaft adjusters.

Installation note:

Replace central bolts after releasing.

Fig 3: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjusters

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

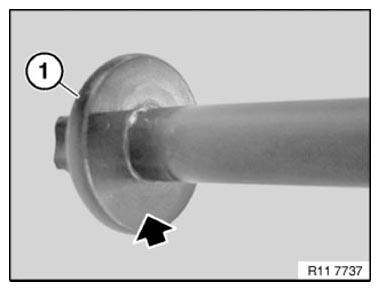

Coat contact surface of new central bolt (1) with copper paste.

Fig 4: Identifying Central Bolt Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

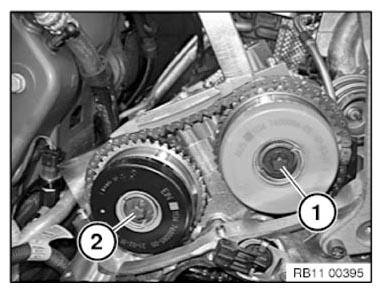

Insert central bolts (1 and 2).

Fig 5: Identifying Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190 .

Fig 6: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1

Courtesy of BMW OF NORTH AMERICA, INC.

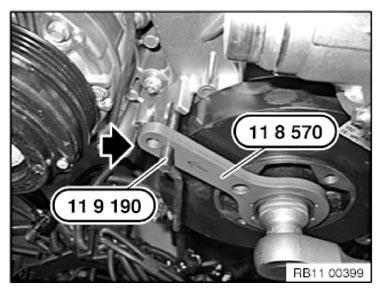

Position engine with special tool 11 9 190 in front of special tool 11 8 570 as shown in graphic.

Fig 7: Positioning Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The tightening sequence begins with the exhaust camshaft.

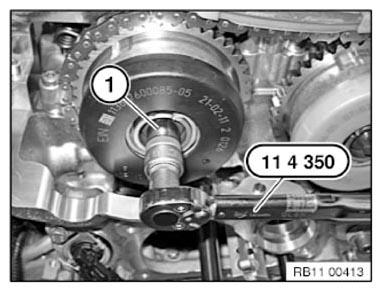

Insert central bolt (1) of exhaust camshaft with special tool 11 4 350 .

Jointing torque 5 Nm  .

Fig 8: Inserting Central Bolt Of Exhaust Camshaft Using Special Tool 11 4 350

Courtesy of BMW OF NORTH AMERICA, INC.

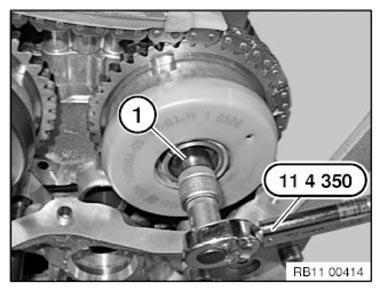

Insert central bolt (1) of intake camshaft with special tool 11 4 350 .

Jointing torque 5 Nm  .

Fig 9: Inserting Central Bolt Of Intake Camshaft Using Special Tool 11 4 350

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190 .

Fig 10: Positioning Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

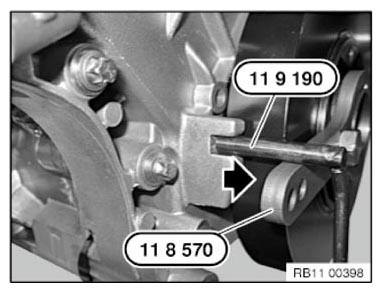

Turn the engine at the central bolt further until the special tool 11 9 190 can be positioned in the gear case cover.

The engine is now in the 150° crankshaft position before the TDC firing position of cylinder 1.

Fig 11: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten central bolts beginning with the exhaust camshaft.

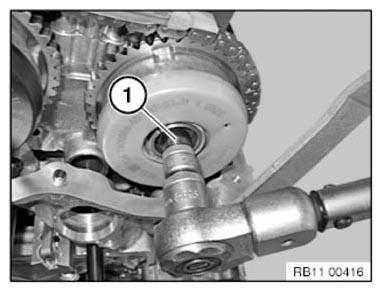

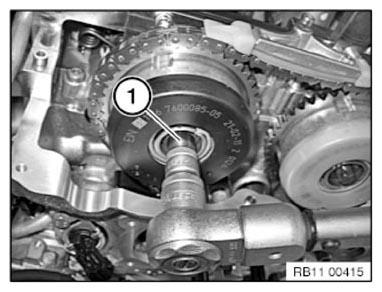

Insert central bolt (1) of exhaust camshaft with torque.

Tightening torque of 30 Nm

Fig 12: Tightening Central Bolts Of Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with torque.

Tightening torque of 30 Nm

Fig 13: Tightening Central Bolts Of Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

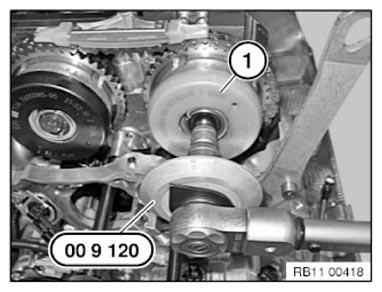

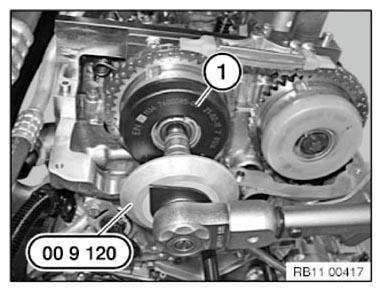

Insert central bolt (1) of exhaust camshaft with special tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90°

Fig 14: Inserting Central Bolt Of Exhaust Camshaft Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with special tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90°

Remove special tool 2 249 117 .

Fig 15: Inserting Central Bolt Of Intake Camshaft Using Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tools 11 9 190 and 11 8 570 .

Crank engine at central bolt twice in direction of engine rotation until engine returns to 150° before cylinder no. 1 firing TDC position  .

Secure vibration damper with special tools 11 8 570 and 11 9 190 in the 150° TDC firing position, cylinder 1  .

Fig 16: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 2 249 137 on intake camshaft and check timing adjustment.

Fig 17: Checking Timing Adjustment - Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 2 249 140 on the exhaust camshaft and check timing adjustment.

Fig 18: Checking Timing Adjustment - Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
