11 65 180 Removing and installing/renewing heat shield at top (N63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove both INTAKE FILTER HOUSINGS .
Remove both control sensors. See REPLACING LEFT CONTROL SENSOR and REPLACING RIGHT CONTROL SENSOR .

Release screws (1).

Lift out holder.

Fig 1: Identifying Holder Screws

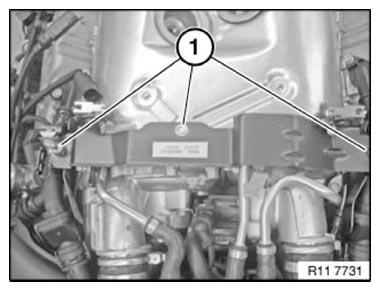

G10058010

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Tightening torque 11 65 3AZ .

Fig 2: Identifying Screw

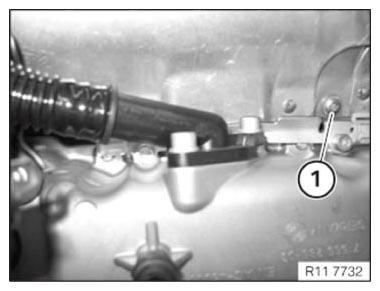

G10058011

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Tightening torque 11 65 3AZ .

Fig 3: Identifying Screw

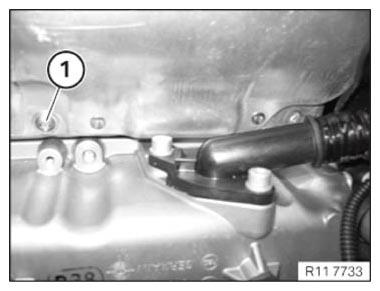

G10058012

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1).

Detach wire ring (2) and set down behind oxygen sensor.

Fig 4: Identifying Wire Ring And Retaining Clip

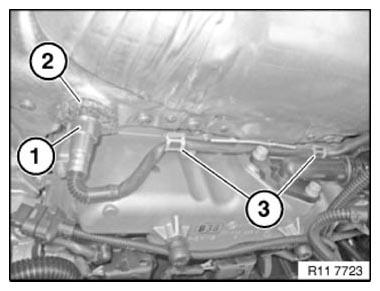

G10058013

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1).

Detach wire ring (2) and set down behind oxygen sensor.

Fig 5: Identifying Retaining Clip And Wire Ring

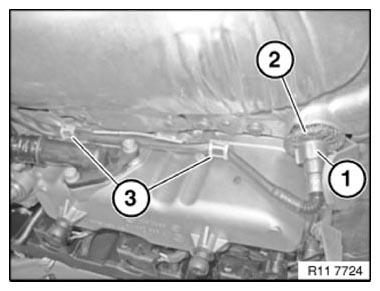

G10058014

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 3AZ .

NOTE: For purposes of clarity, the graphic shows the oxygen sensor removed.

Fig 6: Identifying Screws

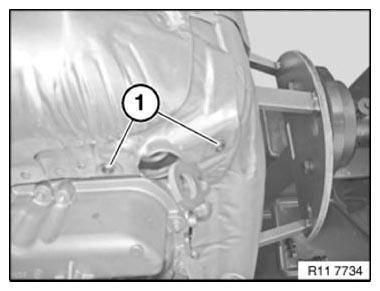

G10058015

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 3AZ .

Lift out heat shield.

Fig 7: Identifying Heat Shield Screws

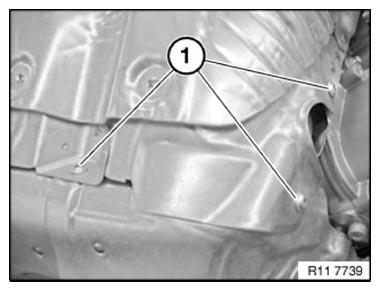

G10058016

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
