11 65 010 Removing and installing/replacing vacuum reservoir (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove STIFFENING PLATE
Lower FRONT AXLE SUPPORT .

Release vacuum line (1).

Unfasten screws (2).

Tightening torque: 11 65 10AZ .

Unclip vacuum line from holder (3).

Remove vacuum reservoir (4).

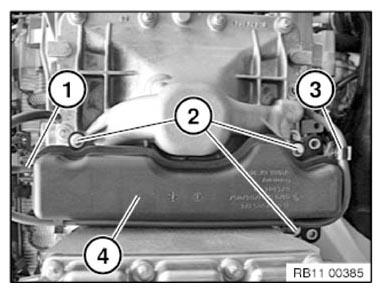

Fig 1: Identifying Vacuum Reservoir, Vacuum Line, Holder, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check vacuum connections.

Observe BMW diagnosis instructions.
