11 14 080 Removing and installing timing case cover, top left (N63O1)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Timing case cover, cylinders 5-8
Necessary preliminary work:
- Remove left CHARGE AIR COOLER
- Remove coolant pipe.

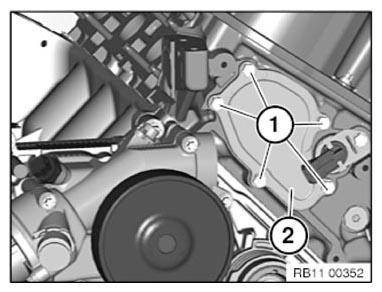

Release screws (1).
Tightening torque 11 14 3AZ .
Remove timing case cover (2).
Installation note:

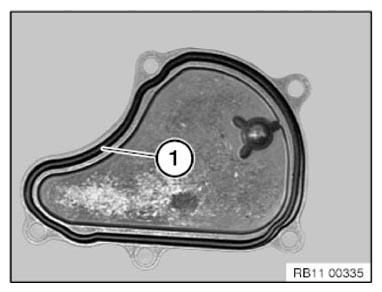

Replace gasket (1).
Assemble engine.
