11 13 010 Removing and installing/replacing upper oil sump section (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Drain off ENGINE OIL
Lower FRONT AXLE
Remove LOWER OIL SUMP SECTION
Remove OIL PUMP .
Release supply/return lines on oil filter
Release holders of supply/return lines on oil sump
Detach plug from oil pressure switch

Unclip wiring harness on oil sump

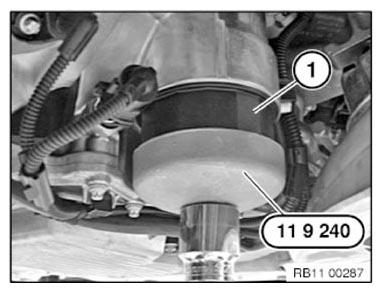

Release oil filter cover (1) with special tool 11 9 240 .

Tightening torque 11 42 1AZ .

Graphic without reinforcement plate.

Fig 1: Releasing Oil Filter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove oil filter (1).

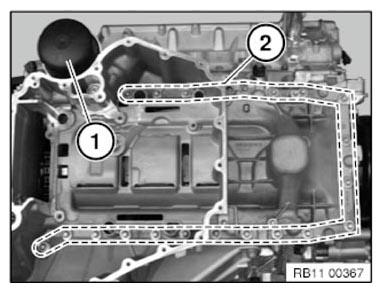

Release bolts in area of line (2).

Tightening torque 11 13 2AZ .

Fig 2: Identifying Oil Filter And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

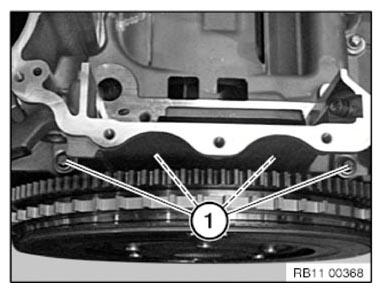

Release screws (1).

Release 4 bolts on transmission side.

Graphic without transmission.

Installation note:

Clean gasket debris from sealing surfaces with special tool 11 4 470 .

Replace gasket.

Modify oil pressure switch if replacing oil sump.

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
