11 13 000 Removing and installing, sealing or replacing oil sump (N55, RWD)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 8 780

IMPORTANT: Aluminium screws/bolts are permitted with and without color coding (blue).
Aluminium screws/bolts must be replaced each time they are released .
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

Lower FRONT AXLE .
Drain and add ENGINE OIL .
Detach power steering pump and set it aside (Dynamic Drive only). See REMOVING HYDRAULIC POWER STEERING PUMP (WITH DYNAMIC DRIVE) and REMOVING HYDRAULIC PUMP FOR DYNAMIC DRIVE .

Release screws (1).

Remove LEFT ENGINE SUPPORT ARM .

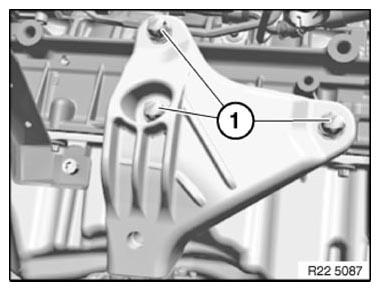

Fig 1: Identifying Screws Of Engine Support Arm

G10055967

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Release screw (2).

Remove holder (3) for deflecting element.

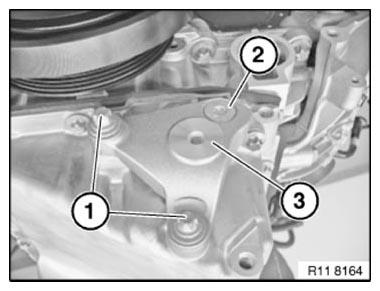

Fig 2: Identifying Holder And Screws

G10055968

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip electrical lines (2) of monitoring sensors from holder (3).

Disconnect plug connections (1) of monitoring sensors and lay to one side.

Release bolts (5) on gearbox.

Tightening torque 11 13 7AZ .

Lay holder (3) to one side.

Disconnect plug connection (4) on oil level sensor.

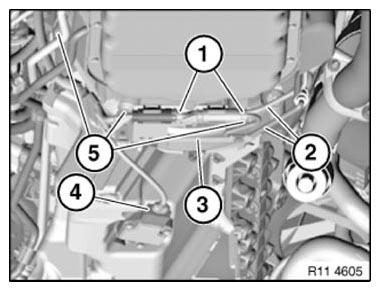

Fig 3: Identifying Electrical Lines, Holder, Plug Connections, And Bolts

G10055969

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts along line (1).

If necessary, remove oil level sensor.

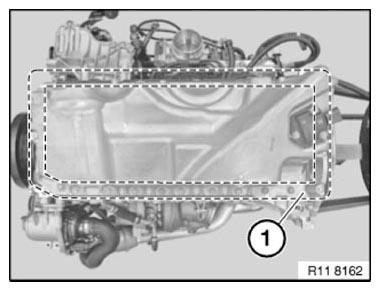

Fig 4: Locating Bolts

G10055970

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Screw (1) M8x92 mm.

Screws (2) M8x112 mm

Screws (3) M8x92 mm

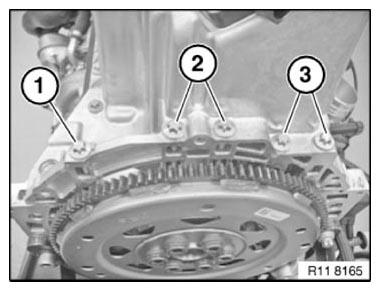

Fig 5: Identifying Screws

G10055971

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Screw (1) M8x50 mm.

Fig 6: Identifying Screw

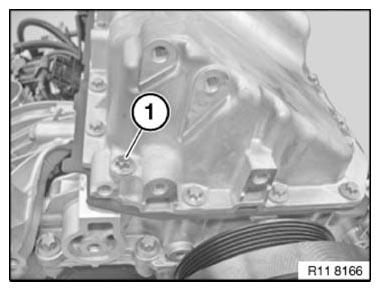

G10055972

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replacing all O-rings and seals (1).

Aluminium screws (2) M8x92 mm and M8x112 mm.

Tightening torque 11 13 3AZ .

Aluminium screw (3) M8x50 mm.

Tightening torque 11 13 4AZ .

Aluminium screws (4) M8x26 mm.

Tightening torque 11 13 2AZ .

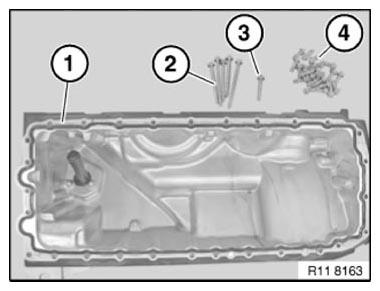

Fig 7: Identifying Seals And Screws

G10055973

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Special tool 11 8 780 is only required if gear is not installed as mechanical stop.

Secure special tool 11 8 780 with two bolts on crankcase.

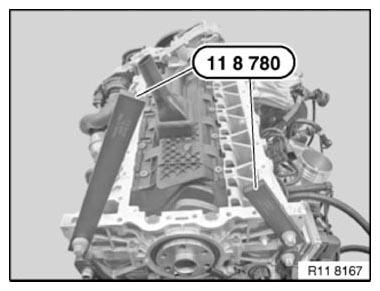

Fig 8: Identifying Special Tool (11 8 780)

G10055974

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Engine removed:

Position oil sump (1) with no gaps until it contacts special tool 11 8 780 .

Installation note:

Engine installed:

Position oil sump (1) with no gaps until it contacts gearbox housing.

Bolt on oil sump (1).

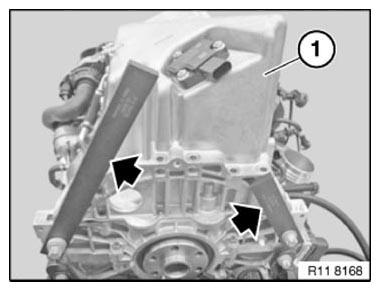

Fig 9: Positioning Oil Sump

G10055975

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
