11 13 000 Removing and installing, sealing or replacing oil sump (N55, AWD)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Aluminium screws/bolts are permitted with and without color coding (blue).
Aluminium screws/bolts must be replaced each time they are released .
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

Remove LEFT CHARGE AIR DUCT .
Drain and add ENGINE OIL .
Remove FRONT AXLE DIFFERENTIAL .
Remove bearing support.
Detach power steering pump and set it aside (Dynamic Drive only). See REMOVING HYDRAULIC POWER STEERING PUMP (WITH DYNAMIC DRIVE) and REMOVING HYDRAULIC PUMP FOR DYNAMIC DRIVE .
Remove ENGINE SUPPORT ARM .
Detach deflecting element and holder from oil sump.

NOTE: The lines must be detached from the oil sump on vehicles with automatic transmission; if necessary, detach oil pump and place to one side.

Release bolts (3) on transmission.

Tightening torque 11 13 6AZ .

Detach return hose (2).

IMPORTANT: For vehicles with four-wheel drive or automatic transmission, bolts of different lengths are installed for mounting the oil sump.
Observe different tightening torques.

Release bolts along line (1).

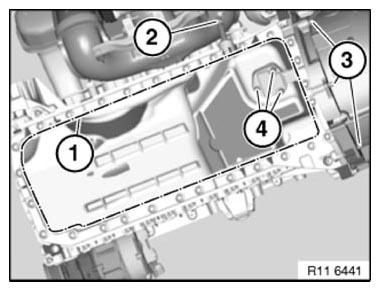

Fig 1: Identifying Return Hose And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

For vehicles with four-wheel drive or automatic transmission:

Tightening torque 11 13 2 AND 3AZ .

Additionally for vehicles with four-wheel drive:

Tightening torque 11 13 4AZ .

Installation note:

Replace aluminium screws.

If necessary, release nuts (4). Remove oil level sensor.

Tightening torque 11 13 7AZ .

Installation note:

Replace sealing ring.

IMPORTANT: There must be no adhesive residues in the lower crankcase section retaining threads.
Clean retaining threads and sealing surfaces.

Installation note:

Replace all gaskets.

Assemble engine.
