Engine identification

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Engine number at the marked surface.

Replacement drives are already assigned a number containing the identification and engine number at the factory.

The old drive number must be imprinted for replacement crankcases.

Magnesium crank cases feature a label, the engine number does not need to be embossed.

N51/N52/N52K/N52T/N53/N54/N55

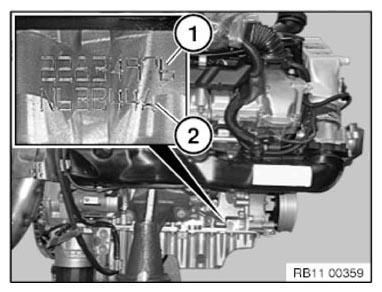

Fig 1: Engine Identification (N51/N52/N52K/N52T/N53/N54/N55)

Courtesy of BMW OF NORTH AMERICA, INC.

Position (1) engine number.

Position (2) engine code letters.

N63, N63TU.

S63

N74

S63 to engine number 2001 0052 on right side cyl. 1-4.

S63 from engine number 2001 0053 on left side cyl. l 5-8.

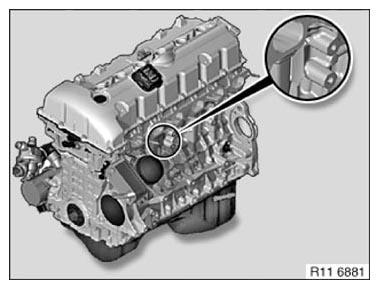

Fig 2: Engine Identification (N63/N63TU/S63/N74)

Courtesy of BMW OF NORTH AMERICA, INC.
