11 00... Service - engine oil (N63O1)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 240

WARNING: Risk of scalding!
When carrying out repair work on the vehicle always wear oil- and heat-resistant protective gloves incl. forearm protection, face guard and protective apron.

IMPORTANT: Perform engine oil service only when engine is at normal operating temperature (> 70°C engine oil temperature).
Observe the exact engine oil filling capacity.
Overfilling the engine with engine oil will result in engine damage .
Test period and drip-off time (at least 10 minutes) must be adhered to.

Recycling:

Catch and dispose of drained engine oil in a suitable collecting vessel.

Observe country-specific waste disposal regulations.

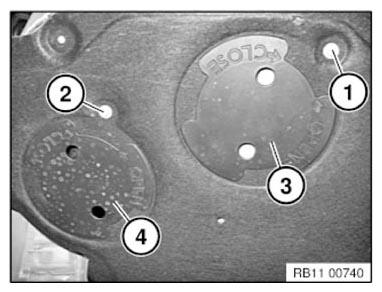

Release screws (1 and 2).

Turn lid (3) for oil drain plug in direction of arrow and remove.

Turn lid (4) for oil filter housing in direction of arrow and remove.

Fig 1: Identifying Lids And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

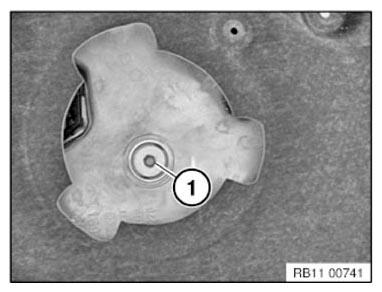

Open oil drain plug (1) of oil sump and drain engine oil.

Tightening torque. 11 13 1AZ .

Fig 2: Identifying Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

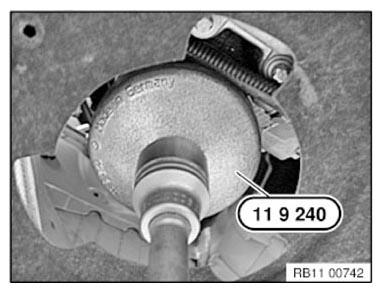

Release oil filter cover with special tool 11 9 240 .

Tightening torque 11 42 1AZ .

Fig 3: Releasing Oil Filter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

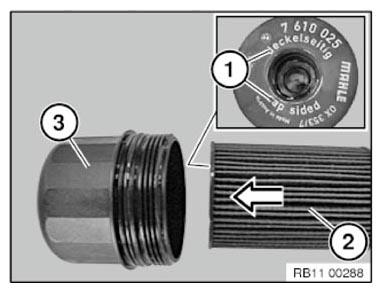

Installation note:

Renew O-ring and coat with engine oil.

Check identification (1) and fit in correct position.

Renew oil filter element (2) and slide into the oil filter cover.

Oil filter element (2) must snap audibly into place.

Fig 4: Installing Oil Filter Element

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing ring.

Insert oil drain plug (1) of oil sump and tighten.

Tightening torque 11 13 1AZ .

NOTE: Pour in ENGINE OIL .

Start engine and run at idle speed.

Switch off engine.

Fig 5: Identifying Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Check oil filter cover and drain plug (1) of oil sump for leaks.

Assemble engine.

Recommendation: Checking oil level:

Park vehicle on a horizontal surface
Allow engine to run at operating temperature for three minutes with increased engine speed (approx. 1100 RPM)
Read off oil level in instrument cluster or on control display
Top up engine oil if necessary
