11 00 Mounting engine on assembly stand (N55)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Aluminium screws/bolts must be replaced each time they are released
.
Aluminium screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .
Aluminium screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .
Necessary preliminary tasks:
- Remove ENGINE

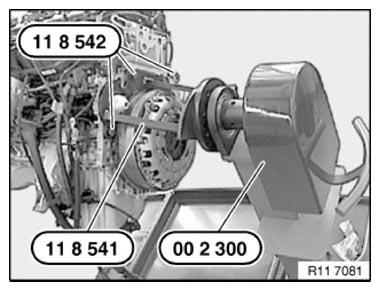

Use special tool 11 8 541 to mount engine on special tool 00 2 300 .
Mount engine or engine block with special tool 11 8 542 on 11 8 541 .
