11 00 670 Securing engine in installation position (N63O1)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 6 100
00 6 130
2 318 635
00 6 050

WARNING: Danger of injury!
Observe following instructions relating to special tool:

Prior to each use, check the special tools for defects, modifications and operational reliability.
Damaged/modified special tools must not be used!
No changes or modifications may be made to the special tools!
Keep special tools dry, clean and free of grease.

IMPORTANT: Before lifting the engine, check the lifting lugs for damage (cracks) and to ensure they are seated securely.

NOTE:

NUMBERING SYSTEM FOR SPECIAL TOOLS has been re-encoded.

IMPORTANT: Special tool 00 6 100 must not be fitted when cross-member (1) is installed!

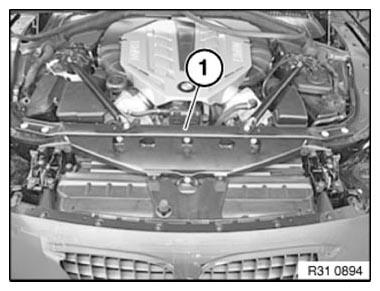

Fig 1: Identifying Cross-Member

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Secure engine compartment lid in service position. See SERVICE POSITION OF ENGINE COMPARTMENT LID or SERVICE POSITION OF ENGINE COMPARTMENT LID (ACTIVE UP TO 09/2011) .
Remove TRIM PANEL for engine compartment lid at side.
Remove underbody protection at front and rear. See REMOVING FRONT UNDERBODY PROTECTION and REMOVING REAR ENGINE UNDERCOVER .
Remove STIFFENING PLATE (AWD only).

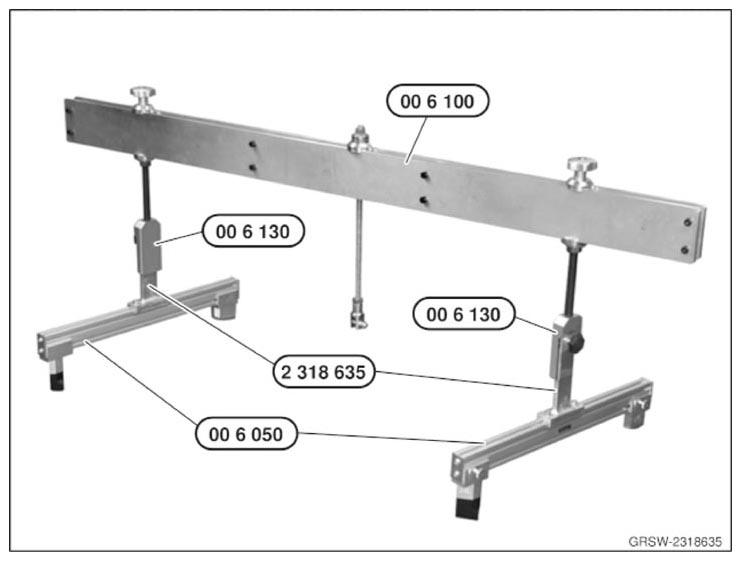

Fig 2: Identifying Special Tools
Courtesy of BMW OF NORTH AMERICA, INC.

Completion of cross-member 00 6 100 with adapters 00 6 130

T-pieces 2 318 635 and facings 00 6 050.

NOTE: Contact points (1) for special tool 00 6 050 are pictured.

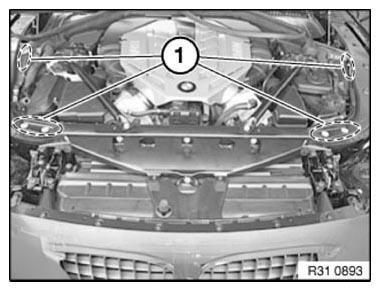

Fig 3: Identifying Contact Points For Special Tool (00 6 050)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Position transverse member 00 6 100 with a 2nd person helping on contact points ().

WARNING: Danger of injury!
Align all struts and feet.
Tighten down all screws and nuts on cross-member 00 6 100 .
Attach hook of engine lifting beam in lifting eye.

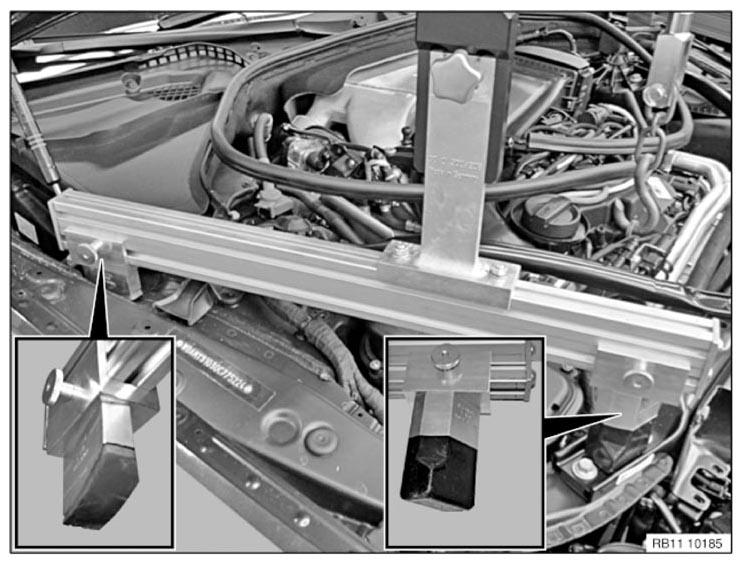

Fig 4: Aligning/Preparing Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure that supports 00 6 050/53 and 00 6 050/52 are correctly seated.

Slightly pretension the spindle of the engine support beams.

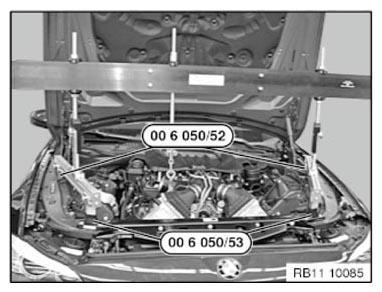

Fig 5: Identifying Engine Supports And Spindles

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.

Release screws (1) of engine mount.

Tightening torque 22 11 1AZ .

Raise engine approx. 10 mm with cross member.

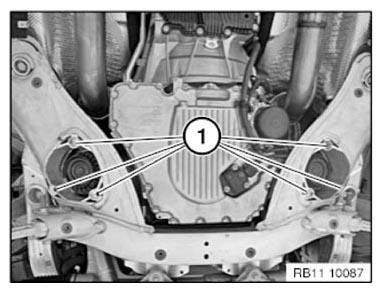

Fig 6: Identifying Engine Mount Screws
