11 00 039 Checking compression of all cylinders (N55)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: High voltage - danger to life!
Interrupt power supply to ignition coils.

Necessary preliminary work:

Remove SPARK PLUGS .

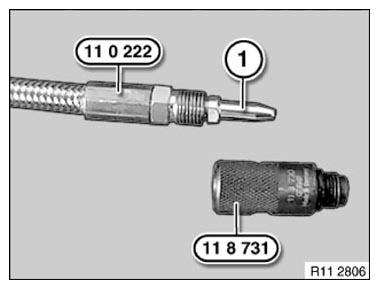

Unscrew tip (1) from special tool 11 0 222 .

IMPORTANT: Then check the Schrader valve that is now visible for secure seating.

Fig 1: Identifying Special Tools (11 8 731 And 11 0 222)

Courtesy of BMW OF NORTH AMERICA, INC.

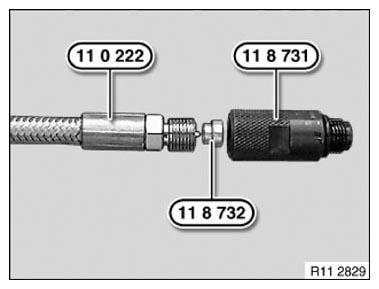

Prepare special tool 11 0 222 in conjunction with 11 8 732 and 11 8 731 .

Fig 2: Preparing Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

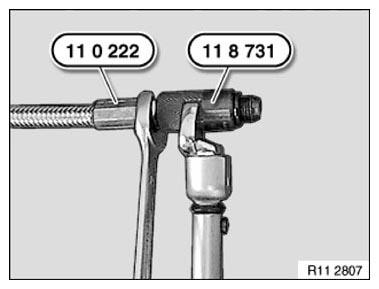

Screw special tool 11 0 222 into special tool 11 8 731 to 10 Nm.

IMPORTANT: Oil thread on special tool 11 8 731 .

Fig 3: Screwing Special Tool (11 0 222) Into Special Tool (11 8 731)

Courtesy of BMW OF NORTH AMERICA, INC.

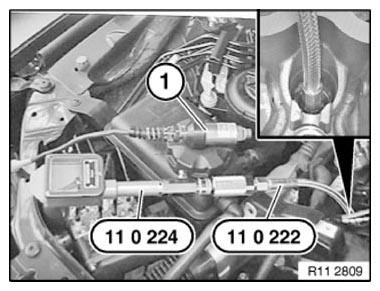

Screw special tool 11 0 222 by hand into spark plug thread and connect special tool 11 0 224 .

Depress accelerator pedal and actuate starter until compression pressure stops rising.

Nominal values, compression pressure: see TECHNICAL DATA

Fig 4: Checking Cylinder Compression Pressure
Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine

Delete fault memory.
