11 12 006 Removing and installing/sealing right cylinder head cover (N63O1)

Special tools required:

• 11 4 470

Necessary preliminary tasks:

• Disconnect NEGATIVE TERMINAL .
• Remove ACOUSTIC COVER
• Remove right-hand INTAKE SILENCER HOUSING .
• Remove right INTERCOOLER .
• Disconnect FUEL DELIVERY LINE .
• Detach engine wiring harness and wiring harness for injectors and set aside.
• Partially release positive wire to the alternator and set aside.
• Remove IGNITION COILS , cylinders 1-4.
• Remove HIGH PRESSURE PUMP .
• Remove INJECTORS , cylinders 1-4.
• Remove VACUUM PUMP .
• Remove CATALYTIC CONVERTER for cylinders 1-4.

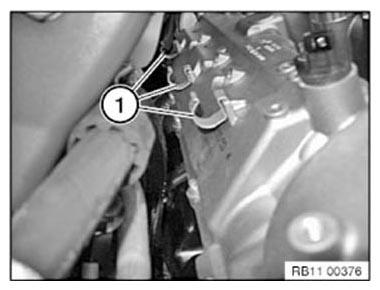

Remove retaining clips (1).

Partially release the filling channel for the washer system.

Fig 1: Identifying Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

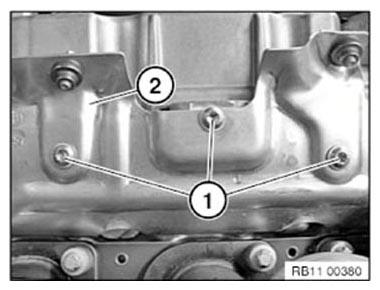

Release screws (1).

Remove heat shield (2).

Fig 2: Identifying Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

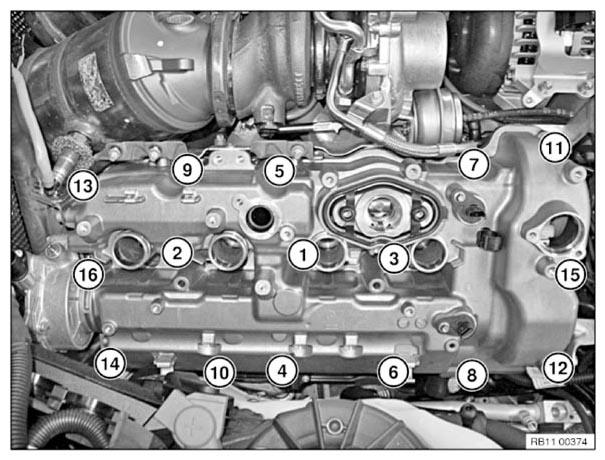

Release screw connections in the sequence (16 to 1).

Remove cylinder head cover.

Fig 3: Right Cylinder Head Cover Bolts Tightening/Loosening Sequence (N63 O1)

Courtesy of BMW OF NORTH AMERICA, INC.

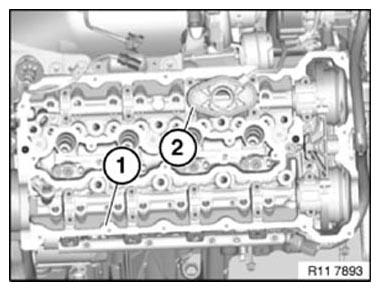

Clean sealing surface (1 and 2) with special tool 11 4 470 .

Fig 4: Identifying Sealing Surface And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

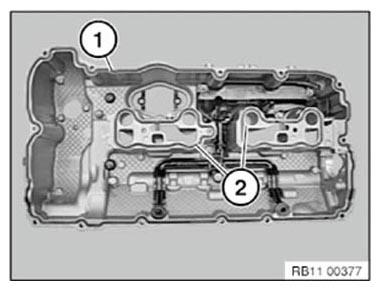

Replace profile seals (1 and 2).

Fig 5: Identifying Profile Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

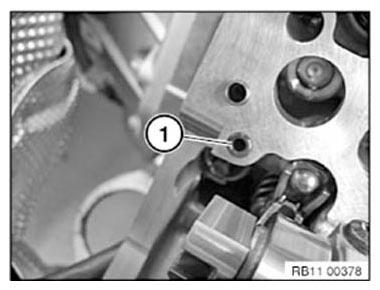

Renew sealing ring (1) for lubrication of vacuum pump.

Fig 6: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

It is important to insert screws (15 and 16) for exact positioning of the camshaft sensors.

Fit cylinder head cover.

Position screws (15 and 16).

Release screws again by a 90° turn.

Secure cylinder head cover in sequence (1 to 16) in two work steps.

Tightening torque 11 12 3AZ .

Fig 7: Right Cylinder Head Cover Bolts Tightening/Loosening Sequence (N63 O1)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
