11 15 007 Replacing connecting line on left

Necessary preliminary tasks:

• Remove AIR INTAKE SILENCER HOUSING ON LEFT

Unclip plugs (1 and 2) from holder.

Unlock the plugs (1 and 2) and disconnect them.

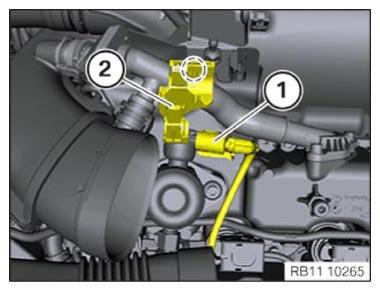

Fig 1: Identifying Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Unlock the holder (2) and carefully guide it out by removing upward.

Fig 2: Identifying Connector And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2).

Remove holders (3) upwards.

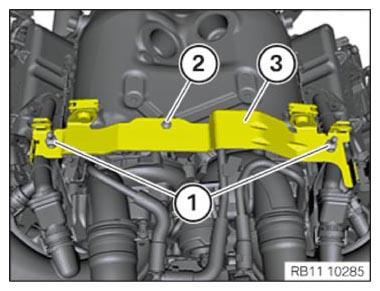

Fig 3: Identifying Carrier Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out holder (3) towards top.

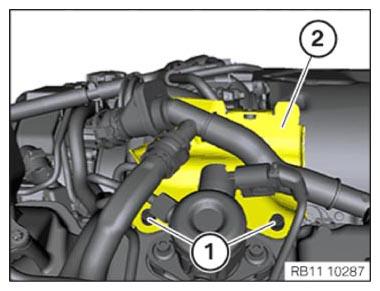

Fig 4: Identifying Carrier Plate Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1:

1. Unlock the retainer.
2. Pull off the retainer together with the line.

Pull the connecting line off the clean air pipe and engine crankcase ventilation line.

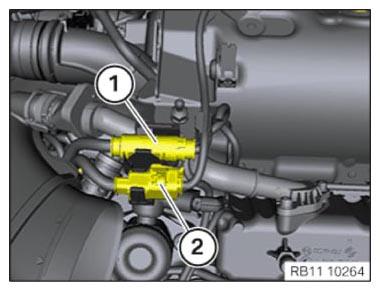

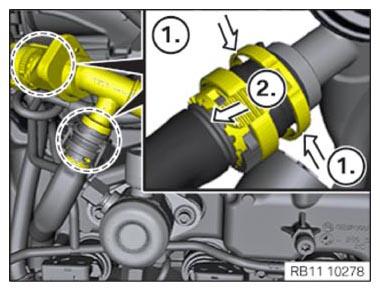

Fig 5: Unlocking And Pulling Off Retainer With Line

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

Pull the line (1) gently in the direction indicated by the arrow.

At the same time, use a screwdriver (3) to unlock the latch mechanisms (2) one after the other.

Pull the connecting line off the clean air pipe and engine crankcase ventilation line.

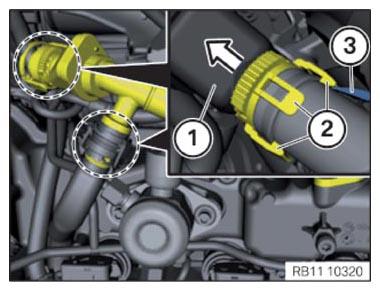

Fig 6: Pulling Connecting Line Off Clean Air Pipe And Engine Crankcase Ventilation Line

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque 11 12 10AZ .

Detach the connecting line (1) from the cylinder head cover by pulling it upward.

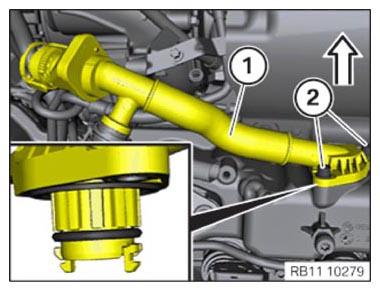

Fig 7: Detaching Connecting Line

Courtesy of BMW OF NORTH AMERICA, INC.

Conduct visual inspection to check for loose parts.

Remove any loose parts that may be on the oil separator.

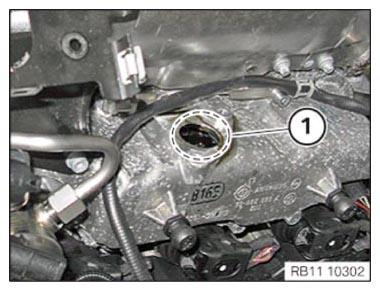

Fig 8: Identifying Area For Visual Inspection

Courtesy of BMW OF NORTH AMERICA, INC.
