11 15 002 Replacing engine crankcase ventilation line for cylinders 1-4 (N63): Notes

Necessary preliminary tasks:

• Disconnect BATTERY EARTH LEAD
• Remove AIR INTAKE SILENCER HOUSING on right side
• Remove INTAKE PORT

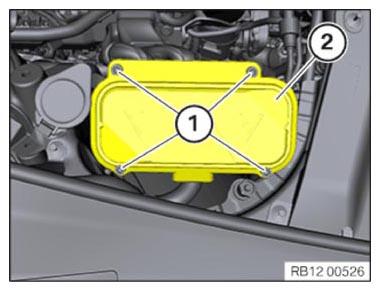

Release screws (1).

Tightening torque 12 90 2AZ .

Remove electronics box cover (2).

Fig 1: Identifying Electronics Box Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

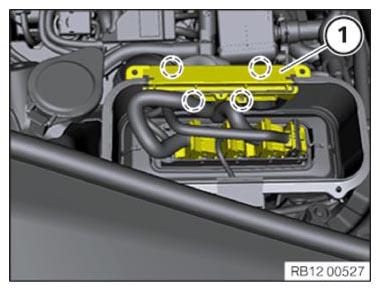

Unclip grommet hold-down device (1) and remove.

Fig 2: Identifying Grommet Hold-Down Device

Courtesy of BMW OF NORTH AMERICA, INC.

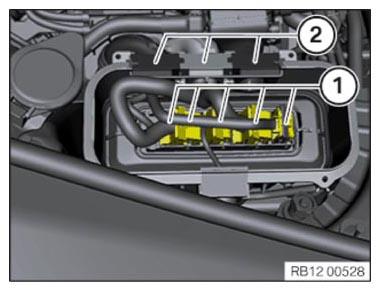

Unlock all connectors (1) from control unit and disconnect.

Detach rubber grommets (2) from electronics box. Place wiring harnesses to the side.

Installation note:

Make sure grommets are correctly seated (watertightness).

Fig 3: Identifying Connectors And Rubber Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

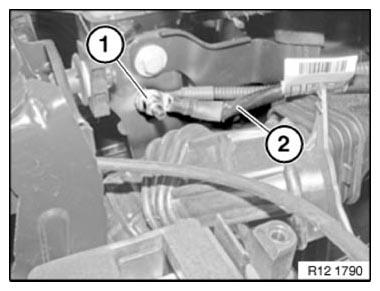

Slacken nut (1).

Tightening torque 12 51 1AZ .

Detach earthing cable (2).

Fig 4: Identifying Battery Earth Lead And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

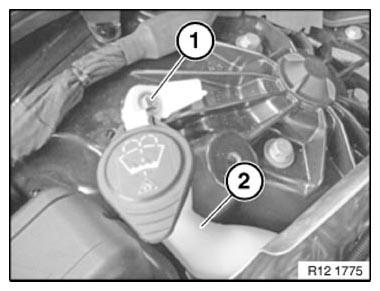

Release screw (1).

Lay filler neck (2) for windscreen washer fluid to one side.

Fig 5: Identifying Filler Neck And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 12 90 1AZ .

Unclip coolant lines at clamp (2) from electronics box.

Fig 6: Identifying Electronics Box, Clamp, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

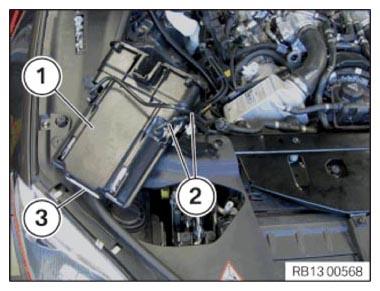

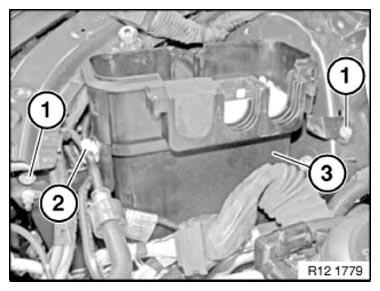

Carefully feed out the electronics box (1) complete with control unit upwards and place to one side.

Installation note:

When installing the electronics box (1), insert guide (3) on engine support.

Fig 7: Identifying Electronics Box, Coolant Lines And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

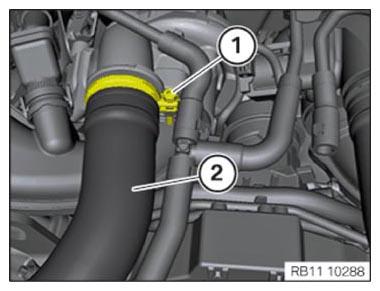

Release clamp (1).

Tightening torque 13 71 8AZ .

Bend the charge air pipe (2) slightly to the side.

Check the gasket on the exhaust turbocharger.

replacing if necessary.

Fig 8: Identifying Charge Air Pipe And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

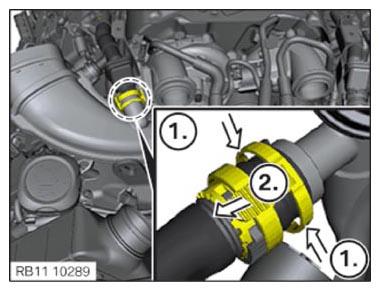

Version 1:

1. Unlock the retainer.
2. Pull off the retainer together with the line.
   Fig 9: Unlocking Retainer And Pulling Off Connecting Line

   Courtesy of BMW OF NORTH AMERICA, INC.

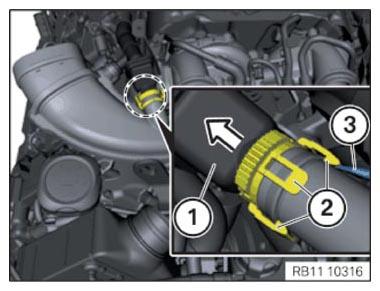

Version 2:

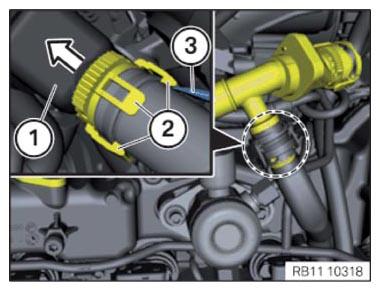

Pull the line (1) gently in the direction indicated by the arrow.

At the same time, use a screwdriver (3) to unlock the latch mechanisms (2) one after the other.

Pull the connecting line off the clean air pipe and engine crankcase ventilation line.

Fig 10: Unlocking Latch Mechanisms And Pulling Off Connecting Line

Courtesy of BMW OF NORTH AMERICA, INC.

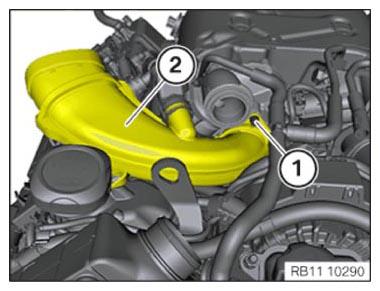

Release screw (1).

Tightening torque 13 71 1AZ .

Pull clean air pipe (2) from exhaust turbocharger.

Fig 11: Identifying Clean Air Pipe And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

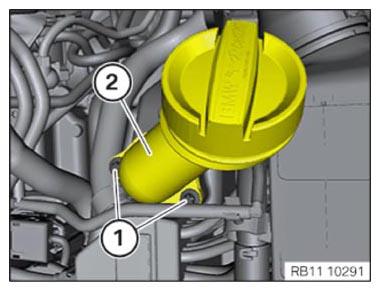

Release screws (1).

Remove oil filler neck.

Fig 12: Identifying Oil Filler Neck And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

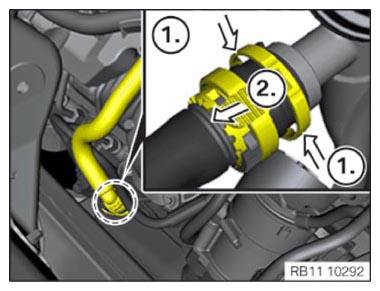

1. Unlock the retainer.
2. Pull off the retainer together with the line.
   Fig 13: Unlocking Retainer And Pulling Off Ventilation Line

   Courtesy of BMW OF NORTH AMERICA, INC.

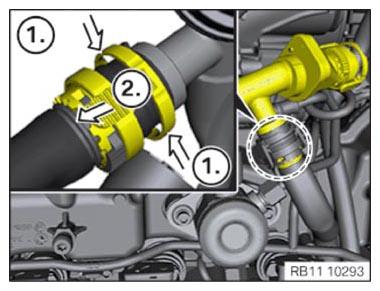

Version 1:

1. Unlock the retainer.
2. Pull off the retainer together with the line.
   Fig 14: Unlocking Retainer And Pulling Off Engine Ventilation Line

   Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

Pull the line (1) gently in the direction indicated by the arrow.

At the same time, use a screwdriver (3) to unlock the latch mechanisms (2) one after the other.

Pull the connecting line off the clean air pipe and engine crankcase ventilation line.

Fig 15: Unlocking Latch Mechanisms And Pulling Off Engine Ventilation Line

Courtesy of BMW OF NORTH AMERICA, INC.

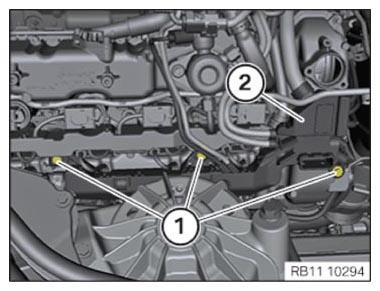

Release screws (1).

Tightening torque 12 51 2AZ .

Lift the engine wiring harness (2) slightly and remove the crankcase ventilation line.

Fig 16: Identifying Engine Wiring Harness And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
